Machine-data
Stock no. | 1073-34179 |
Category | Section Steel Shear |
Make | PEDDINGHAUS |
Type | Peddimax 801 |
Year | |
Control | conventional |
Storage location | EXW- ex works |
Origin | Germany |
Delivery time | immediately |
Quotation | EXW- ex works (free on Truck) |
Price | |
Technical details
pressure | 080 t |
punching cross-cut in cmm | 31,0 in 25 mm |
shear: flat material | 500x18 / 300x22 mm |
L-beam | 150 x 12 mm |
round bar steel | 50 + 25 mm |
square edge steel | 50 + 30 mm |
throat | 510 mm |
blade length | 500 mm |
work height max. | ca. 1.100 mm |
total power requirement | 7,5 kW |
weight of the machine ca. | 3200 kg |
dimensions of the machine ca. | 2000 x 1000 x 2100 mm |
** from a maintenance workshop
Furnishing:

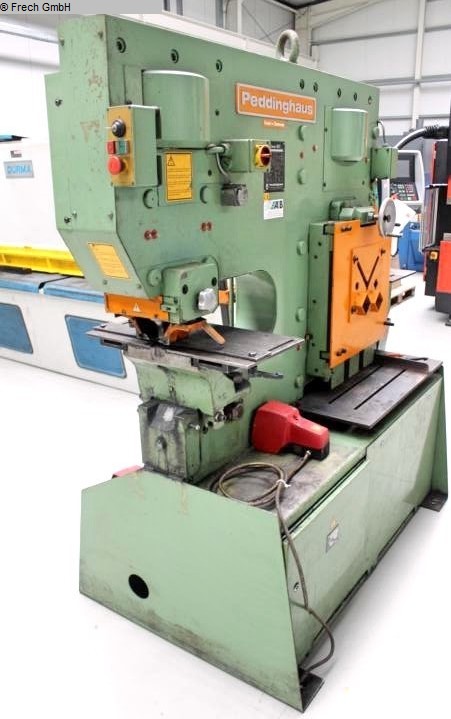

- Robust electro-hydraulic combined profile steel shears

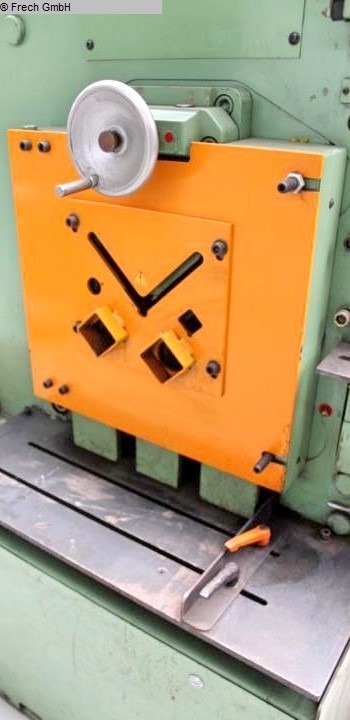

- Notcher, hole punch, bar steel knife, profile knife and tin snips
- Stop table at the hole punch, with blank holder

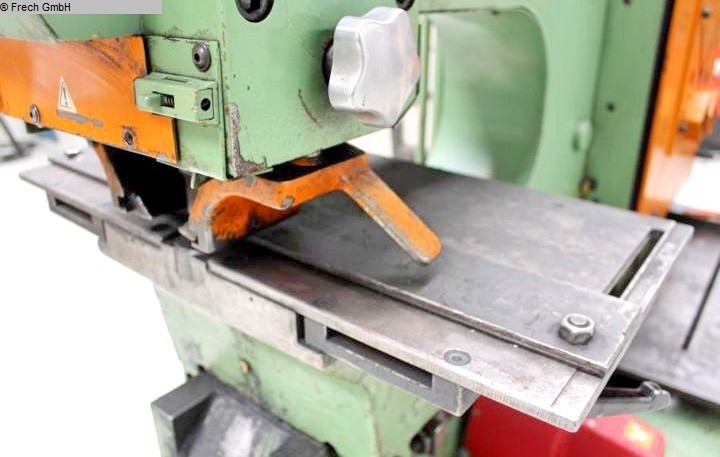

- Stop table at the notcher
- 2x floating footswitches
- Stroke adjustment for fast stroke sequence

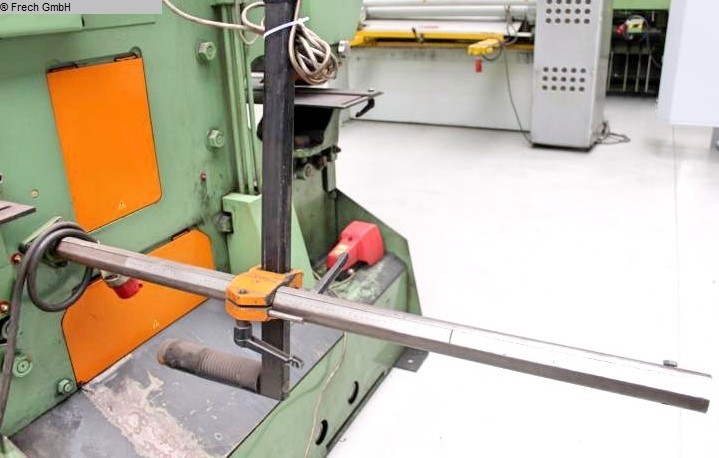

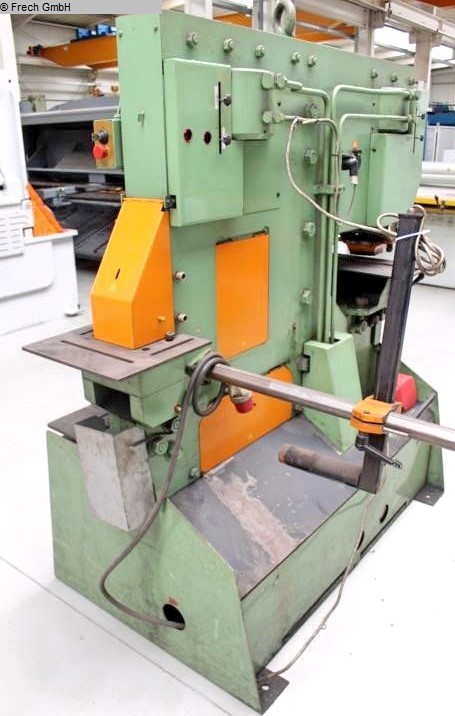

- 1x PEDDINGHAUS contact length stop: 1.000 mm

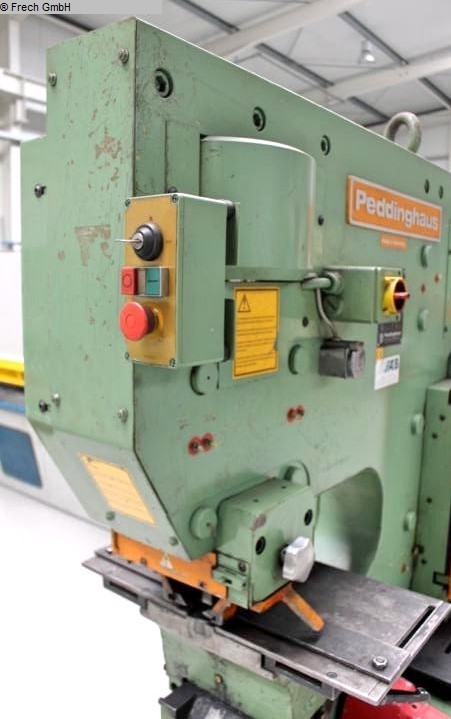

- Safety devices
- Operating instructions in German
Documents
no documents available
