Machine-data
| Stock no. | 1073-97062 |
| Category | Hydr. pressbrake |
| Make | KINGSLAND |
| Type | KPT 1640 |
| Year | 2000 |
| Control | conventional |
| Storage location | EXW- ex works |
| Origin | England |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 040 t |
| chamfer lenght | 1600 mm |
| distance between columns | 1100 mm |
| stroke of upper beam | 100 mm |
| throat | 195 mm |
| working feed | 10.0 mm/sec |
| return speed | 70.0 mm/sec |
| work height max. | 840 mm |
| table width | 110 mm |
| dayligth | 295 mm |
| Control | ATL 550 |
| total power requirement | 5.5 kW |
| weight | 2500 kg |
| range L-W-H | 2100 x 1200 x 1800 mm |
Equipment:
- NC-controlled hydraulic press brake, with torsion shaft

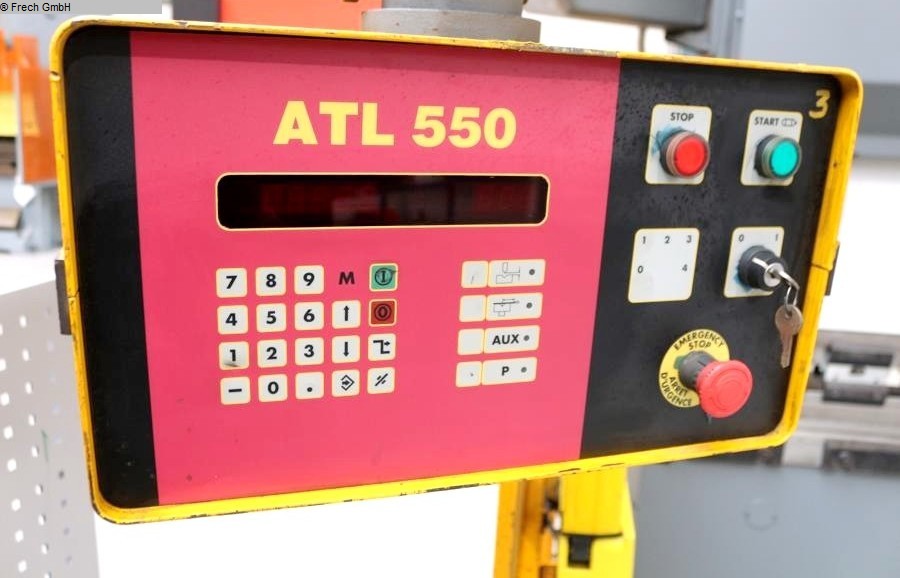

- with ATLANTIC NC control - model "ATL 550"
* Positioning of the backgauge (X axis)
* Positioning of the depth adjustment (Y1 Y2 axis)
* Possibility of programming different programs
* Memory capacity max. 200 programs - max. 400 blocks
* Swivel control panel, left front

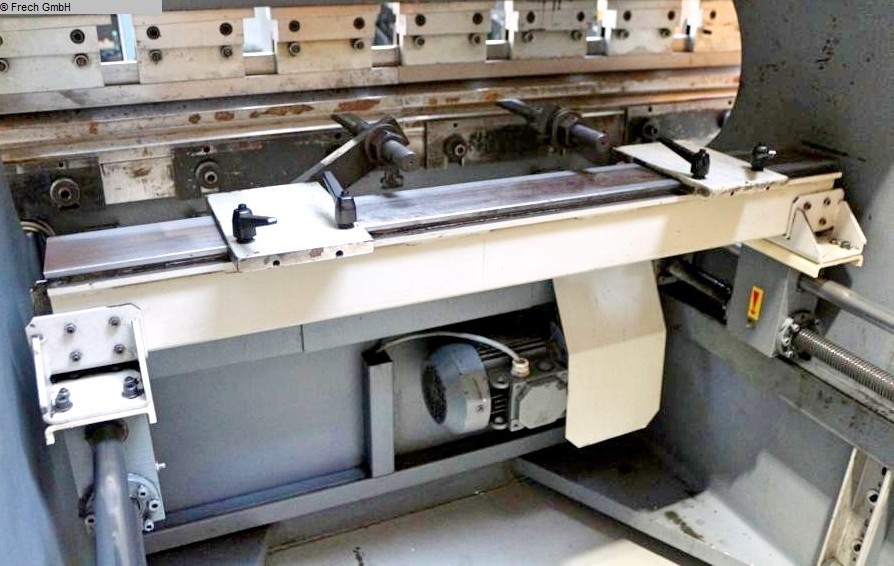

- Electro-motorized backgauge (X axis)
* with 2x stop fingers, manually adjustable (R Z axis)

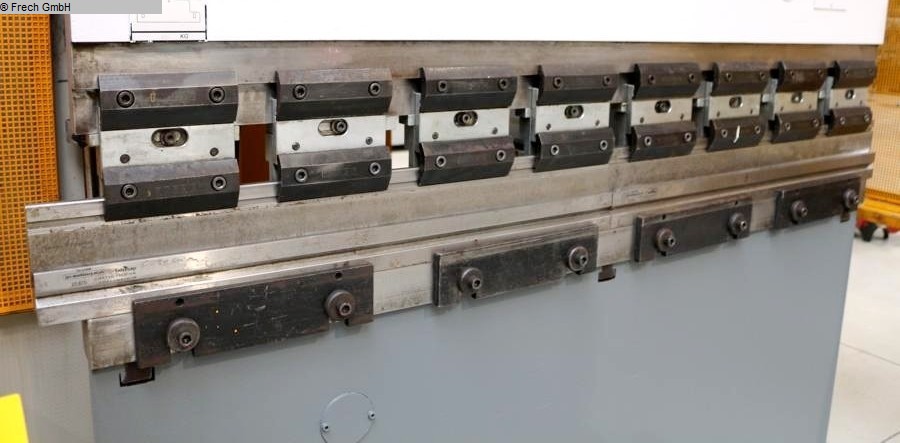

- Tool holder system A - with top wedge crowning
- Split insert/bending tools
- Lateral safety guards

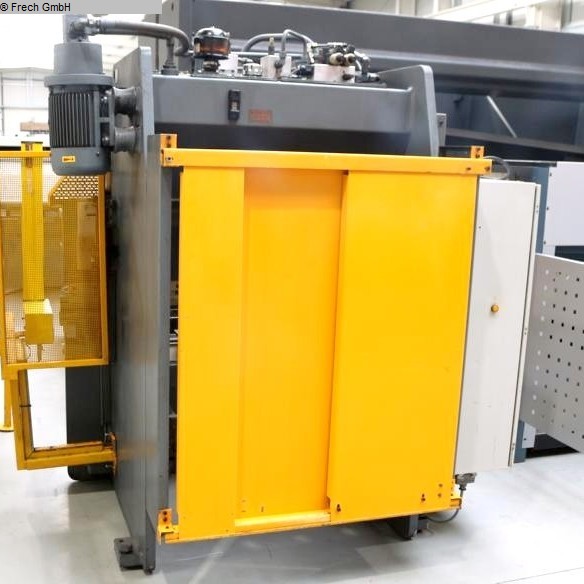

- rear safety guard
- 1x freely movable double foot switch
- Operating instructions (PDF)
