Machine-data
| Stock no. | 1073-97061 |
| Category | Hydr. pressbrake |
| Make | BAYKAL |
| Type | APH 1254 x 35 |
| Year | 2009 |
| Control | NC |
| Storage location | EXW- ex works |
| Origin | Turkey |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 035 t |
| chamfer lenght | 1250 mm |
| distance between columns | 1070 mm |
| piston stroke | 150 + 60 mm |
| column arm | 410 mm |
| table height | 800 mm |
| dayligth | 470 mm |
| working feed | 10.0 mm/sec |
| return speed | 70.0 mm/sec |
| table width | 140 mm |
| Control | ELGO NC |
| Number of working hours | ~ 9.600 h |
| oil volume | 80.0 l |
| operating pressure | max. 240 bar |
| voltage | 380 V |
| total power requirement | 4.0 kW |
| weight | 2200 kg |
| range L-W-H | 1800 x 1450 x 2150 mm |
** Well maintained condition
** With only approx. 9.600 operating hours (!!)
Features:
- Robust NC-controlled hydraulic press brake

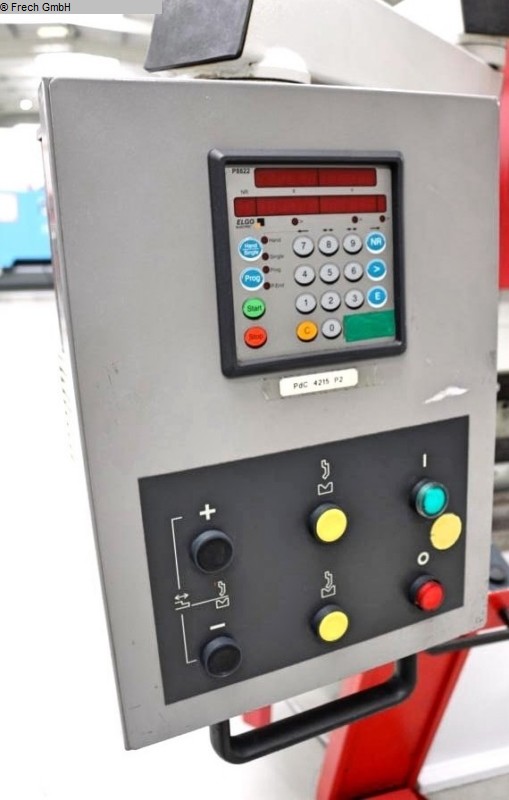

- With ELGO NC control unit P8822
* Positioning of the backgauge (X axis)
* Positioning of the depth adjustment (Y1+Y2 axis)

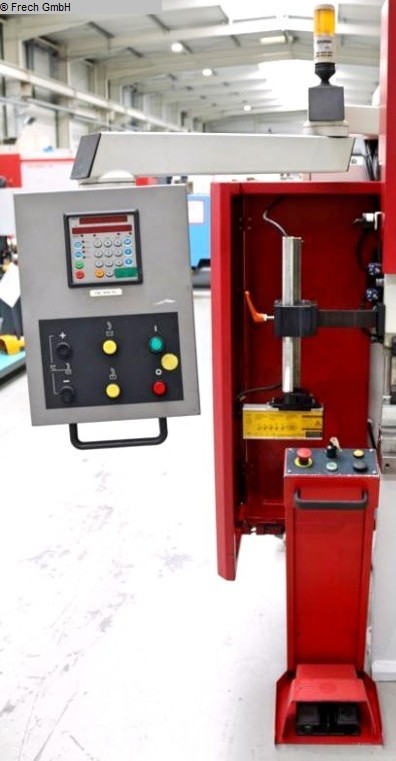

* Swiveling control panel, front left

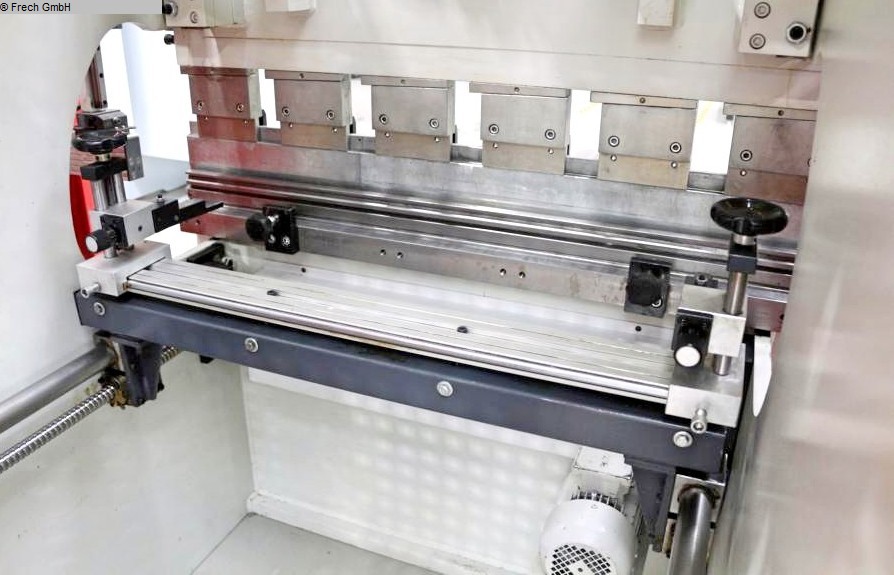

- NC electric motorized backgauge (X axis)
* With 2x stop fingers, manually adjustable (R+Z axis)

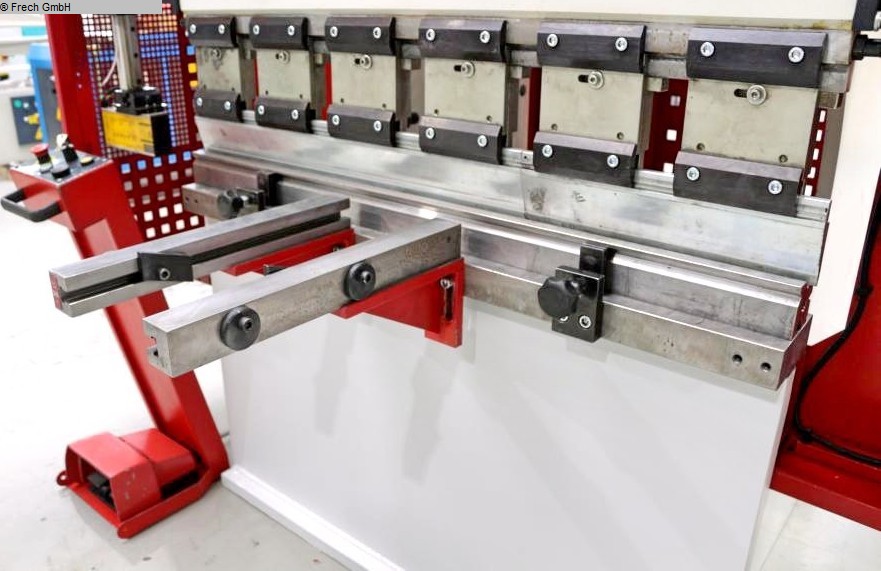

- 1x split set of pointed tools - top
- 1x rotatable Multi-V die block
- Side safety device (swivel doors)
+ FIESSLER laser safety device

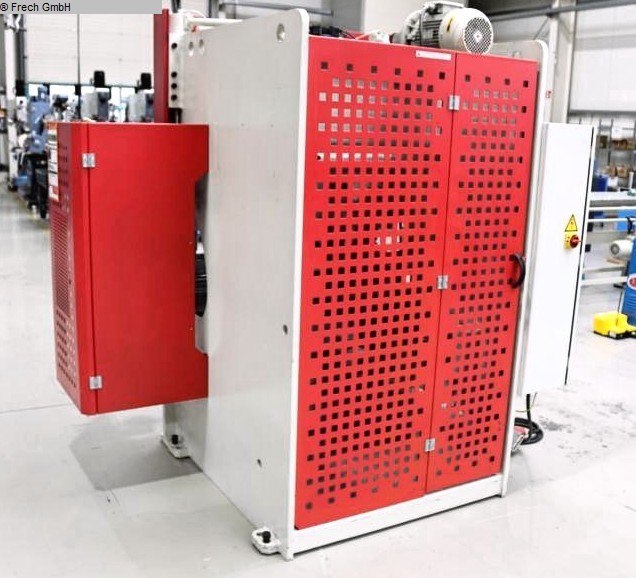

- Rear safety device (swivel door)
- 1x freely movable double foot switch
- 2x front support arms
- Operating instructions (ENG)
Documents
no documents available
