Machine-data

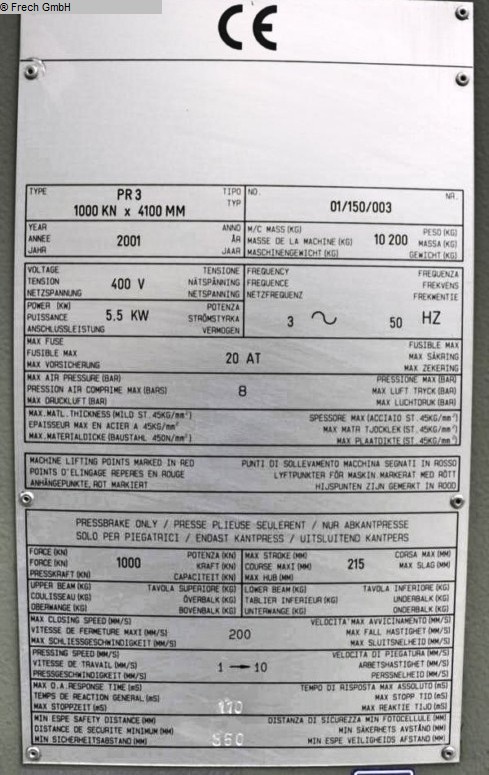

| Stock no. | 1073-97060 |
| Category | Hydr. pressbrake |
| Make | BEYELER |
| Type | PR 3 1000 KN x 4100 MM |
| Year | 2001 |
| Control | CNC |
| Storage location | EXW- ex works |
| Origin | Switzerland |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 100 t |
| chamfer lenght | 4100 mm |
| distance between columns | 3700 mm |
| column arm | 415 mm |
| stroke | max. 215 mm |
| dayligth | 410 mm |
| ajustment speed | 200 mm/sec |
| working feed | 10.0 mm/sec |
| return speed | 150 mm/sec |
| work height max. | 1080 mm |
| table width | 100 mm |
| Control | CYBELEC |
| oil volume | 160 ltr. |
| voltage | 400 V |
| power capacity | 8.5 kW |
| weight | 10200 kg |
| range L-W-H | 4800 x 1800 x 2600 mm |
Equipment:
- BEYELER electro-hydraulic CNC press brake

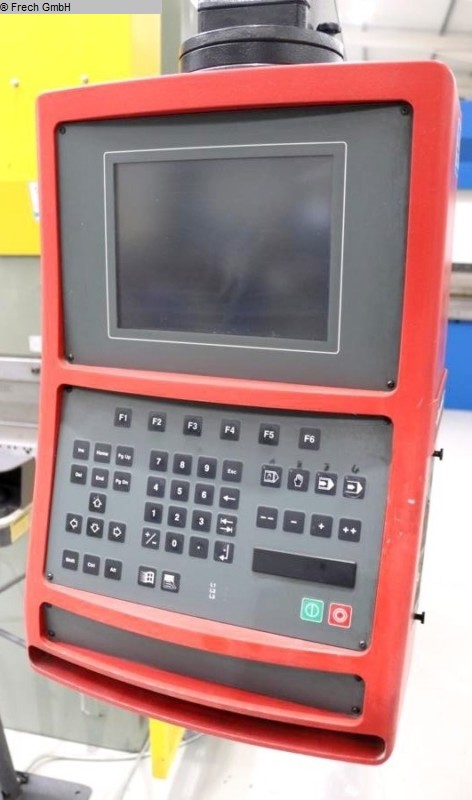

- CNC CYBELEC control unit DNC 1200 PS/B
* High-resolution screen
* Clear, concise menus in the operator's language
* Tool and product library
* Swiveling control panel, front right
- CNC-controlled axes (Y1+Y2-X)
- CNC-controlled backgauge adjustment (X-axis)
* 2x manually adjustable stop fingers
- Manual upper tool clamping
- Manual lower tool clamping

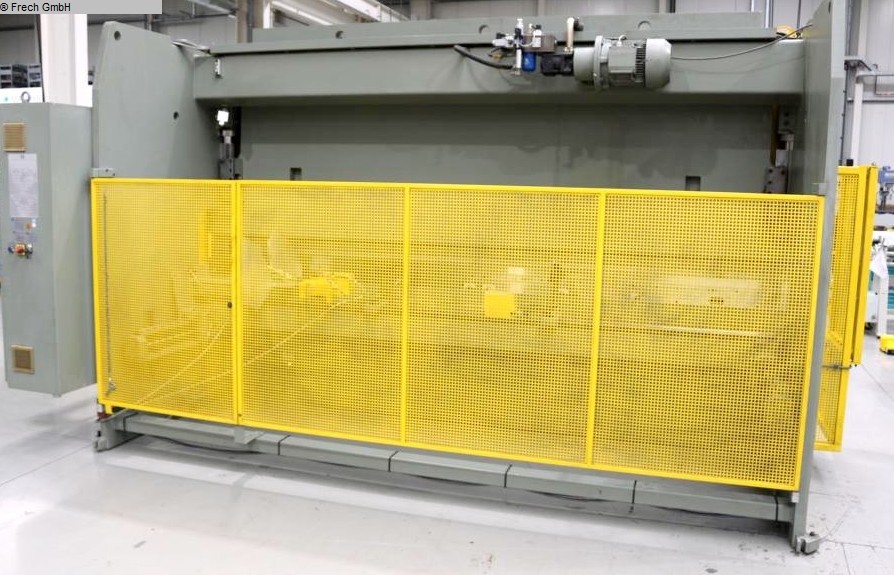

- Rear safety device (safety door)
- Side safety device (safety doors)

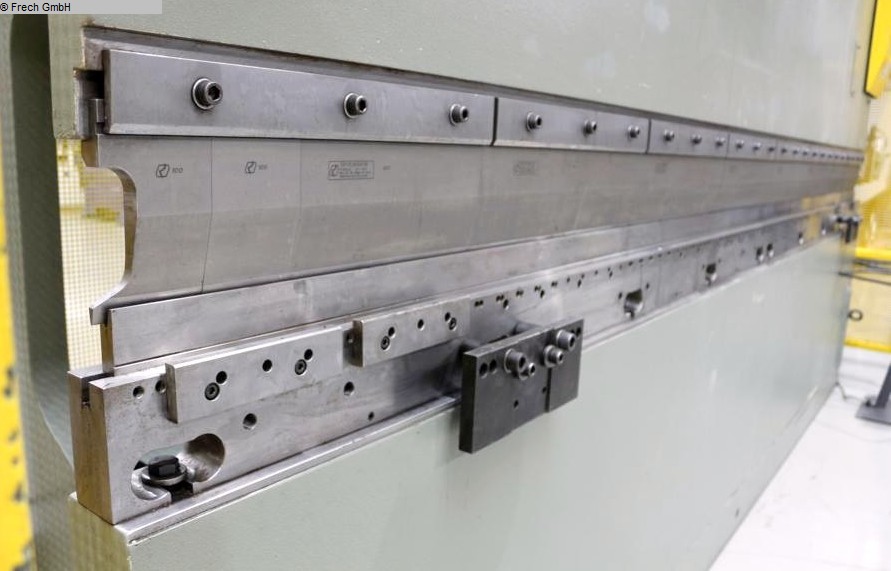

- Bending tools
* 1x set of split upper tools (ROLLERI TOP 175.26.R08)
* 1x set of split 1V dies (V 12 mm)
- 2x freely movable 2-hand controls
- 2x freely movable foot switches
- Operating instructions for control system
Documents
no documents available
