Machine-data
| Stock no. | 1073-97059 |
| Category | Hydr. pressbrake |
| Make | DURMA |
| Type | HAP 30.160 |
| Year | 2008 |
| Control | NC |
| Storage location | EXW- ex works |
| Origin | Turkey |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 160 t |
| chamfer lenght | 3050 mm |
| distance between columns | 2550 mm |
| stroke of upper beam | 175 mm |
| dayligth | 240 mm |
| throat | 350 mm |
| working feed | 9.0 mm/sec |
| return speed | 86.0 mm/sec |
| work height max. | ca. 920 mm |
| Control | ERD 110 M |
| oil volume | 150 l |
| total power requirement | 15.0 kW |
| weight | 9300 kg |
| range L-W-H | 4250 x 2170 x 2800 mm |
Features:
- NC electro-hydraulic press brakes

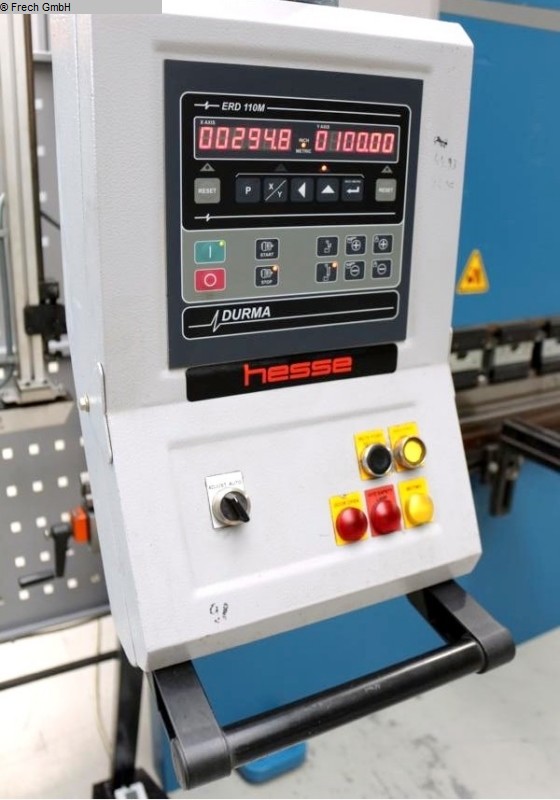

- with DURMA NC control "ERD 110M"
* Illuminated LCD display
* X-axis control & value display
* Y-axis control & value display
- Swiveling operator panel, front left
- NC controlled axes: Y1/Y2 + X
- NC electro-motorized backgauge (X-axis)
* with 2x manually adjustable stop fingers
* including lateral and height adjustment (Z+R axes)
- NC electro-motorized depth adjustment (Y-axis)
- Manual bending table crowning
* Adjustment via hand crank
* with analog value display

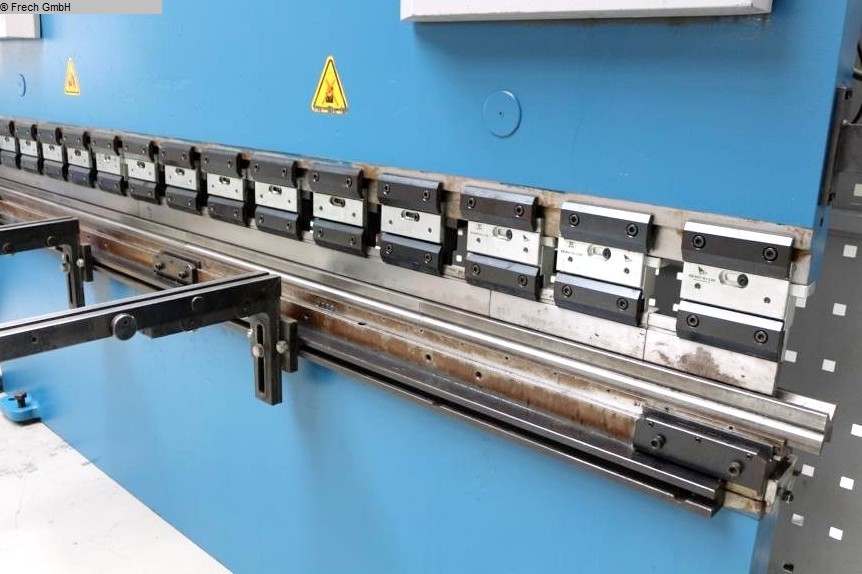

- AMADA/PROMECAM upper tool holder
* with upper wedge crowning & quick-change adapter
* Split deer foot upper tool (AMADA)

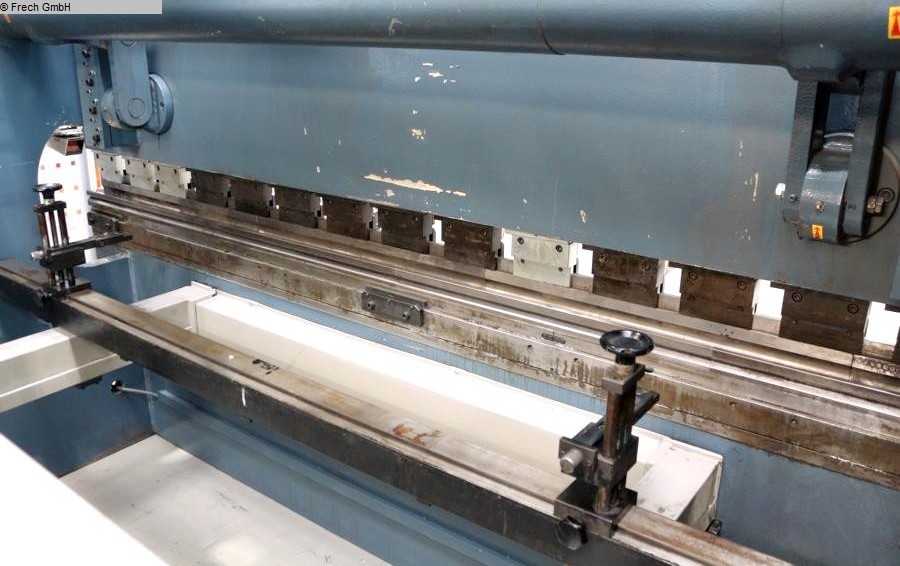

- AMADA/PROMECAM lower tool holder
* Split 4V universal die, in die shoe
- 2x front Laying arms
- Side guard (swinging doors)

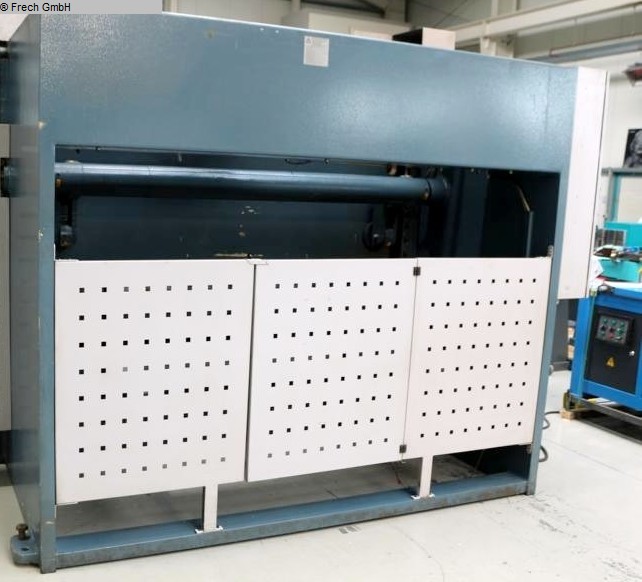

- Rear guard (swinging door)
- LAZER SAFE safety device (not functional)
- 1x freely movable foot switch
- Operating instructions (PDF)
Documents
no documents available
