Machine-data
| Stock no. | 1073-97058 |
| Category | Hydr. pressbrake |
| Make | DURMA |
| Type | HAP 30.120 |
| Year | 1998 |
| Control | NC |
| Storage location | EXW- ex works |
| Origin | Turkey |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 120 t |
| chamfer lenght | 3050 mm |
| distance between columns | 2550 mm |
| stroke of upper beam | 155 mm |
| throat | 350 mm |
| ajustment speed | 100 mm/sec |
| working feed | 9.0 mm/sec |
| return speed | 77.0 mm/sec |
| Control | "P 40" |
| work height max. | 878 mm |
| table width | 104 mm |
| oil volume | 150 l |
| total power requirement | 11.0 kW |
| weight | 7550 kg |
| range L-W-H | 3550 x 2150 x 2600 mm |
Equipment:
- NC electro-hydraulic press brakes
- with NEW ELGO NC control unit "P40"
* New price approx. 4.000 Euro
* Control / movement of the backgauge - X axis (target/actual input)
* Control / movement of the depth setting - Y axes (target/actual input)
* Inching mode for X axis Y axes also possible
- Swivel operation, front left
- NC controlled axes : Y1 Y2 X

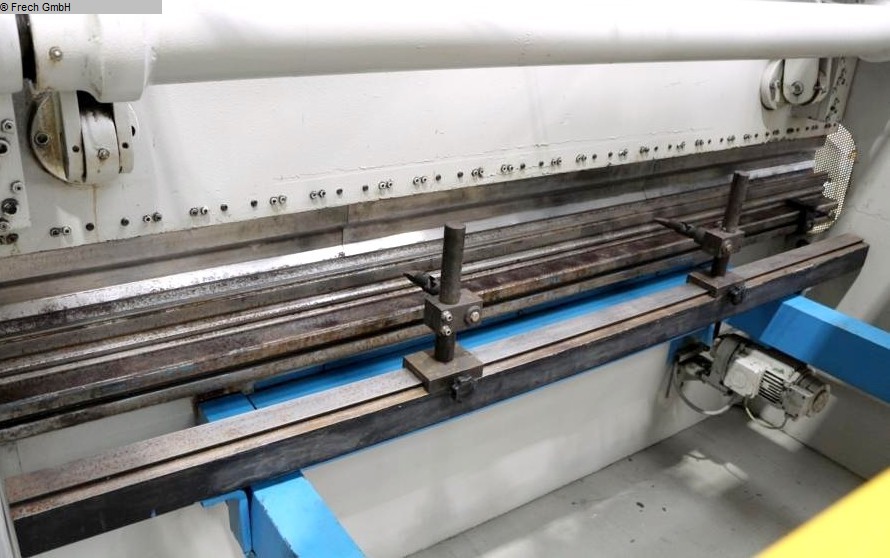

- NC electro-motorized backgauge (X axis)
* with 2x manually adjustable stop fingers
* including lateral and height adjustment (Z R axis)

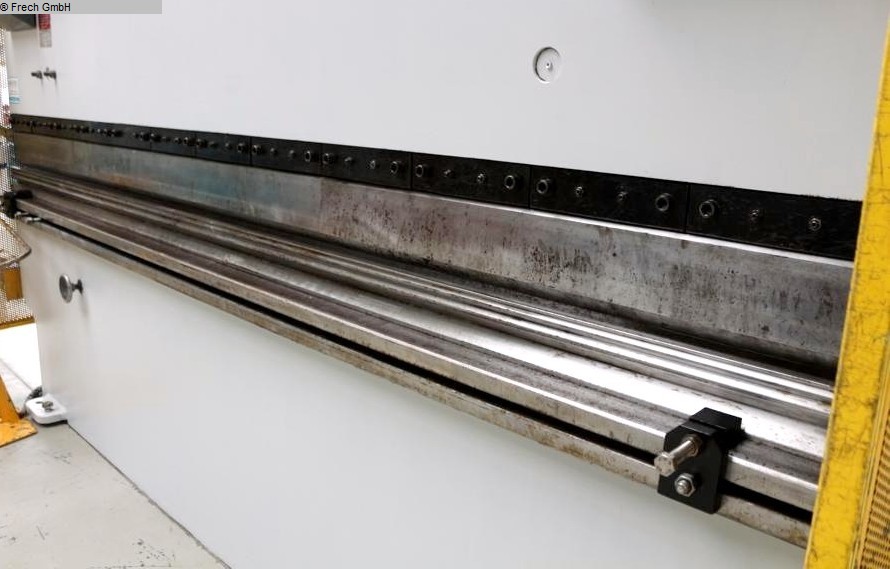

- 1x branded set of upper tools (split)
- 1x branded Multi-V bottom die block
- Lateral safety guard (hinged doors)

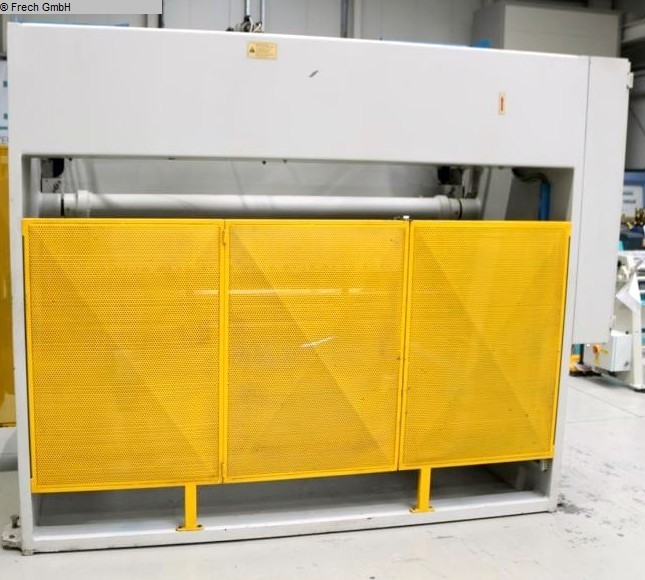

- Rear safety guard (hinged door)
- 1x free-moving 2-hand/foot control
- Operating instructions (PDF)
