Machine-data
| Stock no. | 1073-97057 |
| Category | Hydr. pressbrake |
| Make | EHT |
| Type | ECOPRESS 135-30 |
| Year | 2001 |
| Control | CNC |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 135 t |
| chamfer lenght | 3050 mm |
| distance between columns | 2550 mm |
| dayligth | 320 - 560 mm |
| stroke | 240 mm |
| working feed | 10.0 mm/sec |
| return speed | 150 mm/sec |
| column arm | 400 mm |
| work height max. | 1050 mm |
| control | DNC 1200 PS/B |
| operating pressure | max. 297 bar |
| compressed air | 4.5 - 6.0 bar |
| connected load | 15.0 kW |
| oil volume | 250 ltr. |
| weight | 11500 kg |
| range L-W-H | 5240 x 2400 x 2900 mm |
** good/well-Maintained conditions
** used in Aluminum processing
Features:
- CNC Electro-Hydraulic Press Brake

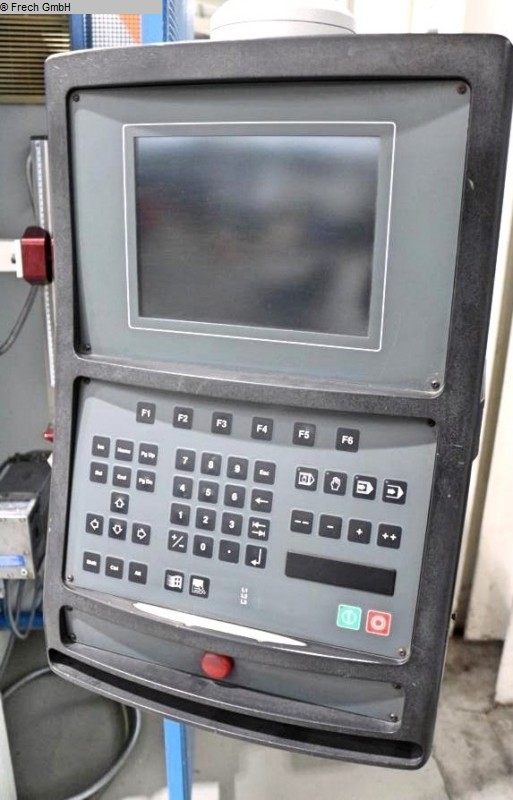

- CYBELEC CNC Control Model DNC 1200 PS/B
* Swiveling Control Panel, Front Right
* Numerical Programming
* Tool & Program Library
- CNC Controlled Axes: Y1 + Y2 + X + R + CNC Crowning

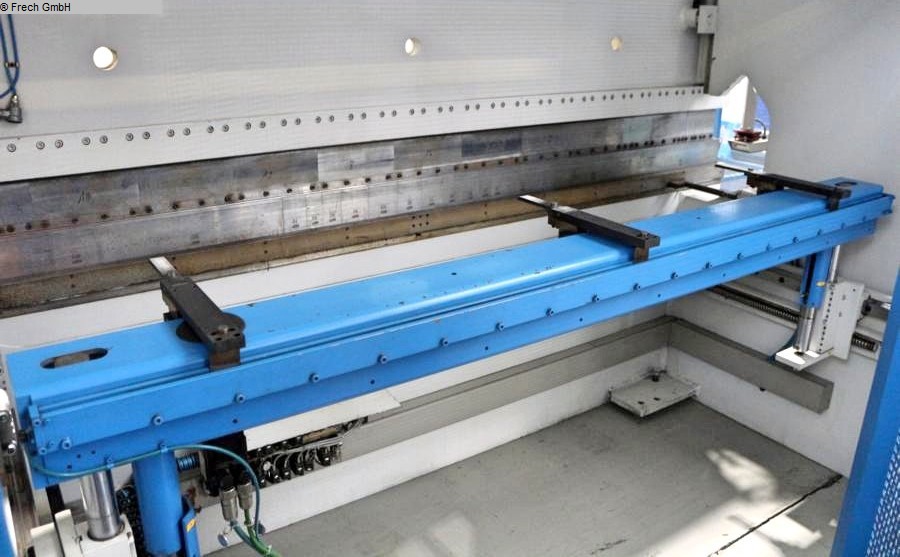

- CNC Electro-Motorized Backgauge (X-Axis)
* with 3x Manually Adjustable Backgauge Fingers (Z-Axis)
* Maximum Travel Speed: 250 mm/sec
- CNC electro-motorized height adjustment from the backgauge (R-axis)
* Maximum travel speed: 100 mm/sec.
- CNC under-table crowning
- CNC pneumatic die shifting (I-axis)
- Pneumatic upper tool clamping
- Pneumatic lower tool clamping
- Rear safety guard, including swiveling door
- 2x side safety guards
- includes LAZER SAFE safety device - front

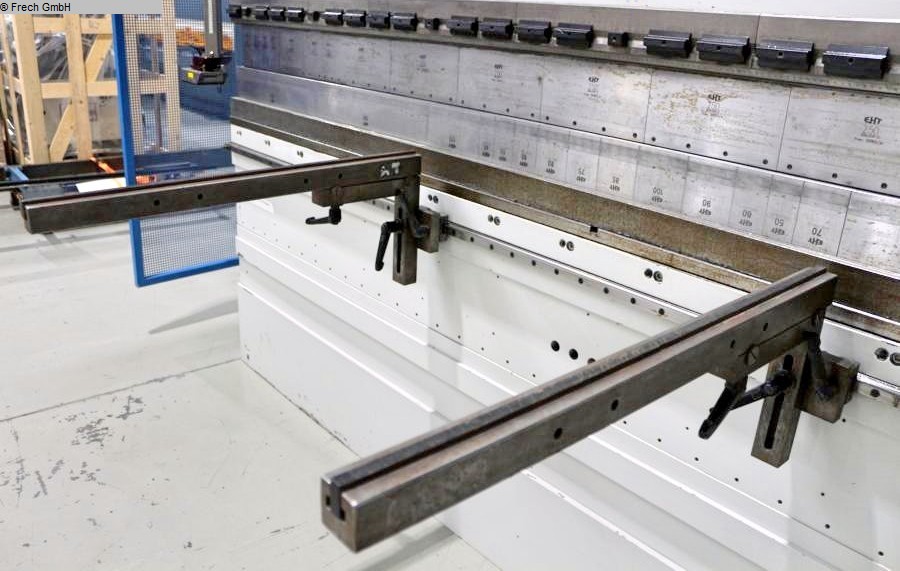

- 2x stable front support arms with sliding system

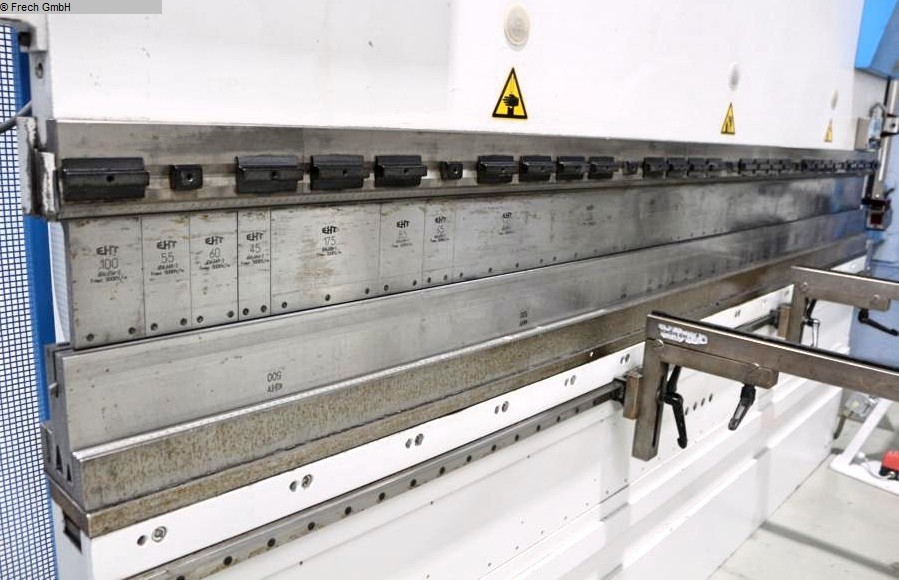

- original EHT split upper and lower tools

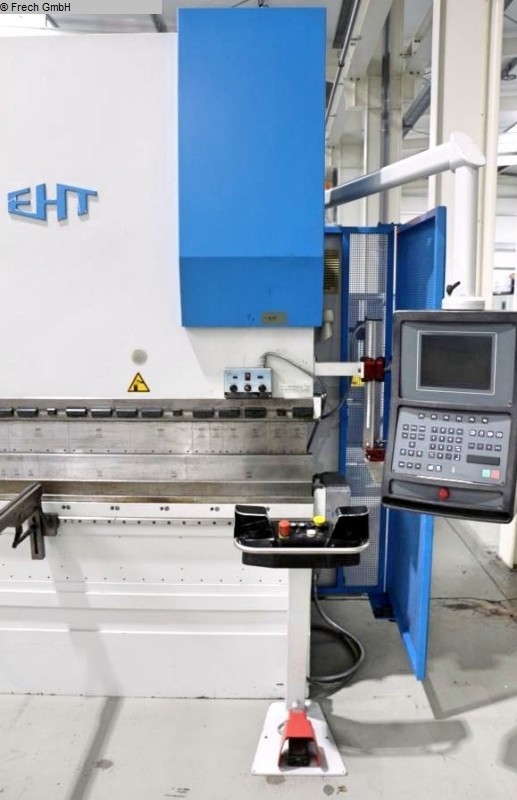

- 1x freely movable 2-hand/foot control

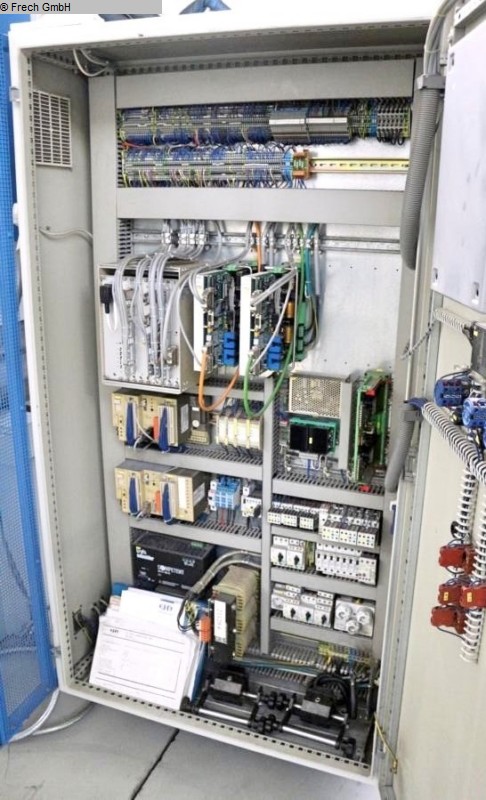

- Wiring diagram + hydraulic diagram
Documents
no documents available
