Machine-data
| Stock no. | 1073-97050 |
| Category | Hydr. pressbrake |

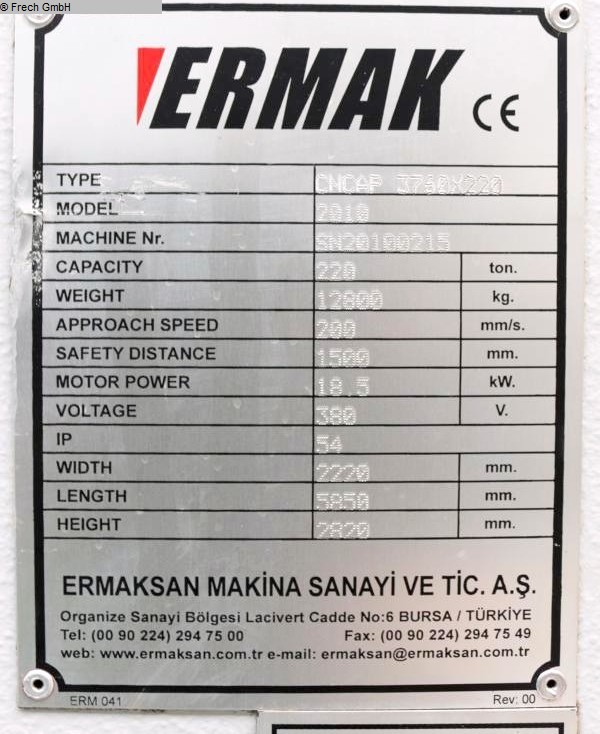

| Make | ERMAK |
| Type | CNC AP 37.220 |
| Year | 2010 |
| Control | CNC |
| Storage location | 48683 Ahaus |
| Origin | Deutschland |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 220 t |
| chamfer lenght | 3720 mm |
| distance between columns | 3020 mm |
| column arm | 400 mm |
| ajustment speed | 125 mm/sec |
| working feed | 10.0 mm/sec |
| return speed | 132 mm/sec |
| back stop - adjustable | 800 mm |
| stroke | 275 mm |
| dayligth | 550 mm |
| table height | 900 mm |
| oil volume | 300 ltr. |
| total power requirement | 18.5 kW |
| weight of the machine ca. | 12800 kg. |
| range L-W-H | 5850 x 2220 x 2820 mm |
** Good condition
** Current new price approx. 100.000 euros
** Special price on request
Features:

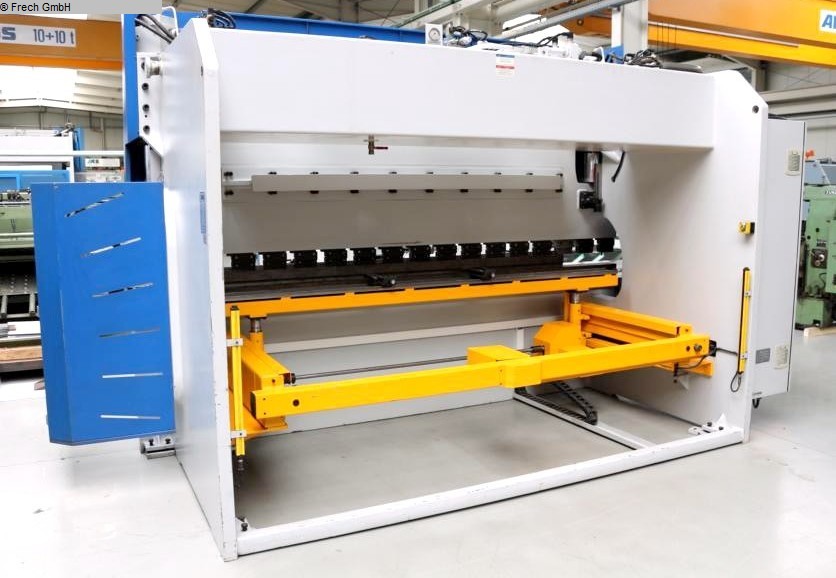

- Electro-hydraulic CNC press brake

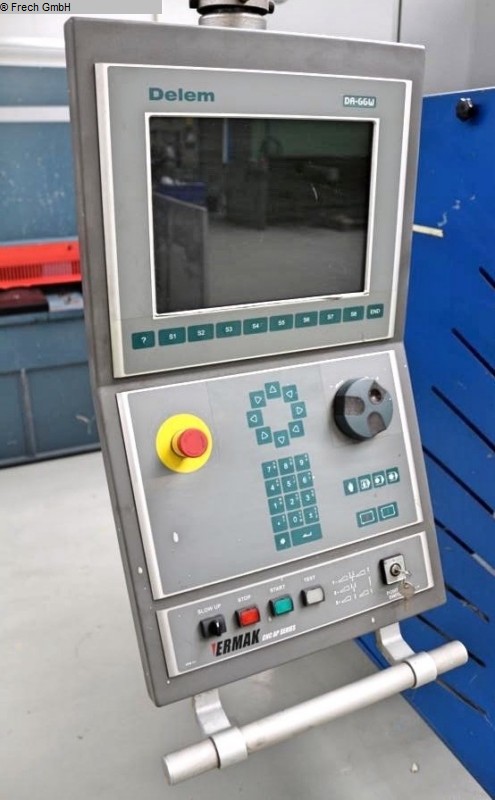

- With DELEM CNC control model DA 66W
* 2D graphic programming
* Automatic bend sequence calculation and collision detection
* High-quality color LCD screen (TFT)
- Swivel control panel, front left
- CNC-controlled axes: Y1 + Y2 + X + R + crowning

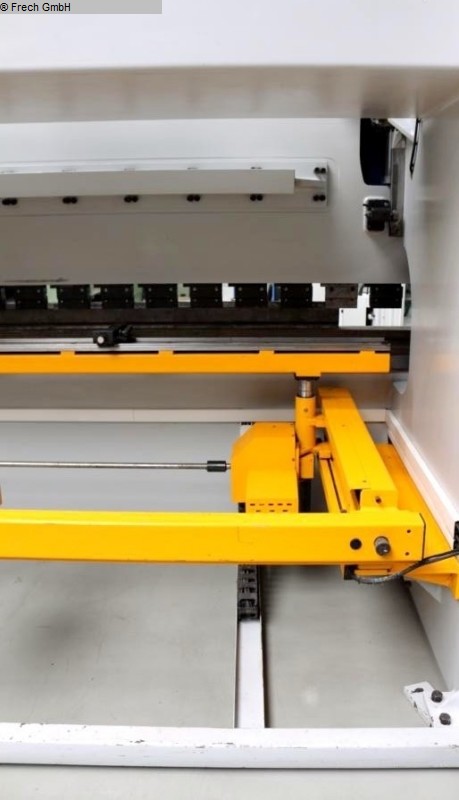

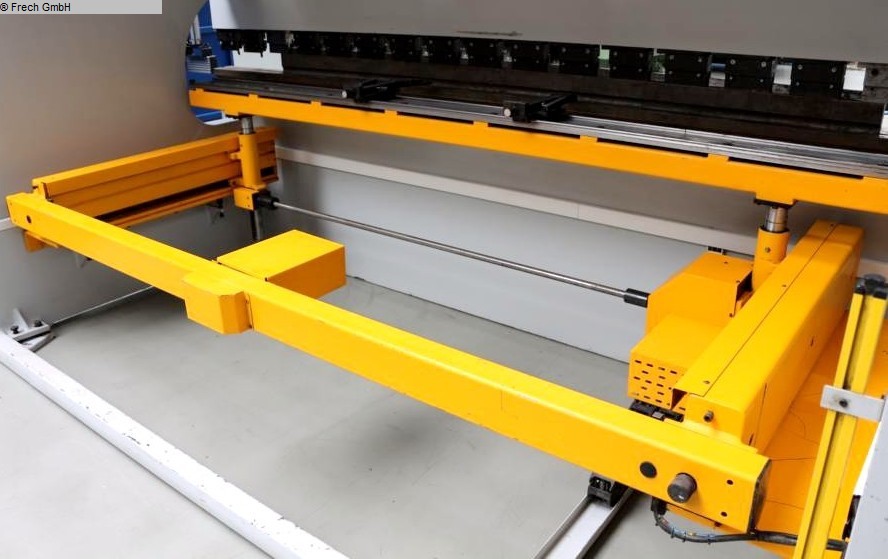

- CNC electric motor-driven backgauge (X axis)
- CNC electric motor height adjustment of the backgauge (R axis)
- CNC electric motor-driven bending table crowning
- 2x manually adjustable stop fingers
- AMADA/PROMECAM upper tool holder
- 1x reversible MULTI-V die block
- 2x front sliding support arms (sliding system)
- Side guard
* Swivel doors + FIESSLER laser safety device
- Rear safety device (light barrier)
- 1x freely movable foot control
- Original operating instructions
* Special accessories included in delivery:
- 1x NEW complete upper tool set - split (currently not installed)
* ROLLERI PS.135.85.R08
* Height 135 mm / 85 degrees / R 0.8 mm
