Machine-data
| Stock no. | 1073-97048 |
| Category | Hydr. pressbrake |
| Make | TRUMPF |
| Type | TRUMABEND V 170 |
| Year | 1997 |
| Control | CNC |
| Storage location | |
| Origin | Austria |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 170 t |
| chamfer lenght | 4080 mm |
| distance between columns | 3680 mm |
| column arm | 410 mm |
| dayligth | 385 mm |
| stroke | 215 mm |
| ajustment speed | 200 mm/sec |
| working feed | 1-10 mm/sec |
| return speed | 135 mm/sec |
| table width | 200 mm |
| table height | 1050 mm |
| Number of working hours | 25.430 h |
| oil volume | 350 l |
| total power requirement | 29 KVA |
| weight of the machine ca. | 16.450 kg. |
| range L-W-H | 4620 x 2210 x 2885 mm |
** Machine in good condition
** Regularly serviced by the manufacturer
** CNC backgauge with 8 axes (!!)
Equipment:
- CNC electro-hydraulic press brake/die bending press

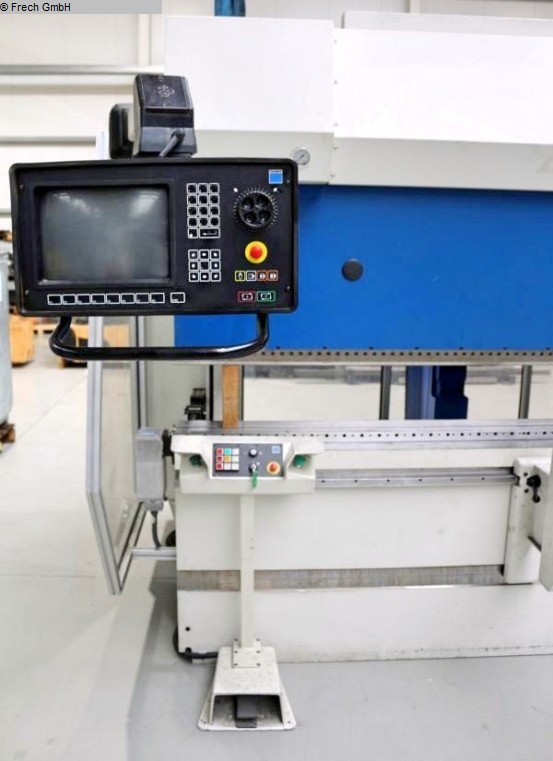

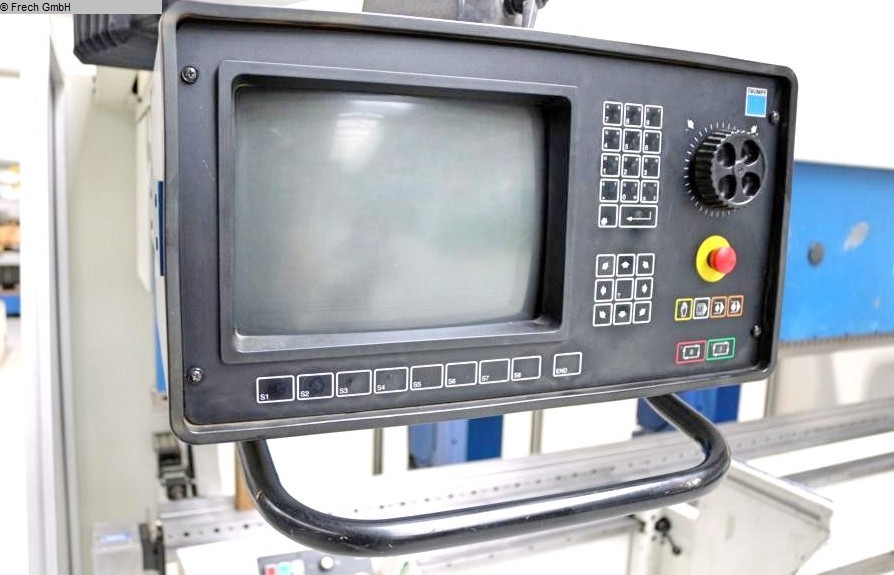

- DELEM CNC control - swiveling front left
* High-resolution graphic screen
* Clear, concise menus in the operator's language
* Large tool and product library
* Graphic 2D programming
* Automatic bend sequence calculation and collision detection
* Emergency stop button at front

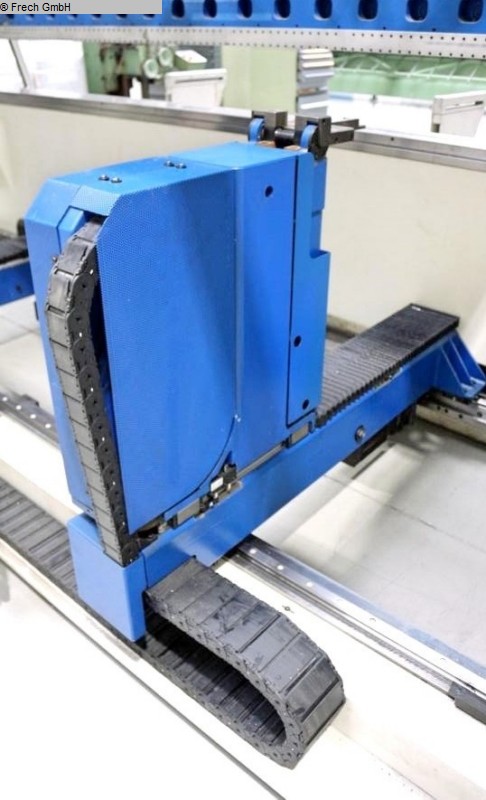

- CNC axis adjustment:
* Y1 - Y2 - X1 - X2 - R1 - R2 - Z1 - Z2 axis + CNC crowning
- X axis - adjustment speed: 500 mm/sec.
* Max. stop range: 860 mm
- R axis - Adjustment speed: 300 mm/sec.
* Max. travel: 250 mm
- Z axis - Adjustment speed: 1000 mm/sec.
* Max. travel: 3260 mm

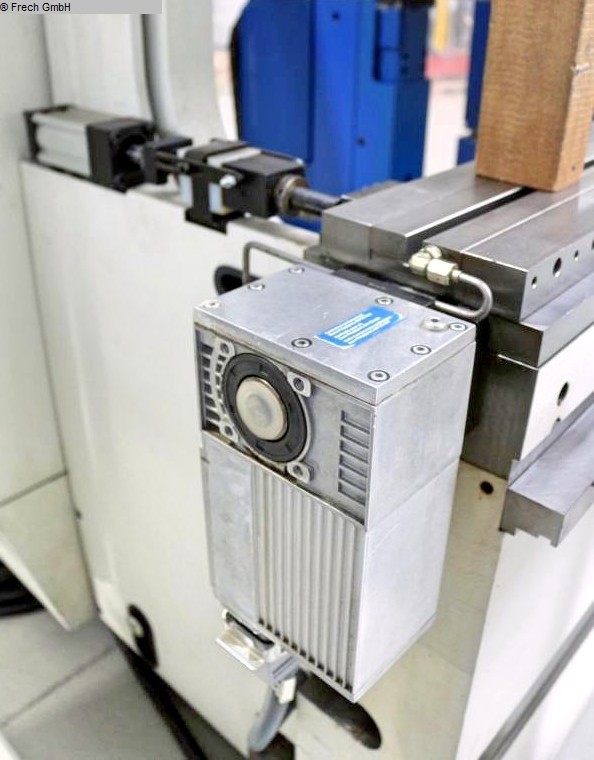

- CNC electric motor table crowning
- CNC electro-pneumatic die shift (I axis)
- WILA / TRUMPF upper tool clamping - hydraulic
- WILA / TRUMPF lower tool clamping - hydraulic
- 2x front, robust support arms - movable
- 1x freely movable 2-hand/foot control
- 1x freely movable foot switch
- Side safety device (swivel doors)

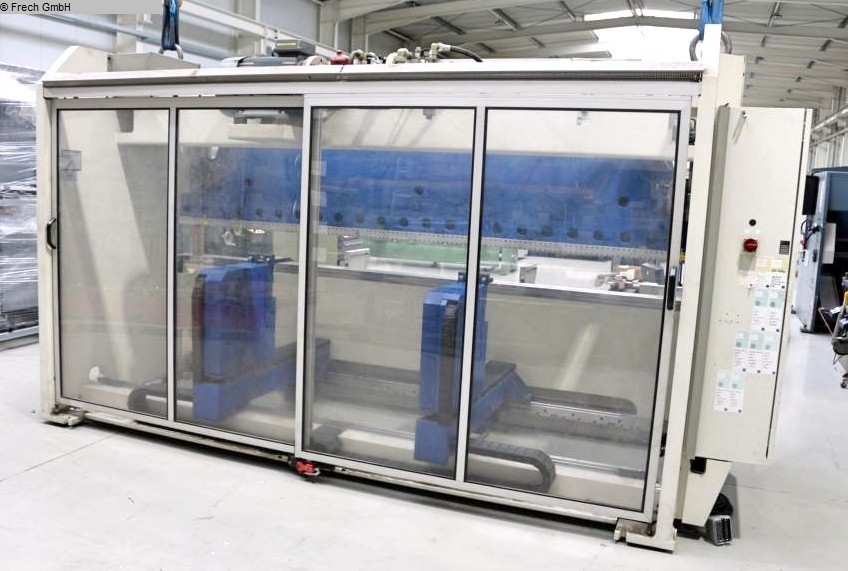

- Rear safety device (sliding doors)
- Original operating instructions
Documents
no documents available
