Machine-data
| Stock no. | 1073-97047 |
| Category | Hydr. pressbrake |
| Make | BAYKAL |
| Type | APH-S 3110x180 |
| Year | 2008 |
| Control | CNC |
| Storage location | |
| Origin | Turkey |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 180 t |
| chamfer lenght | 3110 mm |
| distance between columns | 2600 mm |
| column arm | 410 mm |
| ajustment speed | 100 mm/sec |
| working feed | 10.0 mm/sec |
| return speed | 80.0 mm/sec |
| back stop - adjustable | max. 750 mm |
| stroke | 260 mm |
| dayligth | 460 mm |
| table height | 880 mm |
| oil volume | 210 ltr. |
| operating pressure | max. 240 bar |
| control | DELEM |
| total power requirement | 15.0 kW |
| weight of the machine ca. | 11.200 kg. |
| range L-W-H | 4250 x 2000 x 2800 mm |
** Current new price approx. 85.000 euros
** Special price on request
Features:
- Electro-hydraulic CNC press brake

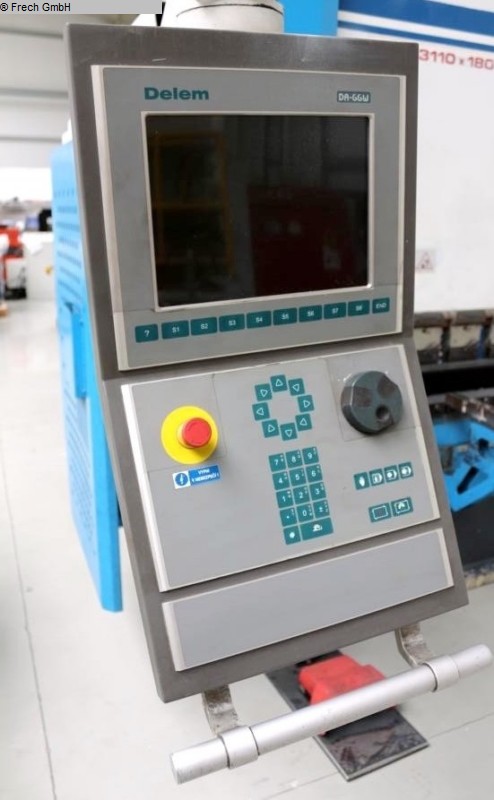

- With DELEM CNC control model DA 66W
* 2D graphic programming
* Automatic bend sequence calculation and collision detection
* High-quality LCD screen (TFT)
* Swivel control panel, front left
- CNC-controlled axes: Y1 + Y2 + X + R + CNC crowning

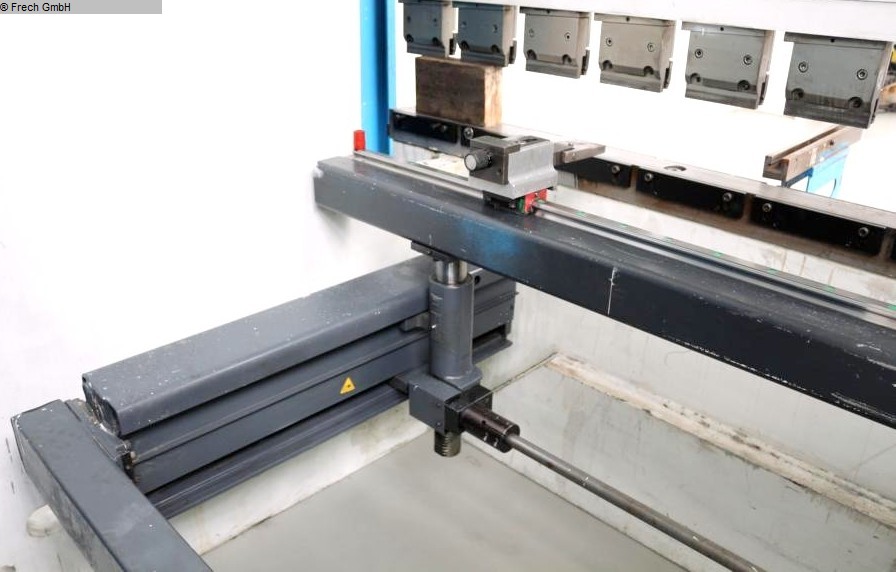

- CNC electric motor-driven backgauge (X axis)

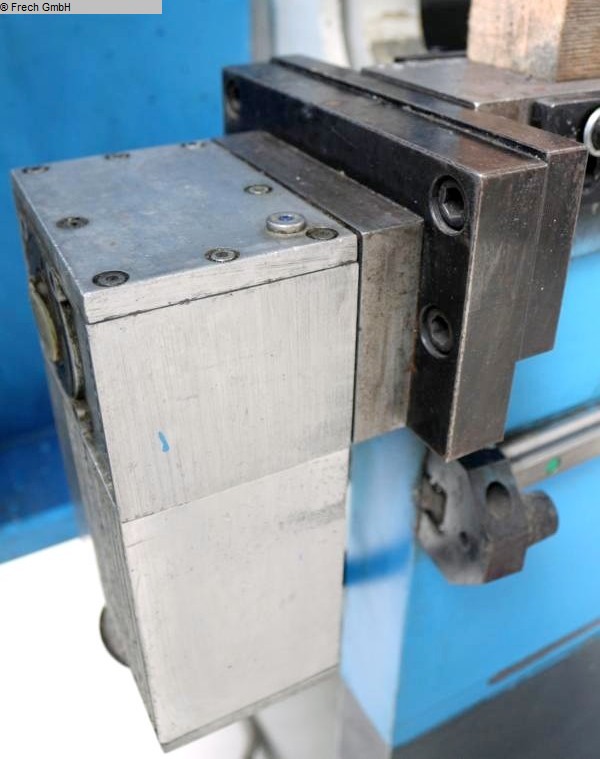

* with 2x manually adjustable stop fingers
- CNC electric motor height adjustment of the backgauge (R axis)
- CNC electric motor table crowning
- ROLLERI upper tool adapter (quick-change clamping)
* including crowning device in the tool holder

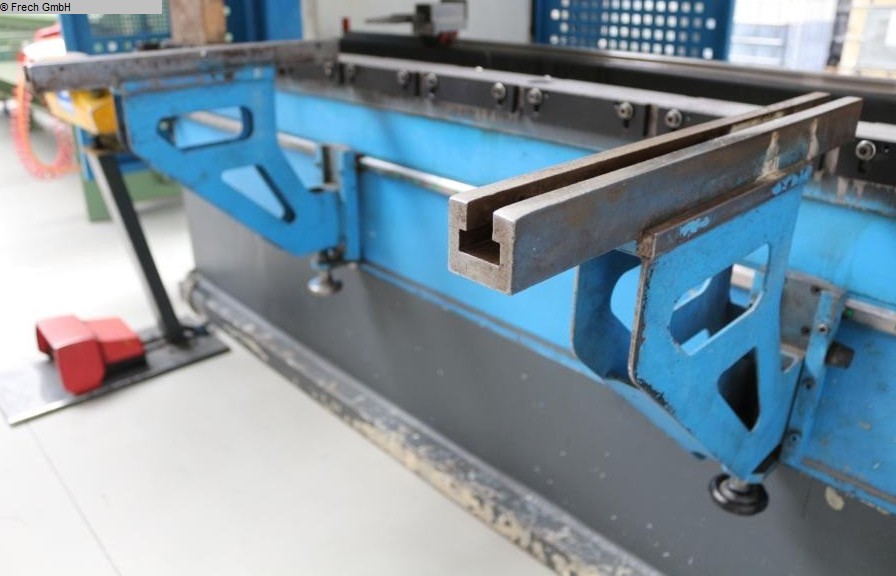

- 2x front, sliding support arms (sliding system)
- Side guard (swivel doors)

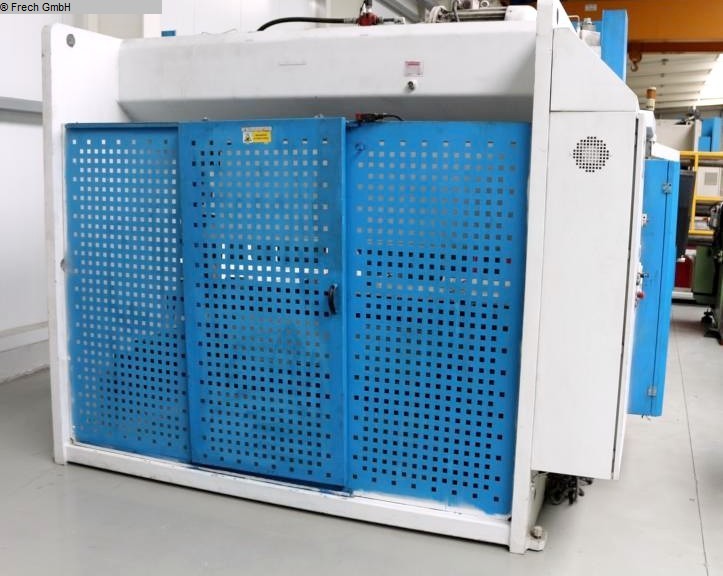

- Rear guard (sliding door)

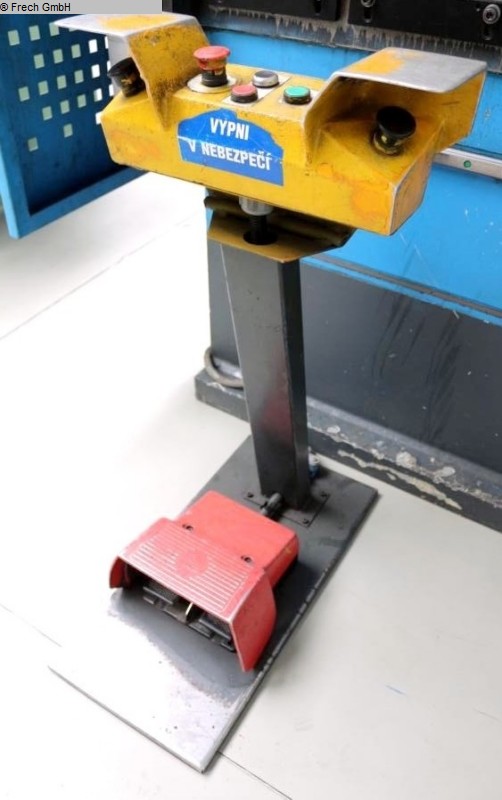

- 1x freely movable 2-hand/foot control
- Operating instructions (PDF)
