Machine-data
| Stock no. | 1073-97043 |
| Category | Hydr. pressbrake |
| Make | DURMA |
| Type | CNC3 HAP 35.160 |
| Year | 2006 |
| Control | CNC |
| Storage location | Ahaus |
| Origin | |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 160 t |
| chamfer lenght | 3550 mm |
| distance between columns | 3100 mm |
| dayligth | 395 mm |
| stroke of upper beam | 200 mm |
| throat | 350 mm |
| ajustment speed | 100 mm/sec |
| working feed | 9.0 mm/sec |
| return speed | 86.0 mm/sec |
| work height max. | ca. 950 mm |
| table width | 125 mm |
| Control | CYBELEC DNC 60 |
| oil volume | 150 l |
| total power requirement | 15.0 kW |
| weight | 10800 kg |
| range L-W-H | 4700 x 2100 x 2700 mm |
** New price ~ 80,000
** From a maintenance workshop
** In good condition (!!)
Equipment:

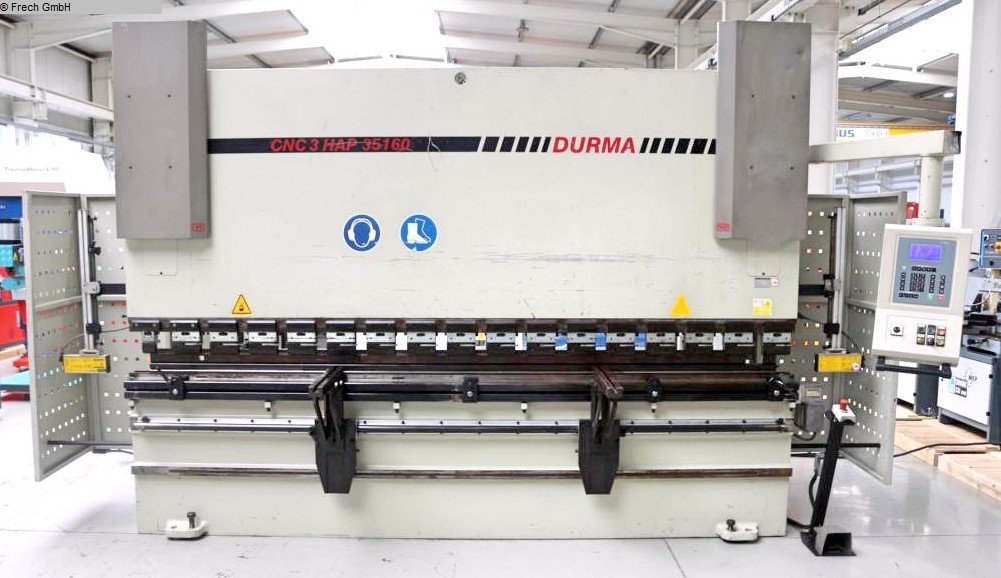

- Electro-hydraulic CNC press brake
- With DELEM CNC control - Model "DNC60"
* Pivoting control panel, front right
* Numerical control unit
* Tool and program library
- CNC-controlled axes: Y1 + Y2 + X + CNC crowning

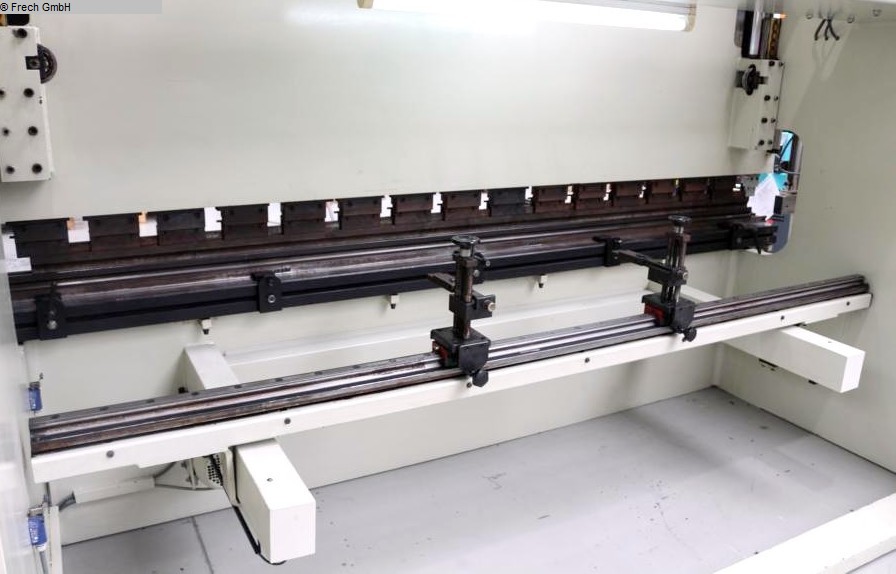

- CNC electro-motorized backgauge (X axis)
* With 2 manually adjustable stop fingers (R + Z axes)
- CNC under-table crowning
- FIESSLER front safety device
- Upper tool holder with upper wedge crowning (AMADA)
* Including split Rehfuß upper tool (AMADA)
- Split 4V universal die (AMADA), in the die shoe
- 2 front sliding support arms with "sliding system"
- Side guards (pivoting doors)

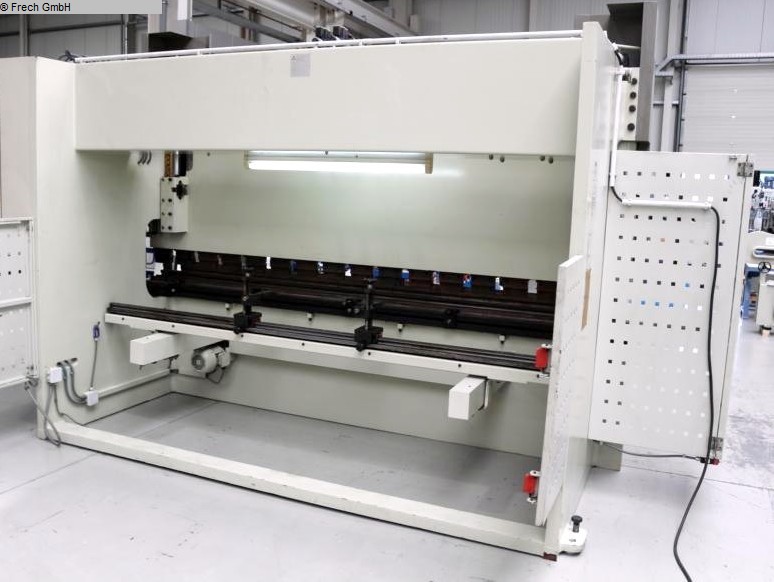

- Rear Safety device (light barrier)
- Machine light in the rear area of the machine
- 1x freely movable foot control
- Original operating instructions
Documents
no documents available
