Machine-data
| Stock no. | 1073-97041 |
| Category | Hydr. pressbrake |

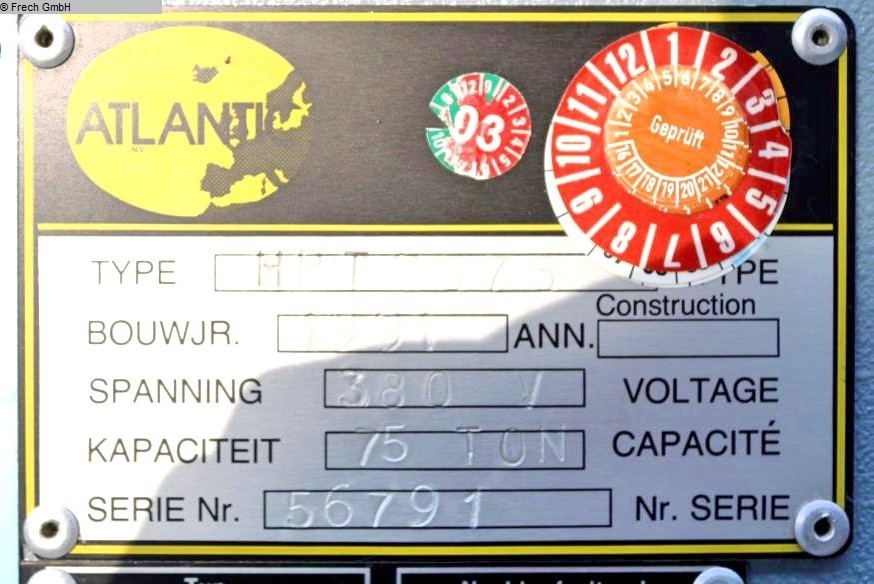

| Make | ATLANTIC |
| Type | HPT 2575 |
| Year | 1991 |
| Control | conventional |
| Storage location | Ahaus |
| Origin | Belgium |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 075 t |
| chamfer lenght | 2600 mm |
| distance between columns | 2100 mm |
| stroke of upper beam | 100 mm |
| throat | 200 mm |
| dayligth | 280 mm |
| working feed | 8.0 mm/sec |
| return speed | 55.0 mm/sec |
| Control | konv. |
| work height max. | 840 mm |
| total power requirement | 7.5 kW |
| weight | 4700 kg |
| range L-W-H | 2900 x 1450 x 2100 mm |
** from a prototype construction
** In good condition (!!)
Features:
- Simple electro-hydraulic press brake, including torsion bar

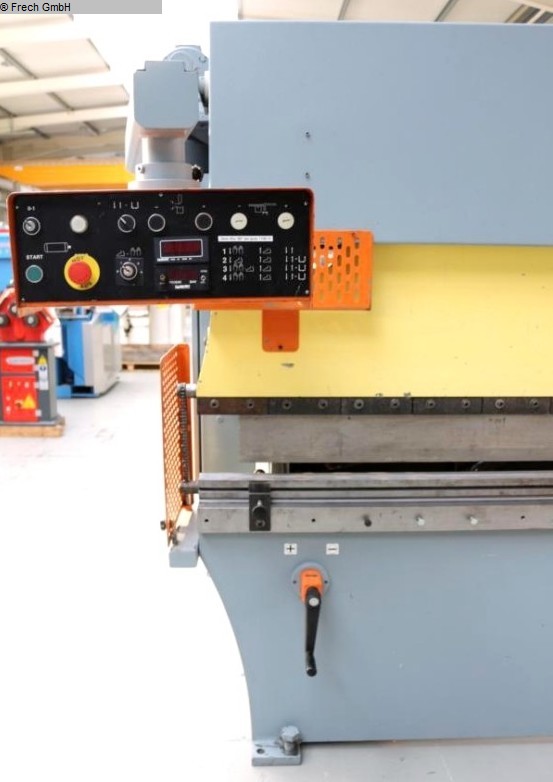

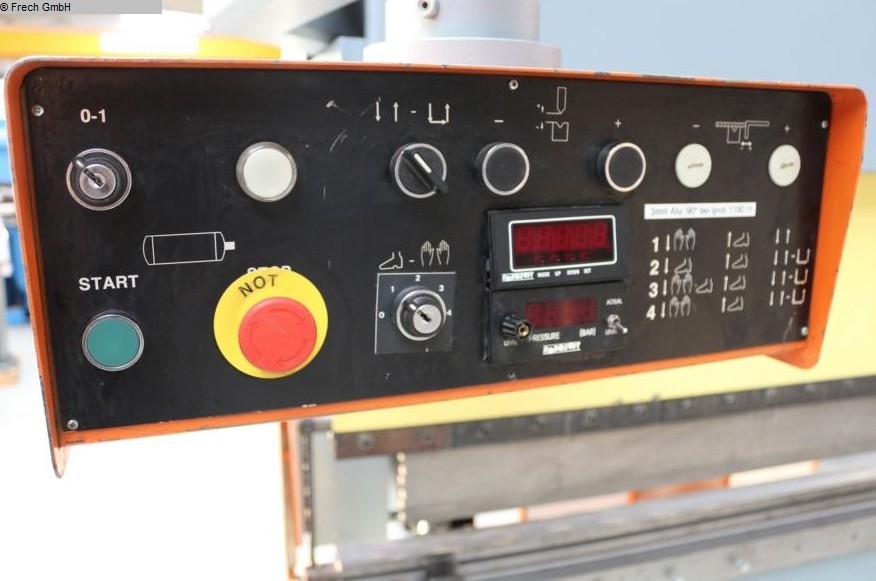

- Pivoting control panel, front left
- Electro-motorized + stepless depth adjustment (Y1 + Y2 axes)

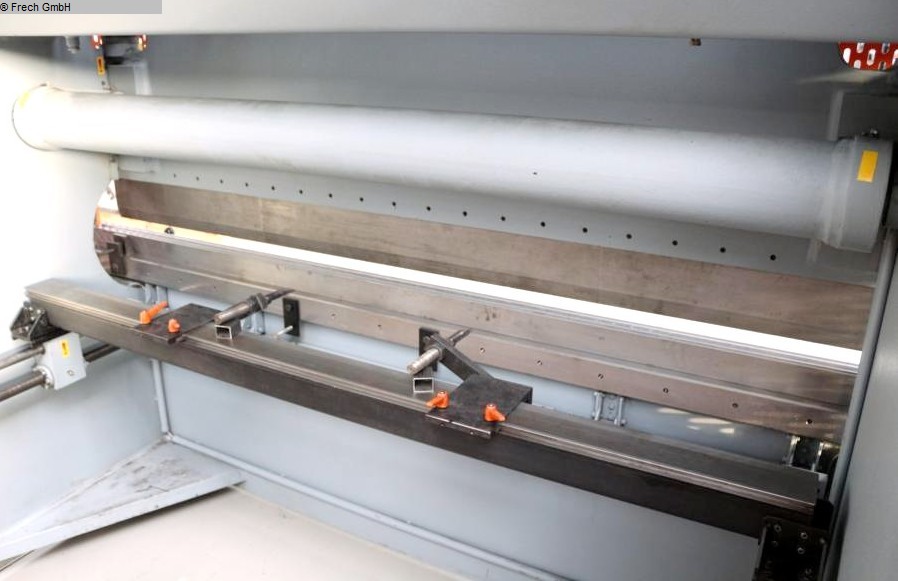

- Manually adjustable material backgauge
* Manually adjustable with hand crank - from the front
* Includes analog position indicator
* 2 manually adjustable stop fingers

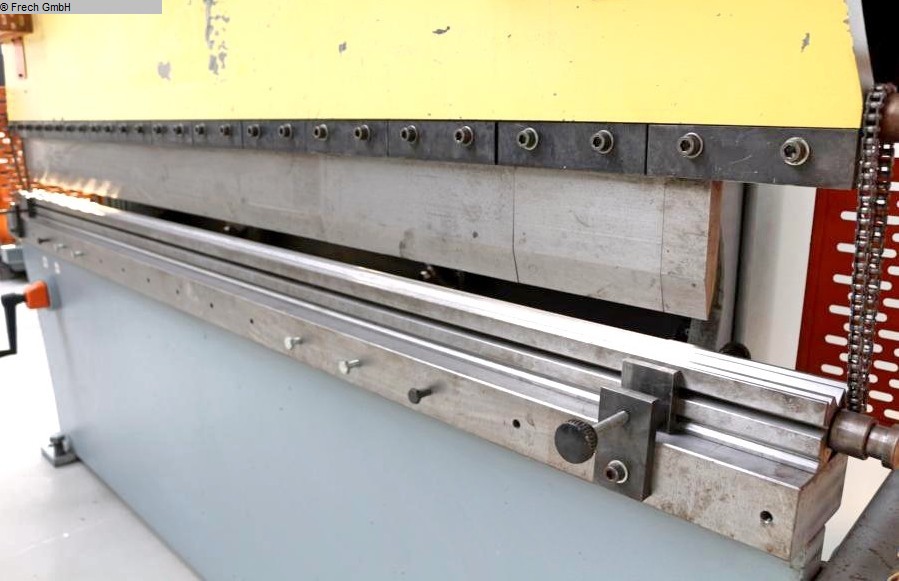

- 1 split pointed upper tool set - "HACO" holder
- 1 rotating MULTI V die block (lower tool)

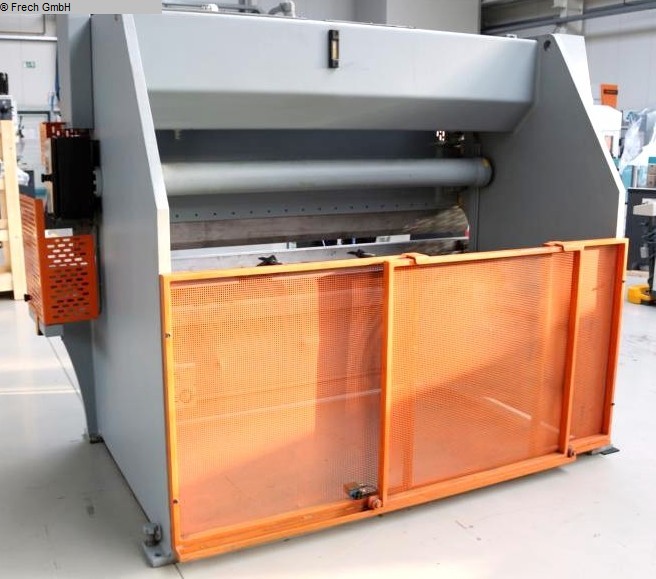

- Side guard (pivoting doors)
- 1 freely movable double foot switch
- 2 sturdy front material support arms (homemade)
- Operating instructions (PDF)
Documents
no documents available
