Machine-data
| Stock no. | 1073-97038 |
| Category | Hydr. pressbrake |
| Make | WEINBRENNER |

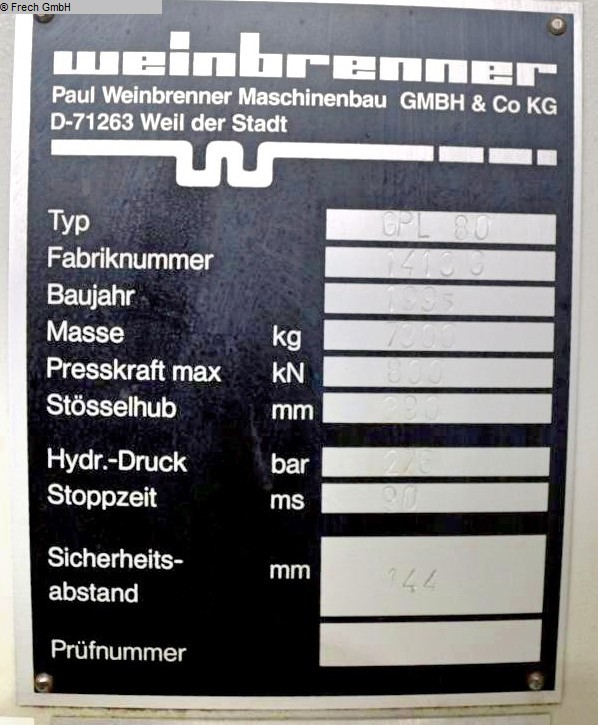

| Type | GPL 80 |
| Year | 1995 |
| Control | CNC |
| Storage location | Ahaus |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 080 t |
| chamfer lenght | 2050 mm |
| distance between columns | 1550 mm |
| column arm | 250 mm |
| table width | 85.0 / 135 mm |
| stroke | ca. 390 mm |
| dayligth | ca. 585 mm |
| ajustment speed | 180 mm/sec |
| working feed | 1.0 - 10.0 mm/sec |
| return speed | 135 mm/sec |
| work height max. | 1050 mm |
| Number of working hours | 32.495 h |
| oil volume | 200 l |
| operating pressure | 320 bar |
| total power requirement | 11.6 KW |
| weight of the machine ca. | 7300 kg |
| range L-W-H | 3700 x 2000 x 3000 mm |
** Good/well-maintained condition (!!)
-------------------------------------------------
CNC electro-hydraulic press brake with:
* Increased installation height .. approx. 550 mm
* Increased cylinder stroke .. approx. 390 mm
-------------------------------------------------
Features:
- Robust electro-hydraulic press brake
* MADE IN GERMANY (!!)

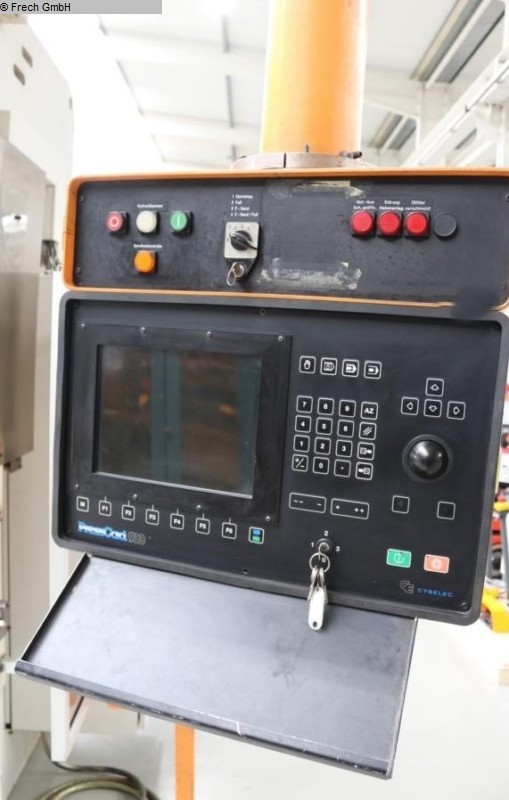

- CYBELEC CNC control "DNC 904 PS-A" (SN 0332)
* Pivoting, front right
* High-resolution graphic display
* Clear, easy-to-read menus in the operator's language
* Large tool and product library
* Graphic 2D programming
* Automatic bending sequence calculation
- CNC-controlled axis adjustment: Y1+Y2 / X / R axes

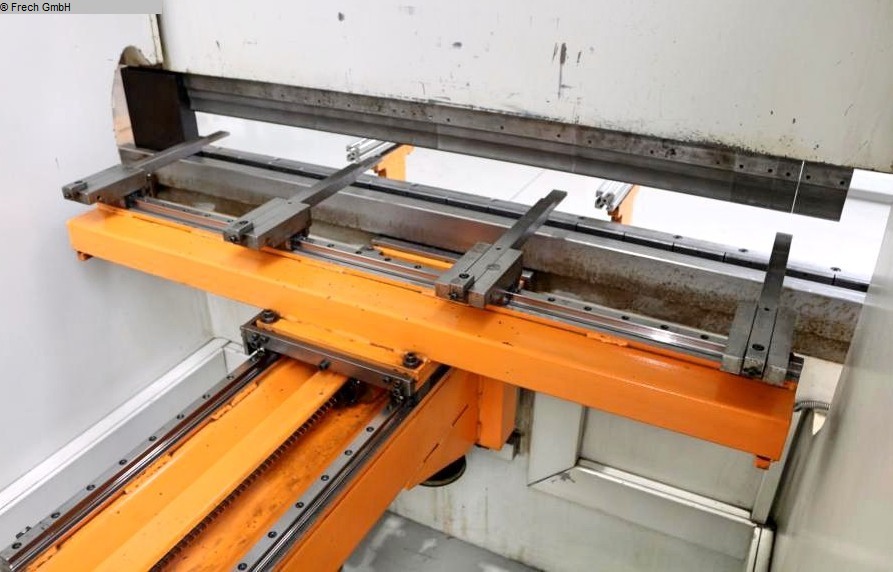

- CNC electro-motorized backgauge (X axis)
* With 4 manually adjustable stop fingers
- CNC Electric height adjustment (R axis)

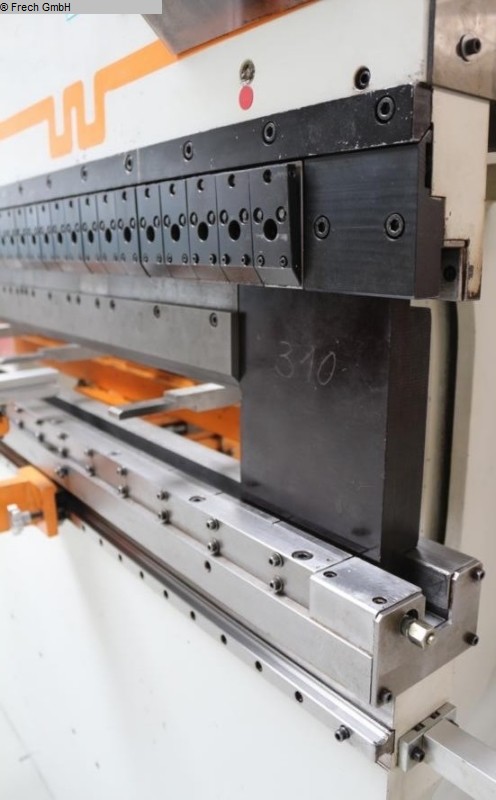

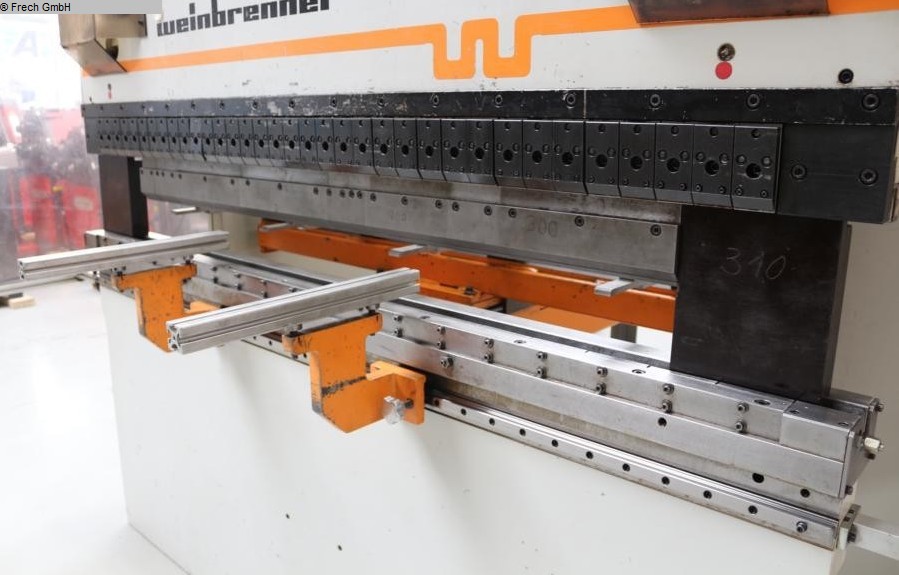

- WEINBRENNER electro-hydraulic upper tool clamp
- WEINBRENNER electro-hydraulic lower tool clamp
- 1x freely movable 2-hand/foot control
- 2x front, movable support arms
- Side safety device (swinging doors)

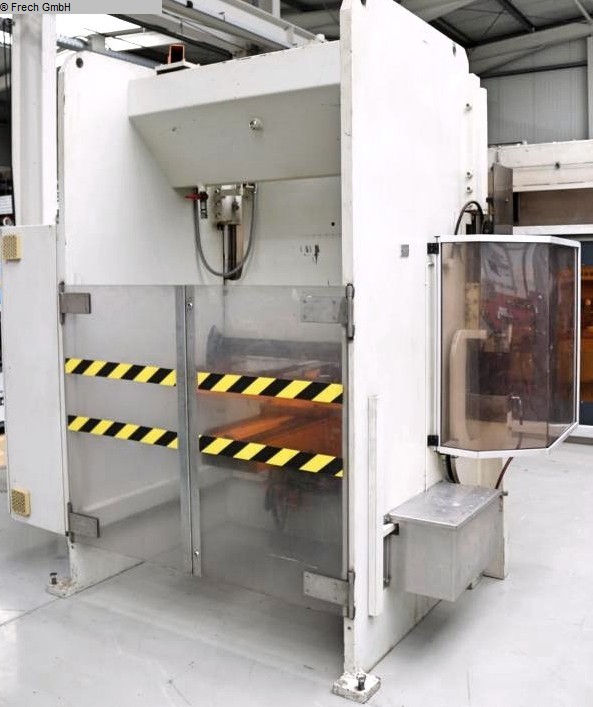

- Rear safety device (swinging doors)
- Machine/control manual + circuit diagram
