Machine-data
| Stock no. | 1073-97036 |
| Category | Hydr. pressbrake |
| Make | BOSCHERT |

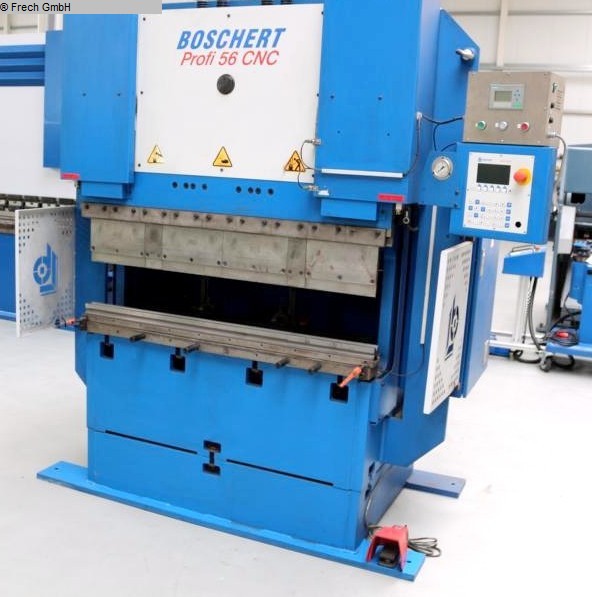

| Type | PROFI 56 - 1400 CNC |
| Year | 2008 |
| Control | CNC |
| Storage location | Ahaus |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 056 t |
| chamfer lenght | 1400 mm |
| distance between columns | 1300 mm |
| throat | 220 mm |
| stroke | 200 mm |
| dayligth | 485 mm |
| work speed | 8.0 - 10.0 m/min |
| return speed | 35.0 mm/sec |
| Control | CNC Boschert |
| back stop - adjustable | 0 - 370 mm |
| work height max. | 915 mm |
| Cylinders : | 2 Stück |
| voltage | 3x 400 V |
| connected load | 8.0 kVA |
| weight | 3700 kg |
| range L-W-H | 2320 x 1280 x 2030 mm |
** very good / well-maintained condition (!!)
** with lots of bending tools
Equipment:
- NC electro-hydraulic press brake

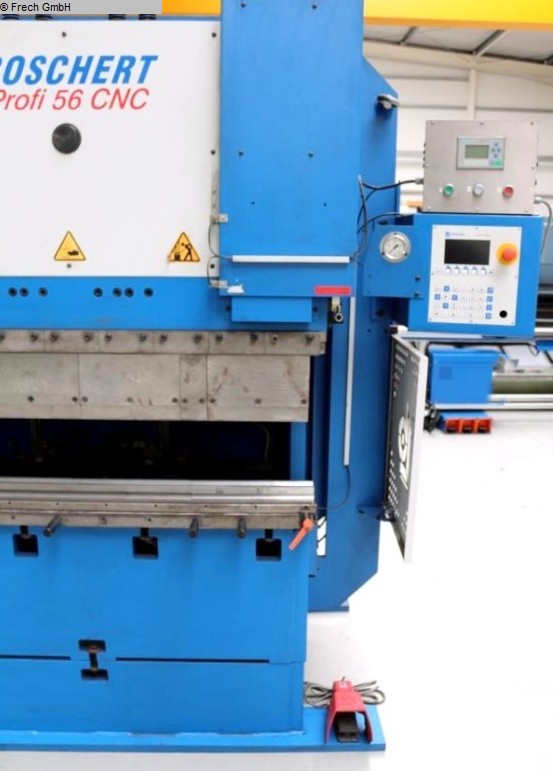

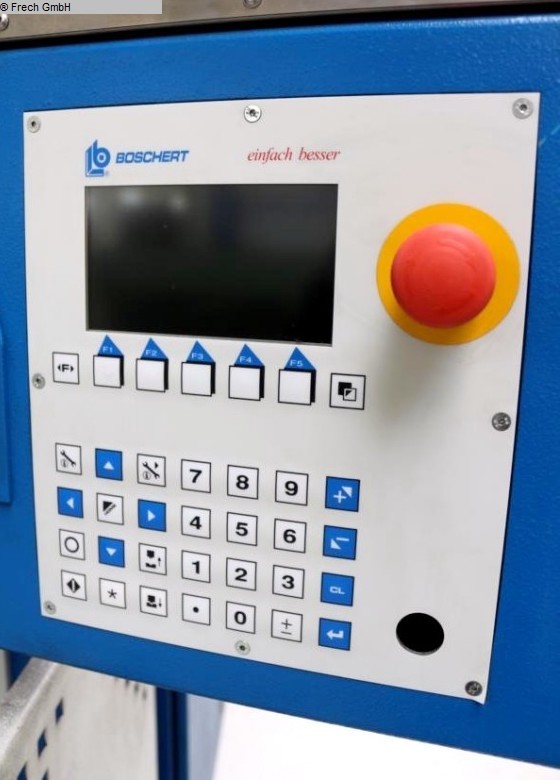

- BOSCHERT NC control unit, front

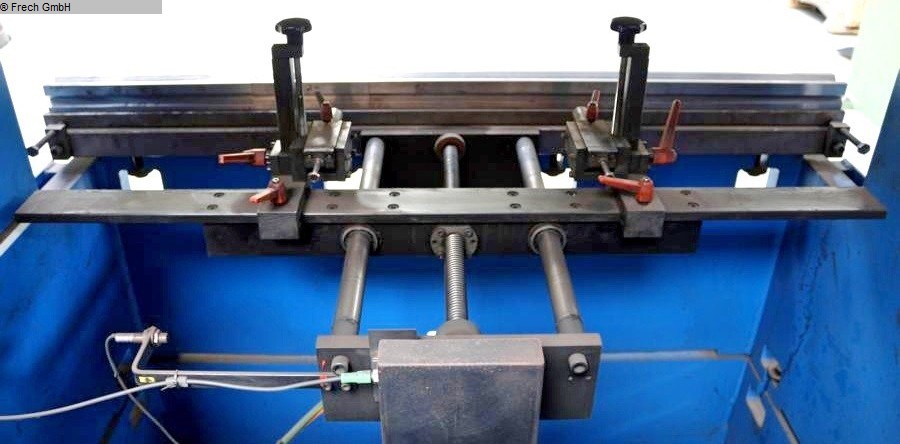

- NC electro-motorized back stop (X axis)
* with 2x manually adjustable stop fingers (R+Z axis)

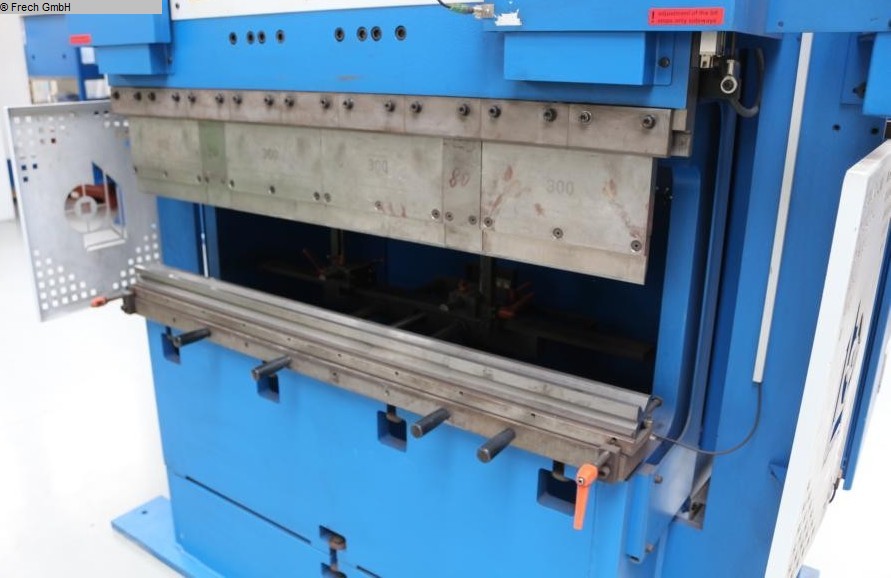

- AMADA PROMECAM (SYSTEM A) upper tool holder
- AMADA PROMECAM (SYSTEM A) lower tool holder
- Handwheel with analog display for adjusting the bending angle
- lots of insert tools, including tool cabinet
- 1x working cylinder = double-acting cylinder
- upper beam made from a solid steel plate
- pressure gauge for pressing pressure (infinitely adjustable)
- 2x front support tables
- 1x freely movable foot switch
- robust machine base
- rear protective device (cover + circuit breaker)
- original operating instructions (machine + control)
Documents
no documents available
