Machine-data
| Stock no. | 1073-97035 |

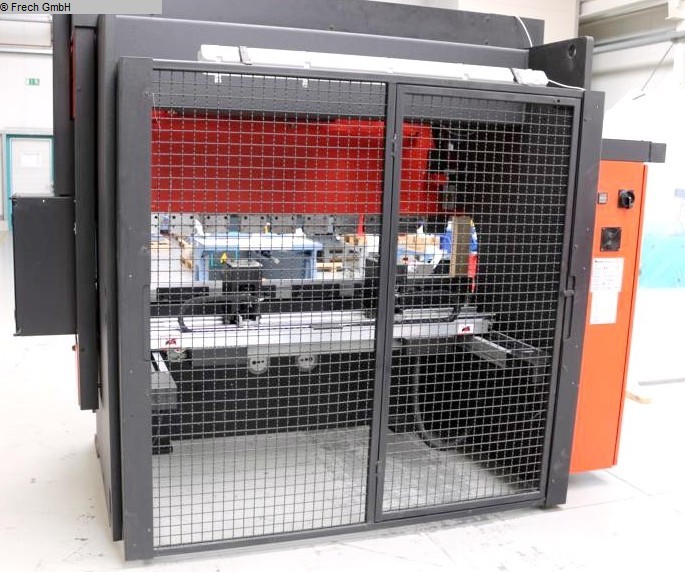

| Category | Hydr. pressbrake |
| Make | AMADA |
| Type | HFBO 80-25 |
| Year | 1996 |
| Control | CNC |
| Storage location | |
| Origin | France |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 080 t |
| chamfer lenght | 2550 mm |
| distance between columns | 2130 mm |
| column arm | 420 mm |
| ajustment speed | 100 mm/sec |
| working feed | 10.0 mm/sec |
| return speed | 80.0 mm/sec |
| stroke | 200 mm |
| dayligth | 470 mm |
| table width | 60.0 mm |
| table height | 910 mm |

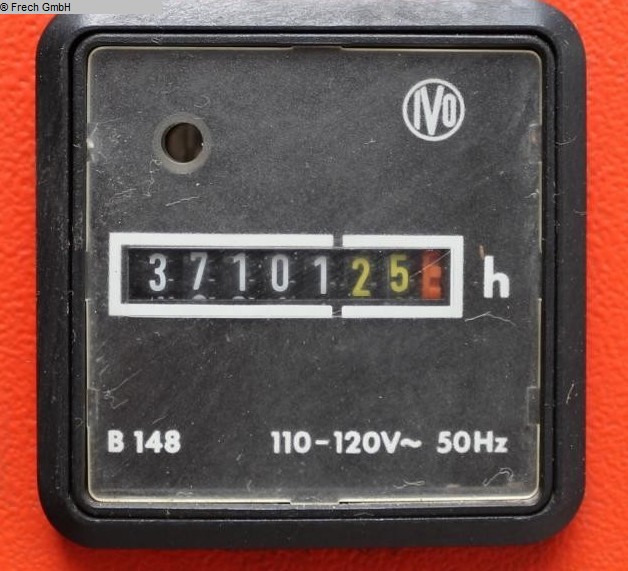

| Number of working hours | ca. 37.102 h |
| total power requirement | 9.0 KW |
| weight of the machine ca. | 5750 kg |
| range L-W-H | 3100 x 2180 x 2540 mm |
** very well-maintained condition
** Machine with only approx. 7.700 operating hours (!!)
Furnishing:

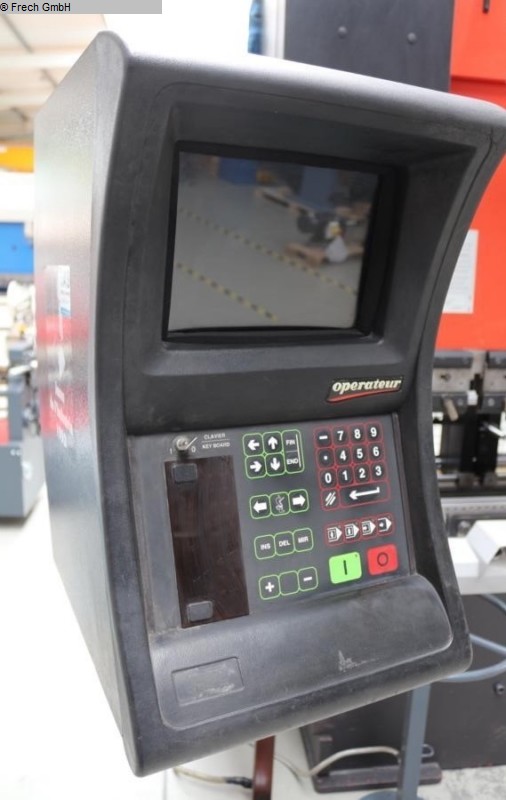

- CNC control OPERATEUR for axes X,Y1+Y2,R1+R2,Z1+Z2

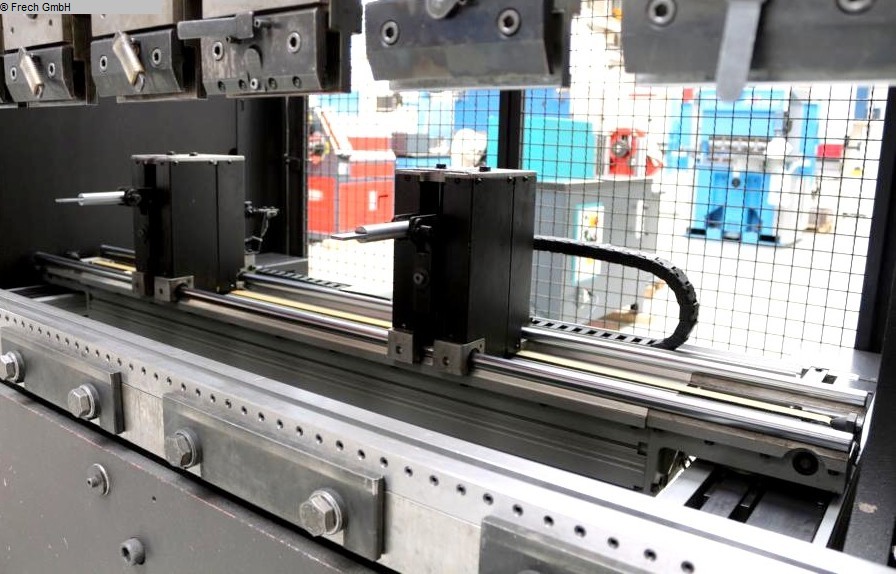

- CNC-controlled back gauge adjustment (X-axis)
- CNC-controlled vertical adjustment of the stop fingers (R-axis)
- CNC-controlled adjustment of the stop fingers left-right (Z-axis)
- Hand control device on the foot switch for manual movement of the axes
- freely movable two-hand control & foot switch
- Tool top wedge crowning - type AMADA

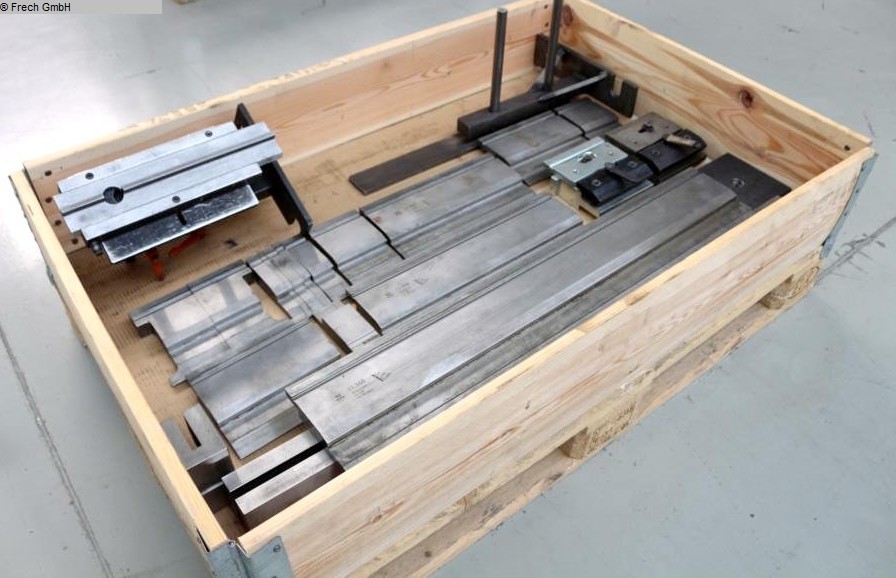

- various application tools
- CE marking
- 2x EMERGENCY stop buttons at the front
- original documents such as operating instructions
* Machine link:
https://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machineno=1008-9308346
* Machinevideo :
https://www.youtube.com/watch?v=G4oZ0TFcD9c&feature=youtu.be
