Machine-data
| Stock no. | 1073-97032 |
| Category | Hydr. pressbrake |
| Make | FASTI |
| Type | 904-125/30 |
| Year | |
| Control | CNC |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 125 t |
| chamfer lenght | 3050 mm |
| distance between columns | 2550 mm |
| ajustment speed | 90.0 mm/sec |
| working feed | 10.0 mm/sec |
| return speed | 75.0 mm/sec |
| stroke | 140 mm |
| dayligth | 375 mm |
| column arm | 250 mm |
| table width | 90.0 mm |
| work height max. | ca. 950 mm |
| Number of working hours | 14.100 h |
| total power requirement | 13.5 kW |
| weight | 8500 kg |
| range L-W-H | 3630 x 2300 x 2505 mm |
** From a maintenance workshop
** Good / well-maintained condition
** With only approx. 14.100 operating hours (!!)
Equipment:
- CNC electro-hydraulic press brake
- DELEM CNC control - model "DA 58"
* Swiveling control panel, front left
* 2D graphic programming & product display
* Tool & program library
- CNC-controlled axes:
* Y1+Y2 / X1+X2 / R1+R2 / Z1+Z2 / CNC crowning

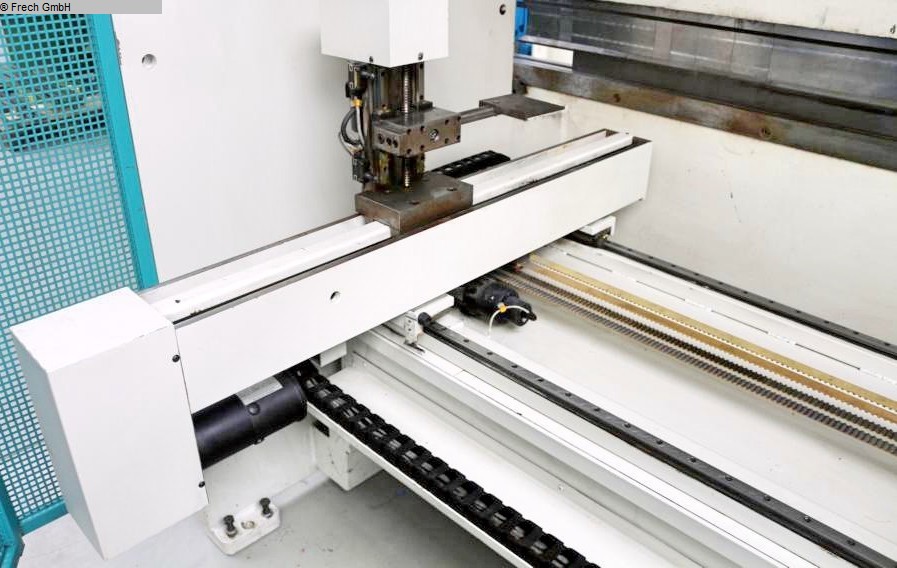

- CNC electro-motorized backgauge (X axes)
* Stop system with 2x CNC-controlled gantries
- CNC electro-motorized height adjustment of the backgauge (R axes)
- CNC electro-motorized adjustment of the stop fingers (Z axes)
- Manual upper tool clamping
- Manual lower tool clamping

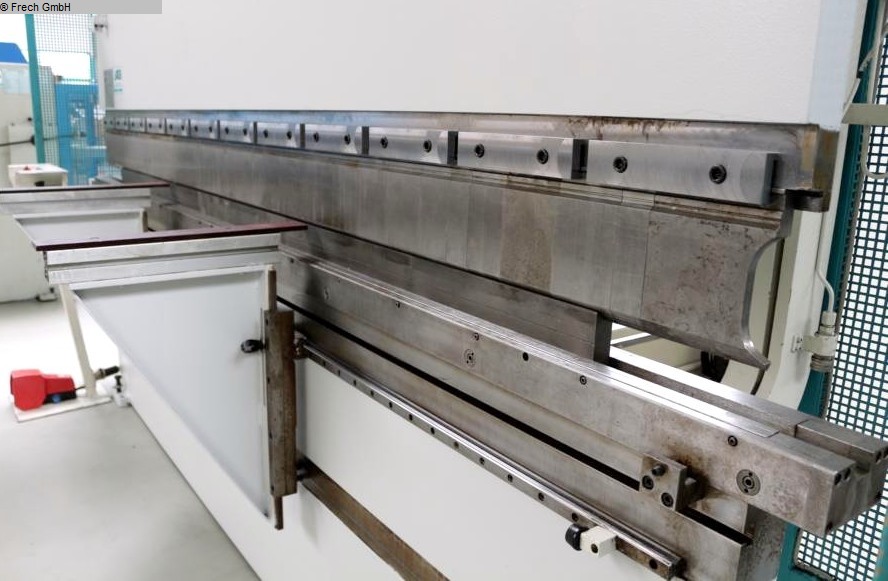

- Various split upper and lower tools
- 2x stable, movable Front support arms
- 1x freely movable 2-hand/foot control
- Side guard (swinging doors)
- Rear guard (swinging door)
- Original operating instructions + control unit
- Manufacturer's CE declaration
Documents
no documents available
