Machine-data
| Stock no. | 1073-97022 |
| Category | Hydr. pressbrake |
| Make | EHT |

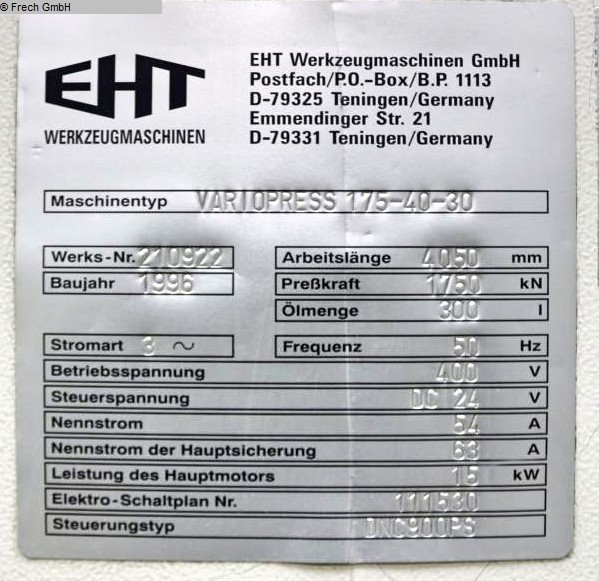

| Type | VARIOPRESS 175-40-30 |
| Year | 1996 |
| Control | CNC |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | Immediately // CHECKED |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 175 t |
| chamfer lenght | 4050 mm |
| distance between columns | 3050 mm |
| column arm | 300 mm |
| ajustment speed | 140 mm/sec |
| work speed | 10.0 mm/sec |
| return speed | 130 mm/sec |
| work stroke | 360 mm |
| dayligth | 340 - 700 mm |
| table height | 1000 mm |
| table width | 200 mm |
| oil volume | 300 ltr. |
| operating pressure | max. 295 bar |
| air pressure | 4.5 - 6.0 bar |
| voltage | 3x 400 Volt |
| total power requirement | 15.0 - 27.0 kW |
| weight | 17200 kg |
| range L-W-H | 5850 x 2550 x 3200 mm |
** good condition (!!)
** including new CNC control
Equipment:

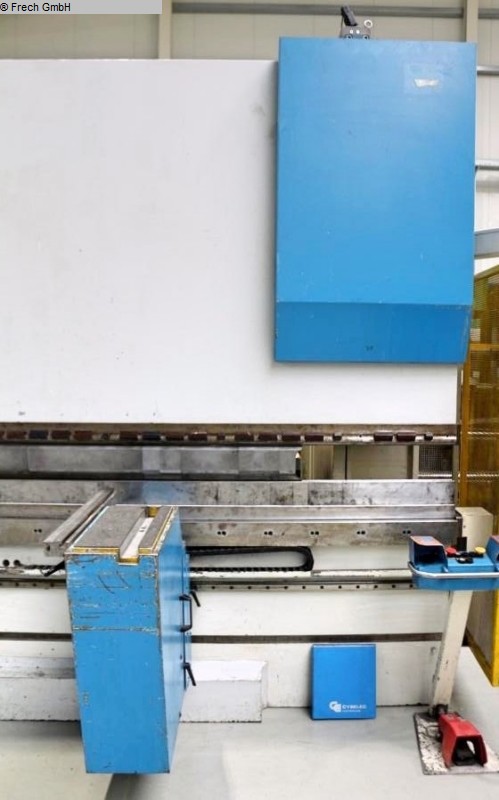

- electro-hydraulic CNC press brake

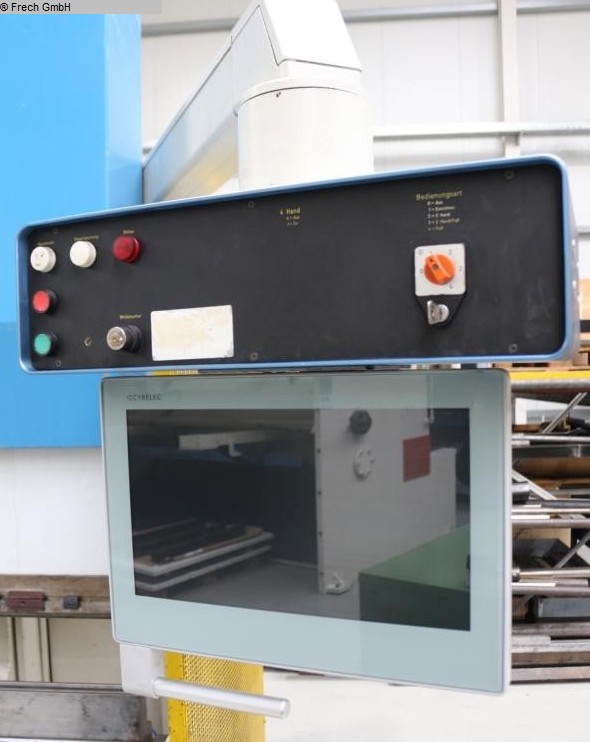

- with new CYBELEC "VisiTouch 19" touch CNC control (conversion)
* graphic numerical 2D control
* 19? modern, streamlined touchscreen with glass surface
* can also be operated with gloves
* clear, well-arranged menus in the operator's language
* easy operation thanks to the user-friendly HMI
* large tool and product library
- CNC controlled axes:
* Y1+Y2 / X+X1 / R / Z1+Z2 / BV1+BV2 / I + CNC crowning
- CNC electro-motoric back stop adjustment (X-axis)
* Stop range X axis of bending line .. 5.0 - 1.000 mm
* Adjustment speed .. max. 500 mm/sec.
* Adjustment in X1 axis possible .. +/- 125 mm
- CNC-controlled vertical adjustment of the stop fingers (R axis)
* Adjustment range of table surface .. 85 - 235 mm
* Adjustment speed .. max. 100 mm/sec.
- CNC-controlled adjustment of the stop fingers left-right (Z1+Z2 axis)
- CNC-controlled / pneumatic die displacement (I axis)

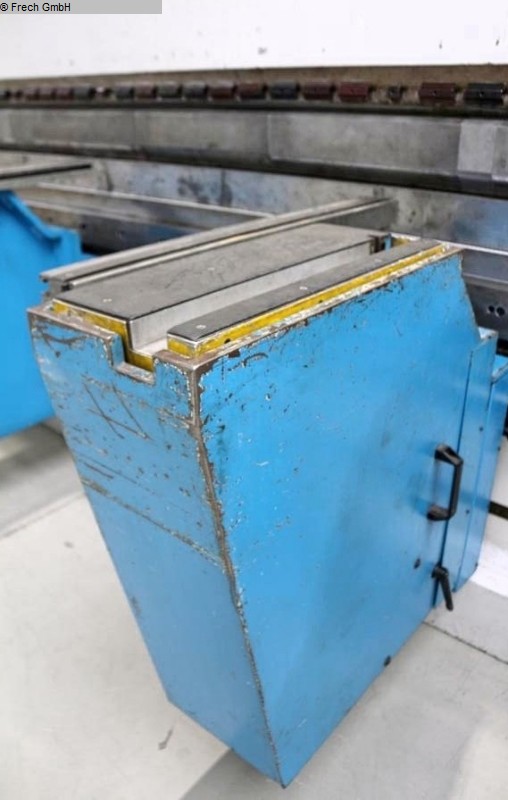

- 2x CNC-controlled front bending aids (BV axes)
* Swivel angle max. .. 45 degrees
* Swivel speed .. max. 45 degrees/sec.
- CNC-controlled electric table crowning

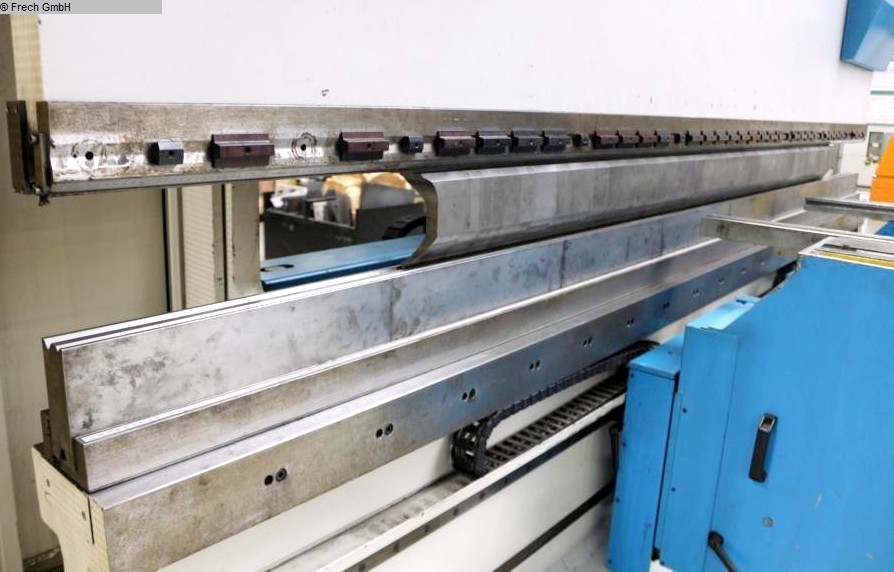

- pneumatic EHT upper tool clamp
- pneumatic EHT lower tool clamp
- 1x freely movable 2-hand/foot control
- rear protective device (protective grille)
- side protective device (swivel doors)

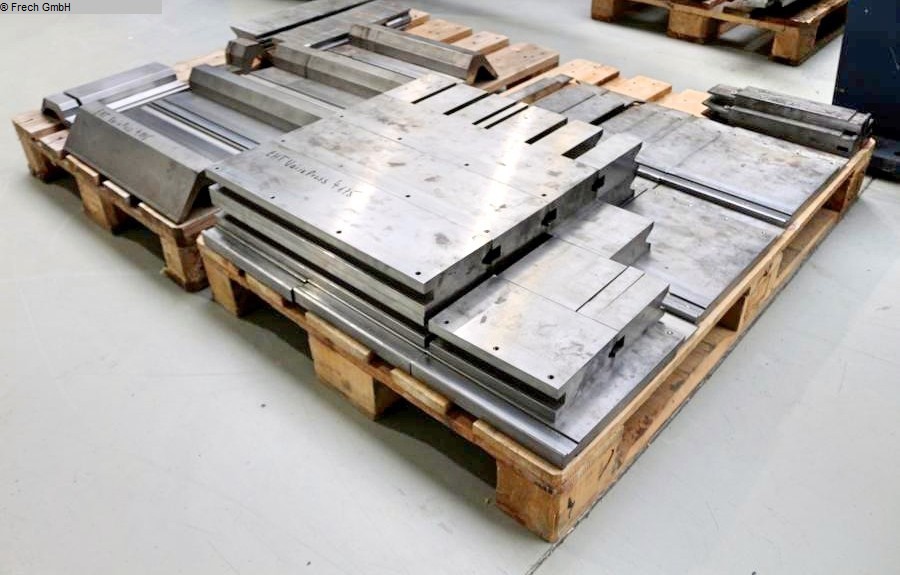

- various bending tools
- original operating instructions + circuit diagram etc.
Documents
no documents available
