Machine-data
| Stock no. | 1073-97016 |
| Category | Hydr. pressbrake |
| Make | BAYKAL |
| Type | APH 2604x60 |
| Year | 2004 |
| Control | NC |
| Storage location | EXW- ex works |
| Origin | |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 060 t |
| chamfer lenght | 2600 mm |
| distance between columns | 2050 mm |
| column arm | 310 mm |
| working feed | 10.0 mm/sec |
| return speed | 61.0 mm/sec |
| stroke | 100 - 140 mm |
| dayligth | 450 mm |
| table height | 860 mm |
| oil volume | 100 ltr. |
| Control | ELGO P8822 |
| operating pressure | max. 200 bar |
| Number of working hours | ca. 2.370 h |
| voltage | 380 V |
| total power requirement | 5.5 kW |
| weight of the machine ca. | 5000 kg. |
| range L-W-H | 3000 x 1850 x 2050 mm |
** good / well-maintained condition (!!)
** with only approx. 2,370 operating hours
** current new price approx. 60,000 euros
** special price on request
Equipment:
- NC electro-hydraulic press brake

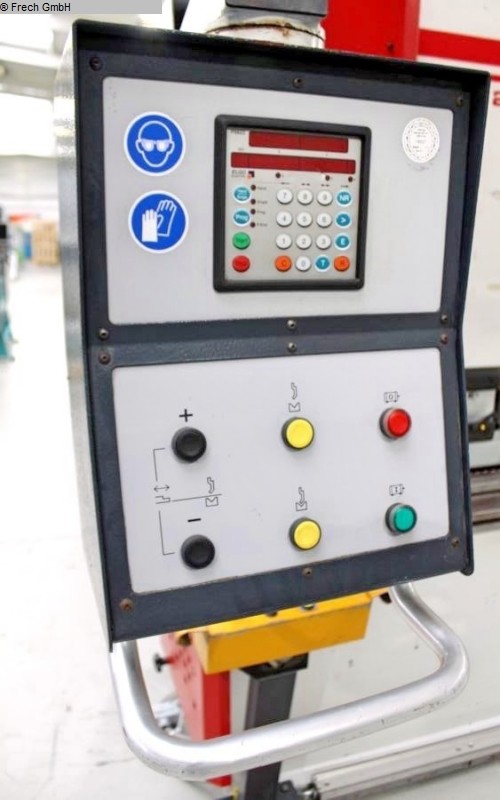

- with ELGO NC control unit "P8822"
* Input of target/actual values ??for back stop
* Input of target/actual values ??for depth adjustment `
* swiveling operation, front left
* manual mode selectable
- NC controlled axes: Y1 + Y2 + X
- NC electro-motorized back stop, on ball screws
* with 4x manually adjustable stop fingers
* adjustment in R+Z axis (manual)
- Upper tool holder SYSTEM A (AMADA), with upper wedge crowning

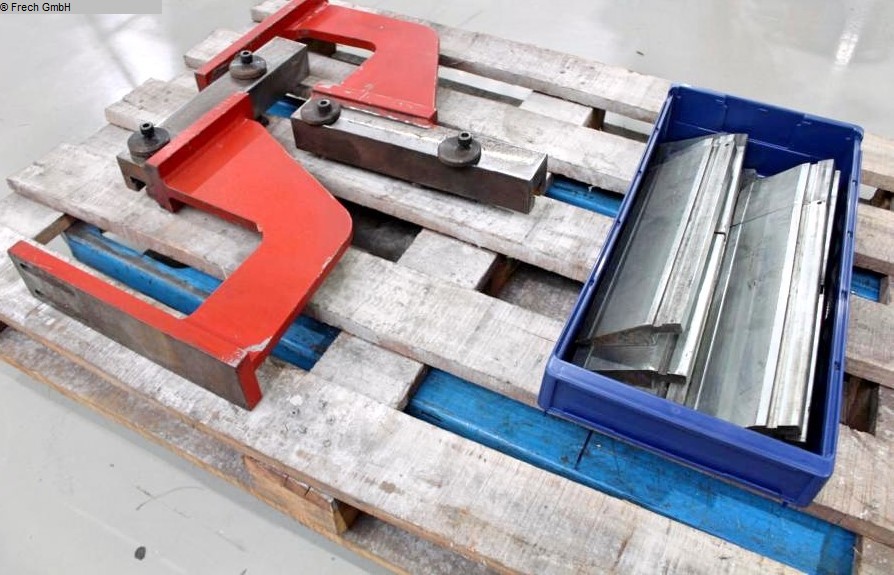

* 1x split set of upper tools
* clamping jaws with clamping lever (quick clamp)
- 1x universally rotatable MULTI V die block
- 2x side-hinged doors (protective device)
- 1x rear sliding door (protective device)
- 2x front stable support arms

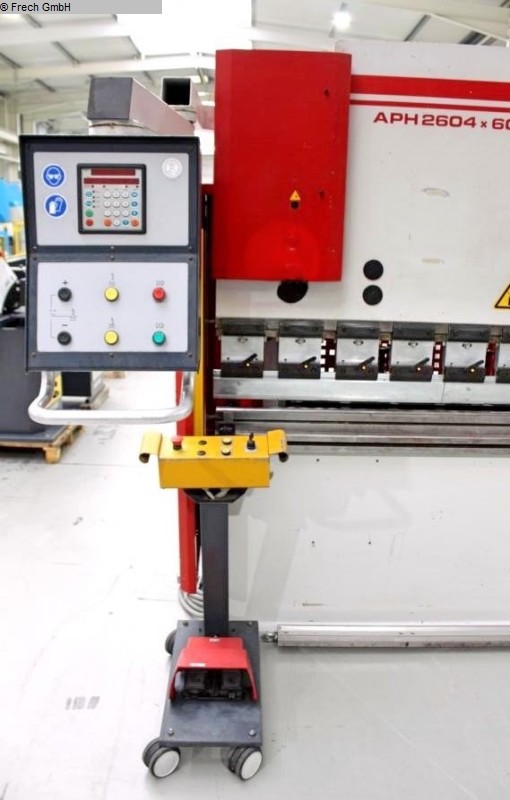

- 1x freely movable foot control (on rollers - movable)
- Operating instructions (PDF)
Documents
no documents available
