Machine-data
| Stock no. | 1073-97015 |
| Category | Hydr. pressbrake |
| Make | DERATECH |
| Type | ULTIMA PLUS 160/4100 |
| Year | 2010 |
| Control | CNC |
| Storage location | EXW- ex works |
| Origin | |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 160 t |
| chamfer lenght | 4100 mm |
| distance between columns | 3600 mm |
| column arm | 400 mm |
| ram stroke speed | 200 mm/sec |
| work speed | 10.0 mm/min |
| return speed | 165 mm/sec |
| work stroke | ca. 350 mm |
| dayligth | ca. 660 mm |
| oil volume | 450 ltr. |
| table height | 830 / 950 mm |
| table width | 75.0 / 60.0 mm |
| voltage | 400 Volt |
| total power requirement | 18.5 kW |
| weight | 13440 kg |
| range L-W-H | 5150 x 2050 x 3150 mm |
** current new price approx. 90.000 euros
** special price on request
------------------------------------------------------
ULTIMA PLUS electro-hydraulic press brake with:
* increased installation height .. approx. 660 mm
* increased cylinder stroke .. approx. 350 mm
-----------------------------------------------------
Equipment:
- CNC electro-hydraulic die/press brake

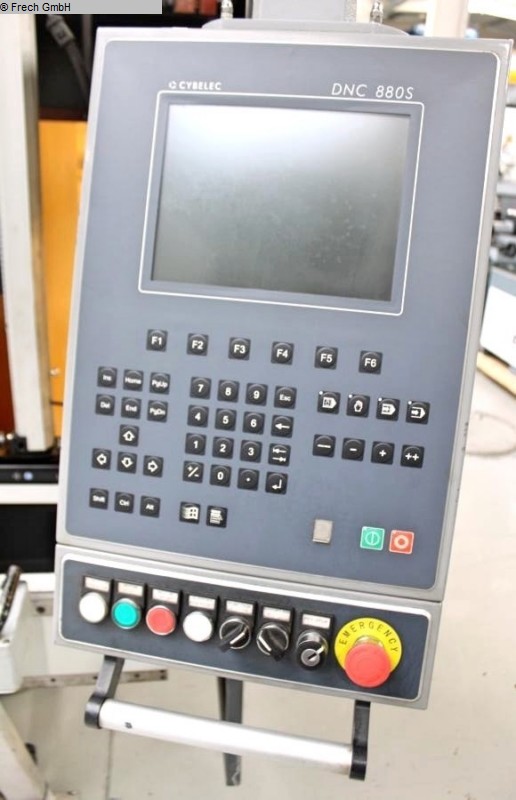

- CYBELEC CNC control "DNC 880 S"

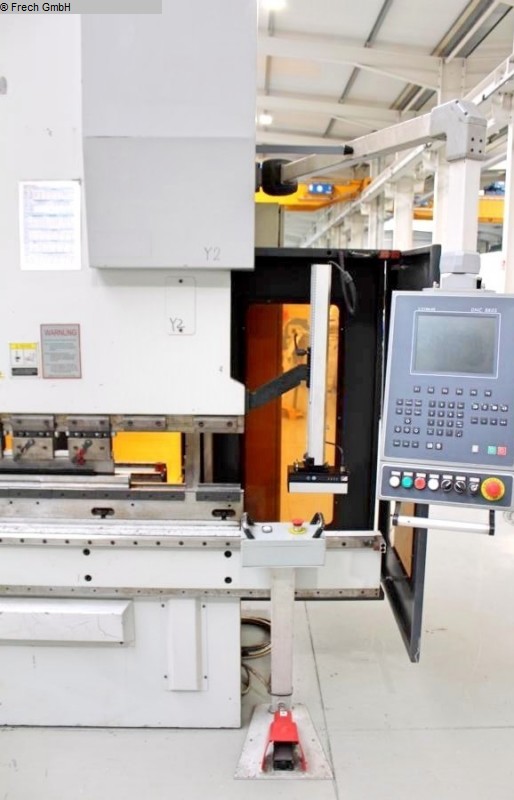

* swiveling control panel, front right
* 2D graphic programming & product display
* tool & program library
- CNC controlled axes: Y1 + Y2 + X + R axis
- CNC electro-motorized back stop, with ball screws (X axis)
- CNC electro-motorized Height adjustment of the stop beam (R axis)
- 2x manually adjustable back stop fingers (Z axis)

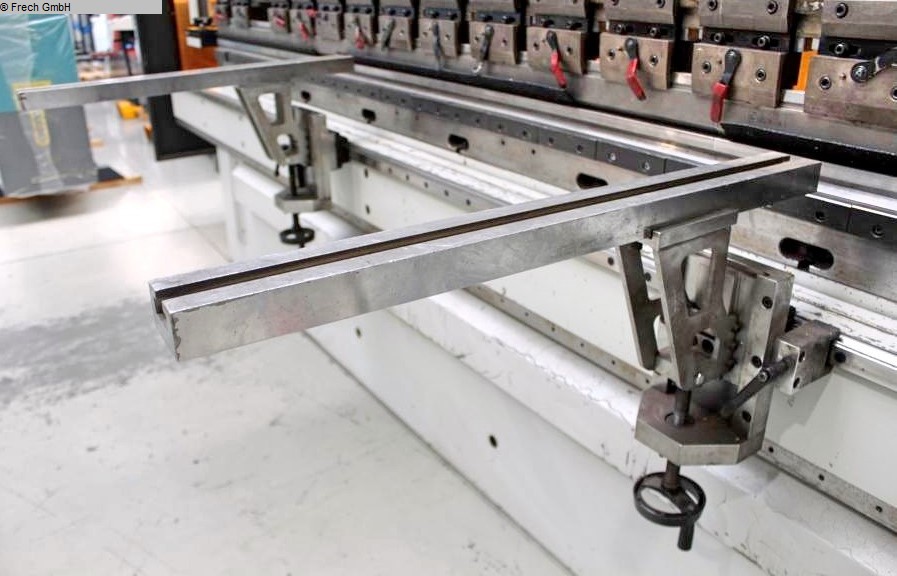

- 2x front, movable support arms with T-slot ("Sliding System")
- 1x set of bending/insert tools
* AMADA / SYSTEM A tool system
- Laser protection device in front of the machine

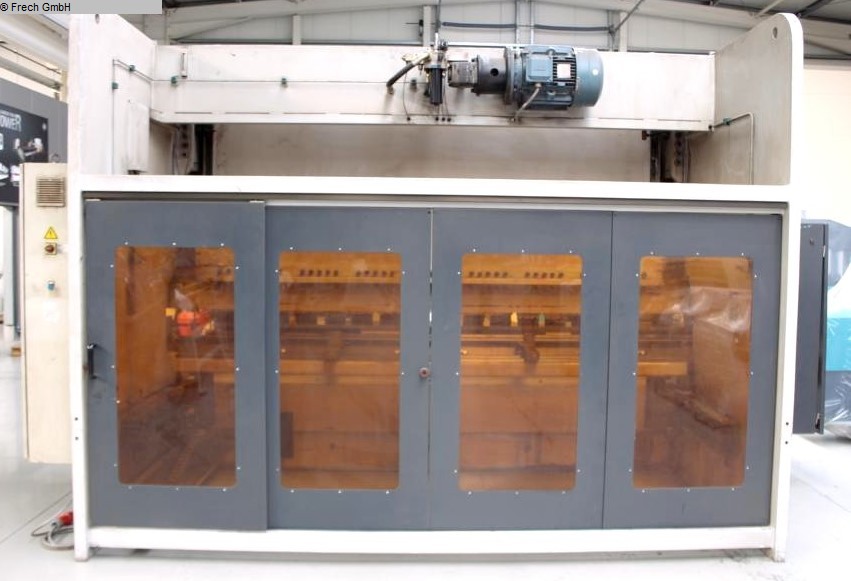

- Safety device behind the machine (door)
- 1x freely movable foot switch
- original operating instructions
Documents
no documents available
