Machine-data
| Stock no. | 1073-97009 |
| Category | Hydr. pressbrake |
| Make | BAYKAL |

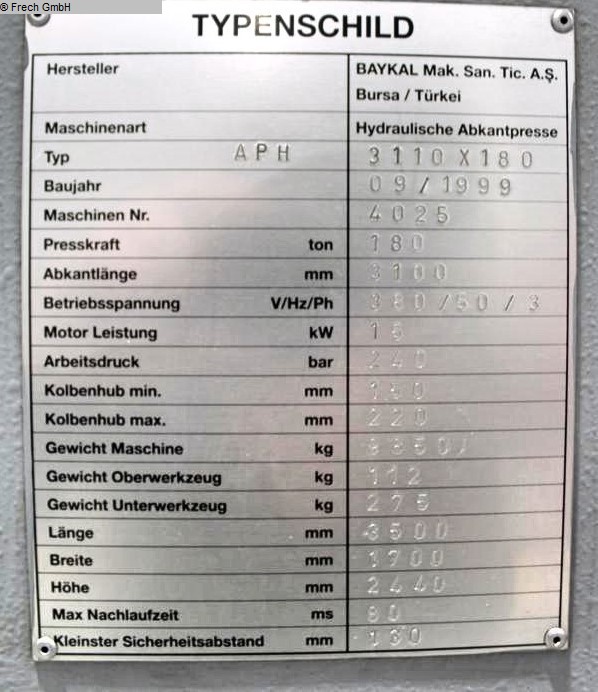

| Type | APH 3110 x 180 |
| Year | 1999 |
| Control | conventional |
| Storage location | EXW- ex works |
| Origin | |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 180 t |
| chamfer lenght | 3100 mm |
| distance between columns | 2550 mm |
| throat | 310 mm |
| stroke | 220 mm |
| ajustment speed | 80.0 mm/sec |
| working feed | 10.0 mm/sec |
| return speed | 58.0 mm/sec |
| dayligth | 510 mm |
| table width | 240 mm |
| work height max. | 885 / 1050 mm |
| oil volume | 180 ltr. |
| total power requirement | 15.0 kW |
| weight of the machine ca. | 9850 kg. |
| range L-W-H | 4200 x 1750 x 2450 mm |
** from a maintenance workshop
** well-maintained condition (!!)
Equipment:
- simple, conventional electro-hydraulic press brake
* with torsion shaft for parallelism of the upper beam

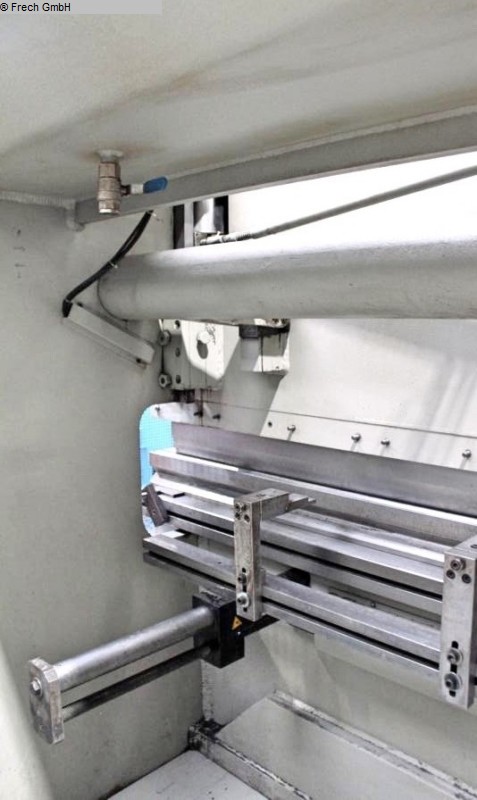

- electric back stop, with ball screws (X axis)
* with 4x manually adjustable stop fingers
* fine adjustment via handwheel at the front, with analog position display
- electro-motor adjustment of the immersion depth (Y1 + Y2 axis)
* with digital position display
- swiveling operation, mounting side on the left

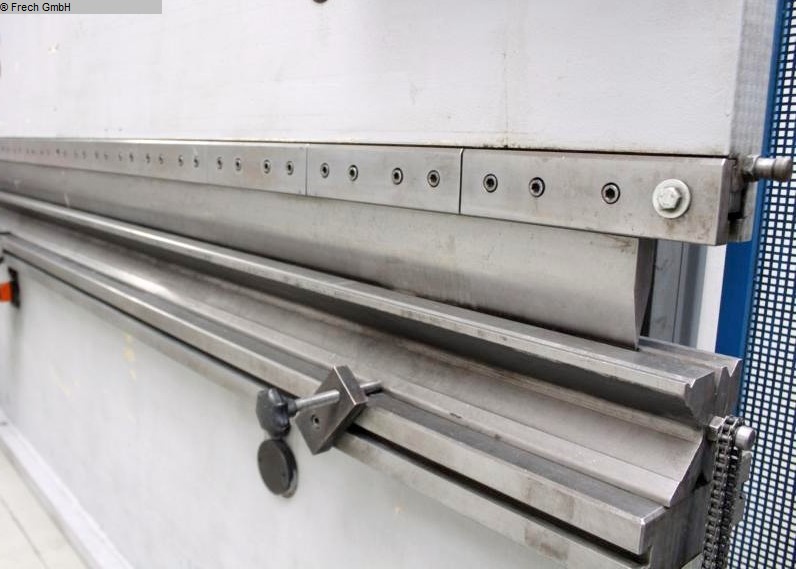

- 1x set of upper tools
- 1x rotatable MULTI V universal die block
- 2x front / movable support arms

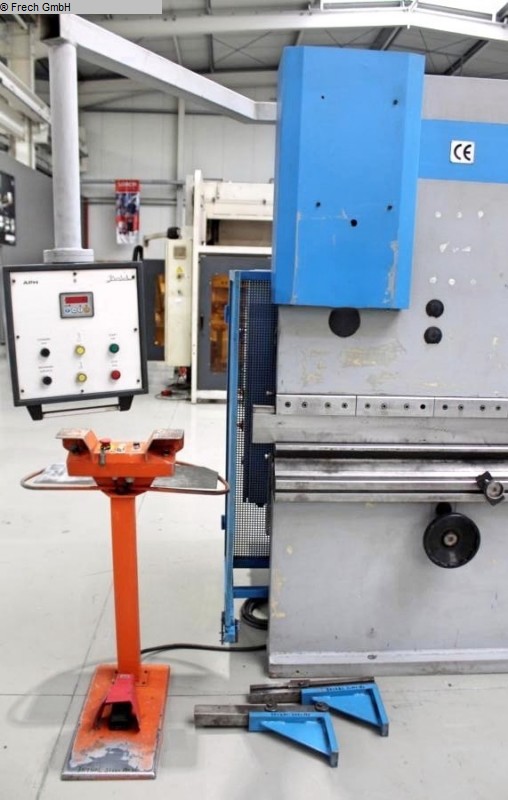

- 1x freely movable 2-hand foot control
- operating instructions (PDF)
Documents
no documents available
