Machine-data
| Stock no. | 1073-97007 |
| Category | Hydr. pressbrake |
| Make | EHT |
| Type | EASYPRESS 85-20 |
| Year | 2000 |
| Control | CNC |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 085 t |
| chamfer lenght | 2050 mm |
| distance between columns | 1650 mm |
| column arm | 400 mm |
| stroke | 240 mm |
| dayligth | 320 - 560 mm |
| ajustment speed | 150 mm/sec |
| working feed | 15.0 mm/sec |
| return speed | 150 mm/sec |
| back stop - adjustable | 5.0 - 1000 mm |
| table width | 110 mm |
| work height max. | 1050 mm |
| operating pressure | max. 297 bar |
| compressed air | 4.5 - 6.0 bar |
| oil volume | 200 l |
| operating pressure | 340 bar |
| total power requirement | 7.5 kW |
| weight of the machine ca. | 5900 kg |
| range L-W-H | 4100 x 2100 x 2750 mm |
** with increased installation height / piston stroke
** well-maintained condition (!!)
Equipment:
- CNC electro-hydraulic press brake

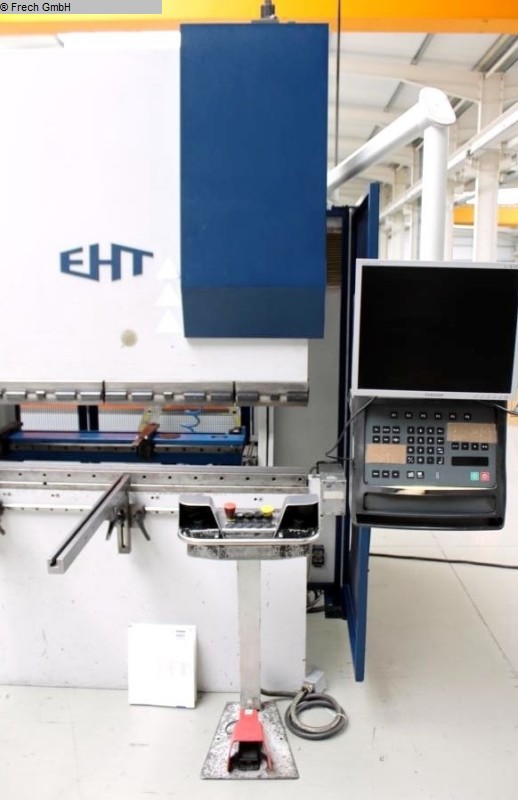

- including CYBELEC CNC control
* swiveling control panel at the front right
* external screen
- CNC axis adjustment: Y1 - Y2 - X - R - Z1 - Z2 - I + CNC crowning

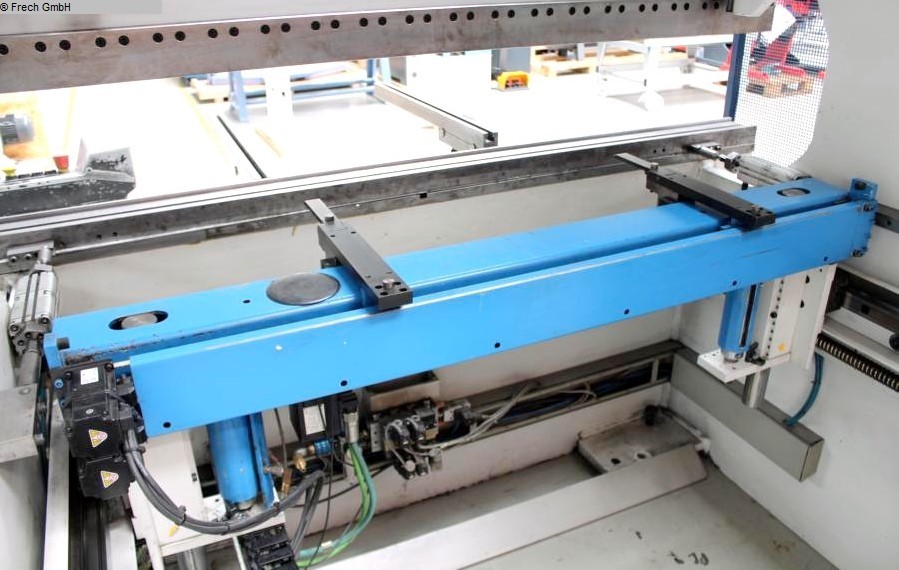

- CNC electro-motorized back stop (X axis)
* Travel range .. 5.0 - 1,000 mm
* Travel speed .. 250 mm/sec.
- CNC electro-motorized height adjustment of the back stop (R axis)
* Travel range .. 70 - 235 mm
* Travel speed .. 100 mm/sec.
- CNC electro-motoric adjustment of the stop fingers (Z axes)
* Travel range Z1 .. 405 - 1.565 mm
* Travel speed .. 1.000 mm/sec.
* Travel range Z2 .. 485 - 1.645 mm
* Travel speed .. 1.000 mm/sec.
- CNC electro-motoric table crowning
- CNC pneumatic die displacement (I axis)

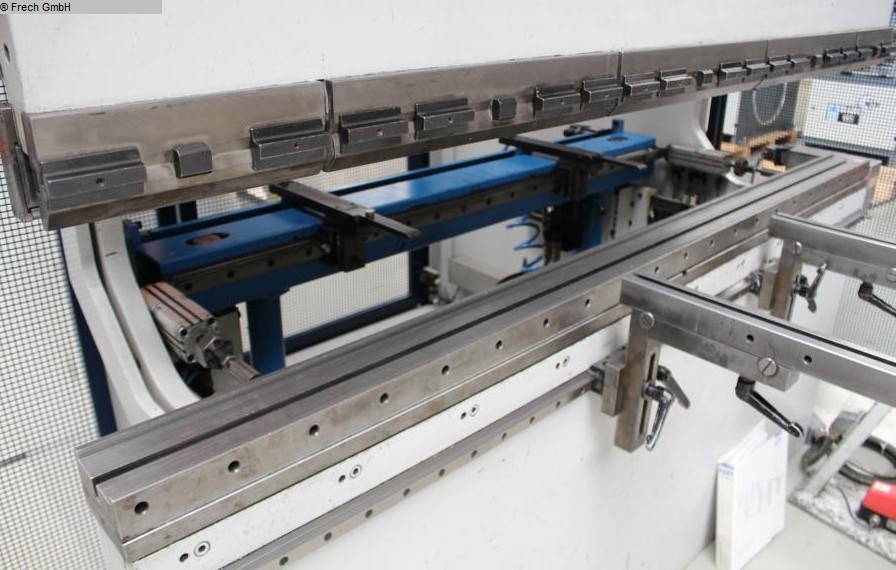

- EHT pneumatic tool clamping - upper tool
- EHT manual tool clamping - lower tool
* Tool holder 90.0 mm + 13.0 mm possible
- 1x freely movable 2-hand/foot control

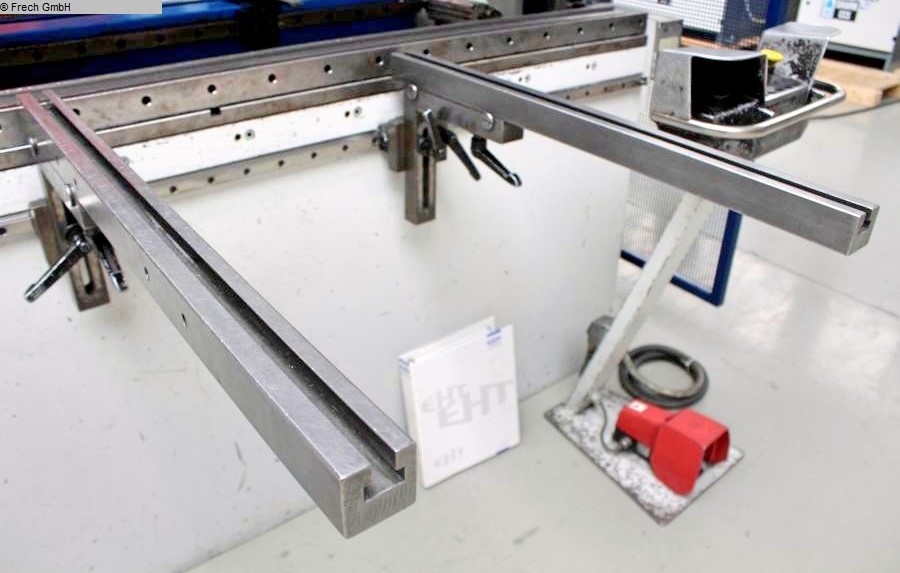

- 2x front, stable support arms including "sliding system"
- side protective device (swinging doors)
- rear protective device (swinging door)
- original operating instructions + circuit diagram etc.
* Special accessories included:
- Oil cooler for use in continuous operation
