Machine-data
| Stock no. | 1073-96989 |
| Category | Hydr. pressbrake |
| Make | ATLANTIC |
| Type | HPAT 40.300 |
| Year | 1991 |
| Control | conventional |
| Storage location | EXW- ex works |
| Origin | Belgium |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 300 t |
| chamfer lenght | 4100 mm |
| distance between columns | 3710 mm |
| stroke - stepless adjustable | 250 mm |
| column arm | 330 mm |
| dayligth | 500 mm |
| table height | 940 mm |
| table width | 250 mm |
| working feed | 7.0 mm/sec |
| return speed | 90.0 mm/sec |
| Control | konv. |
| operating pressure | max. 305 bar |
| voltage | 380 V |
| total power requirement | 22.5 kW |
| weight | 25200 kg |
| range L-W-H | 4320 x 2100 x 3500 mm |
** well-maintained condition (!!)
Equipment:

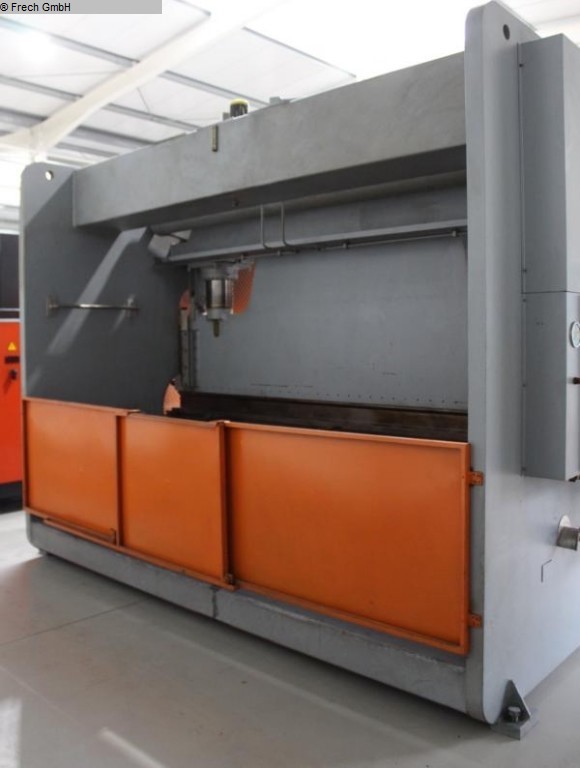

- simple, conventional hydraulic press brake

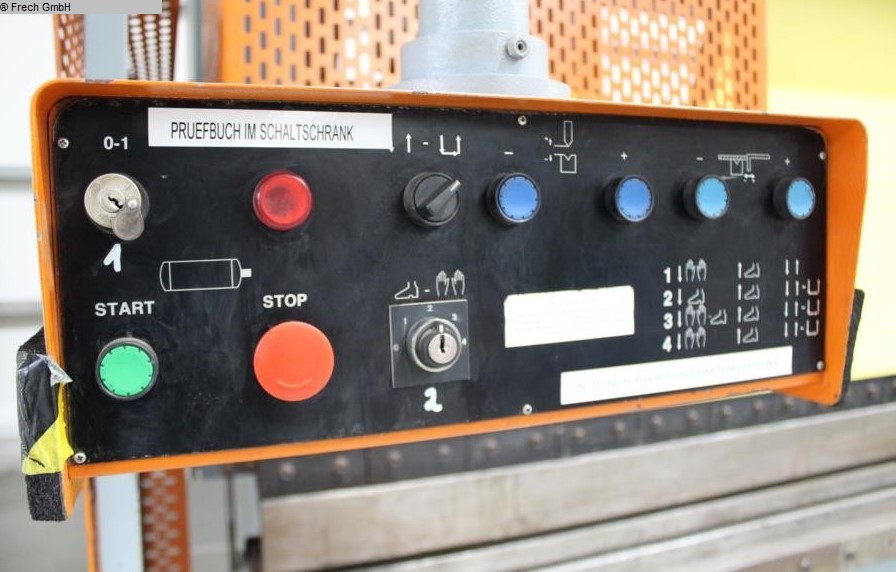

- swiveling control panel, left front
- electro-motoric back stop (X axis)
* adjustment via front control panel (button)
* with analog position display
* fine adjustment via handwheel, front
- with 3x stop fingers, manually adjustable
- electro-motoric depth adjustment (Y1+Y2 axis)
* with analog position display

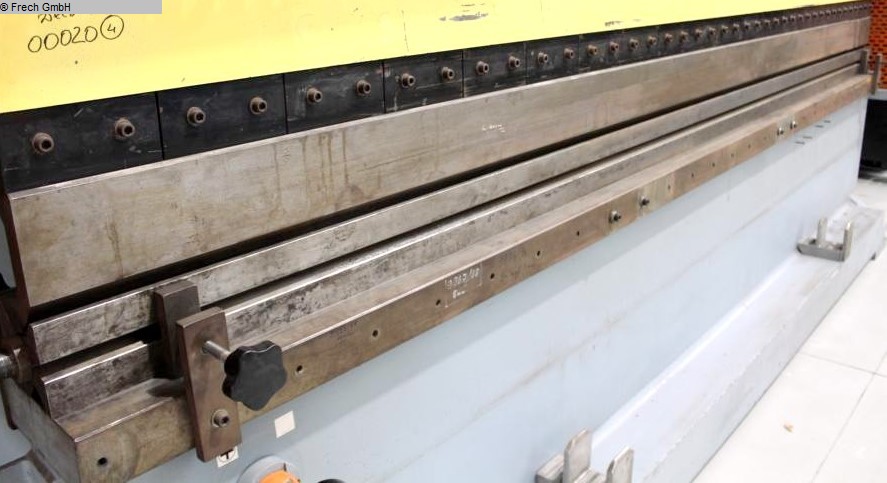

- 1x split set of 85° deer foot upper tool
- 1x MultiV - universal die block, with several V-openings
- 2x front, stable support arms
- 1x freely movable double foot switch
- 1x freely movable 2-hand control

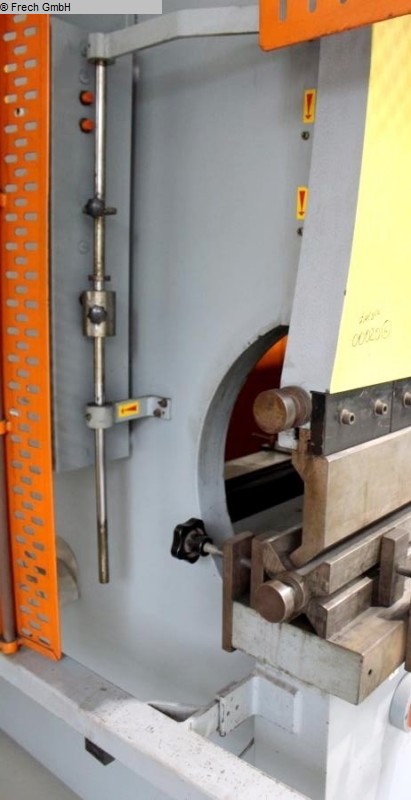

- side safety device (swivelling doors)
- rear safety device (sliding door)
- original operating instructions
Documents
no documents available
