Machine-data
| Stock no. | 1073-96981 |
| Category | Hydr. pressbrake |
| Make | PLACKE |
| Type | EQPB 2 - 50/1275 |
| Year | 2004 |
| Control | CNC |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 050 t |
| chamfer lenght | 1275 mm |
| distance between columns | 1040 mm |
| column arm | 250 mm |
| ram stroke speed | 225 mm/sec |
| work speed | 0 - 9.8 mm/sec |
| return speed | 160 mm/sec |
| work stroke | 215 mm |
| dayligth | 512 mm |
| table height | 800 mm |
| back stop - adjustable | 600 mm |
| control | DELEM DM 51 |
| operating pressure | max. 300 bar |
| oil volume | 150 ltr. |
| voltage | 400 V |
| engine output | 6.0 kW |
| Weight | 4300 kg |
| range L-W-H | 1930 x 1510 x 2390 mm |
** current new price approx. 80.000 euros
** special price on request
** good / well-maintained condition (!!)
-------------------------------------------------------

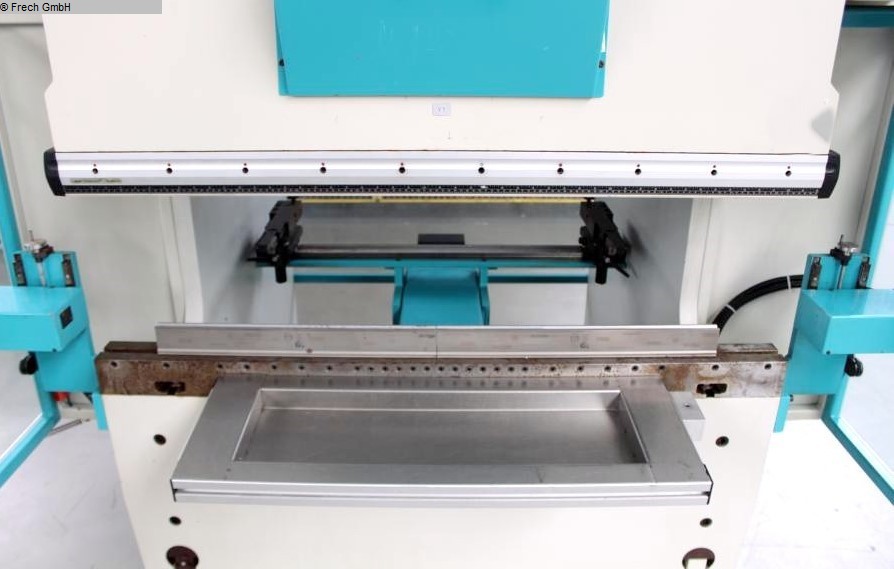

PLACKE electro-hydraulic CNC press brake
specially developed for the production of small parts
The advantages:
Low energy consumption
High operating comfort
Wide range of applications
Fast, robust, low-noise
With CNC control as standard
------------------------------------------------------
Equipment:
- CNC electro-hydraulic press brake with 1x working cylinder

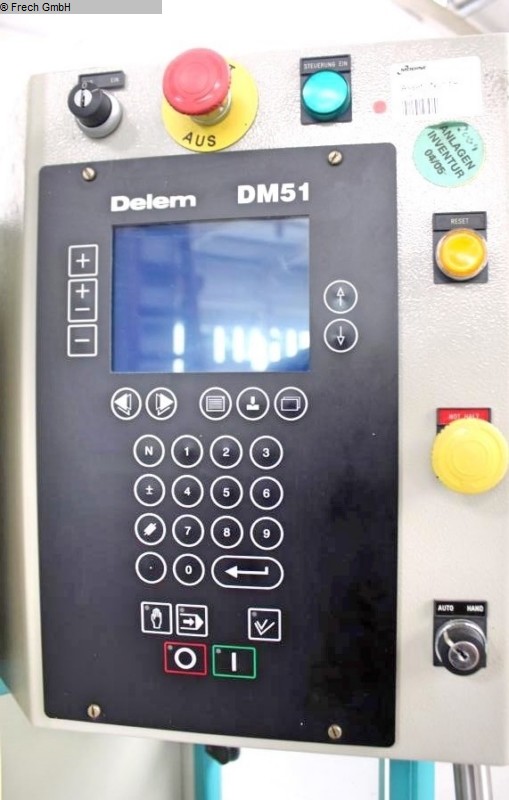

- DELEM CNC control model "DM 51"
- CNC controlled axis: Y1 - Y2 - X

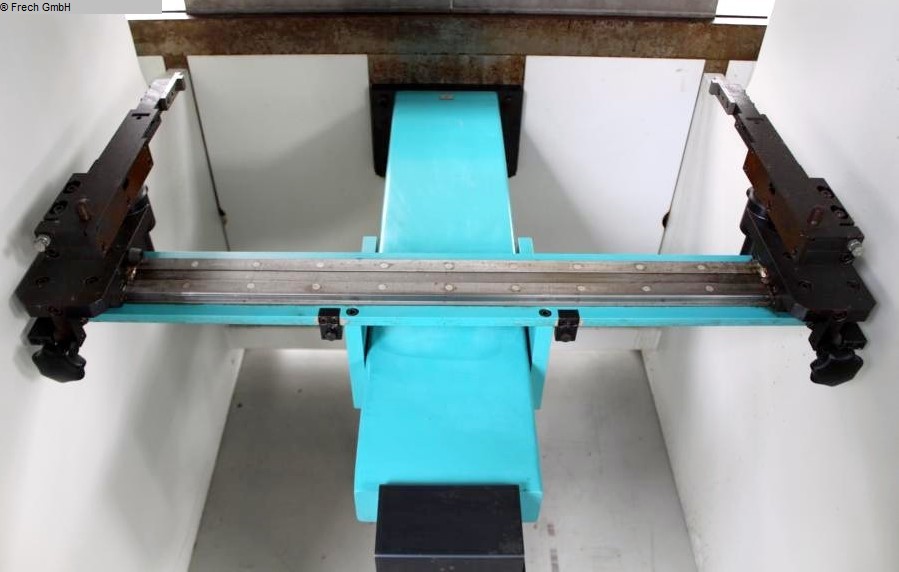

- CNC electro-motorized back stop
* Travel path: X = max. 600 mm
* Travel speed X axis .. max. 300 mm/s
* Positioning accuracy .. +/- 0.02 mm
* with 2x manually adjustable stop fingers (R+Z axis)

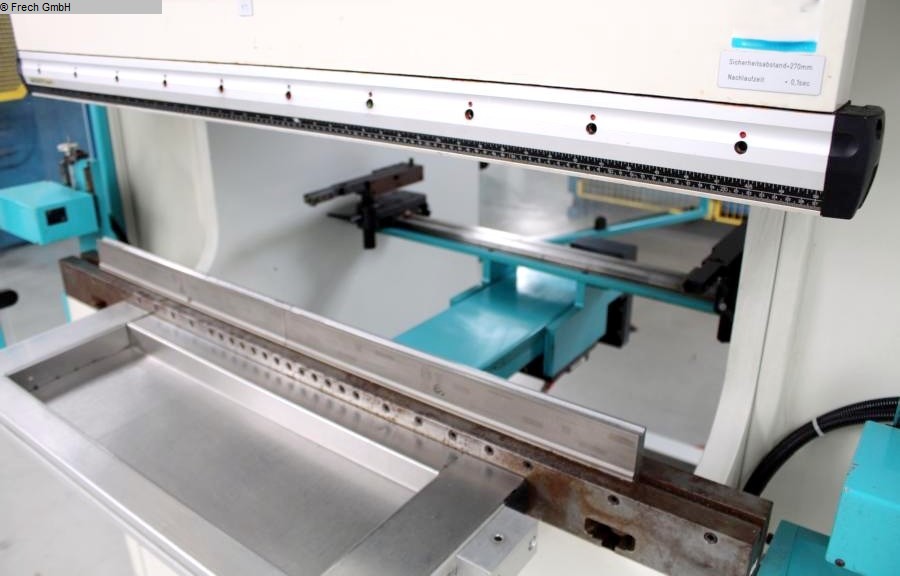

- WILA standard - manual upper tool clamping
- WILA standard - manual lower tool clamping
- PLACKE safety device at the front: light barrier
- side protective device (swivel doors)
- rear protective device (swivel + lockable door)
- front storage area

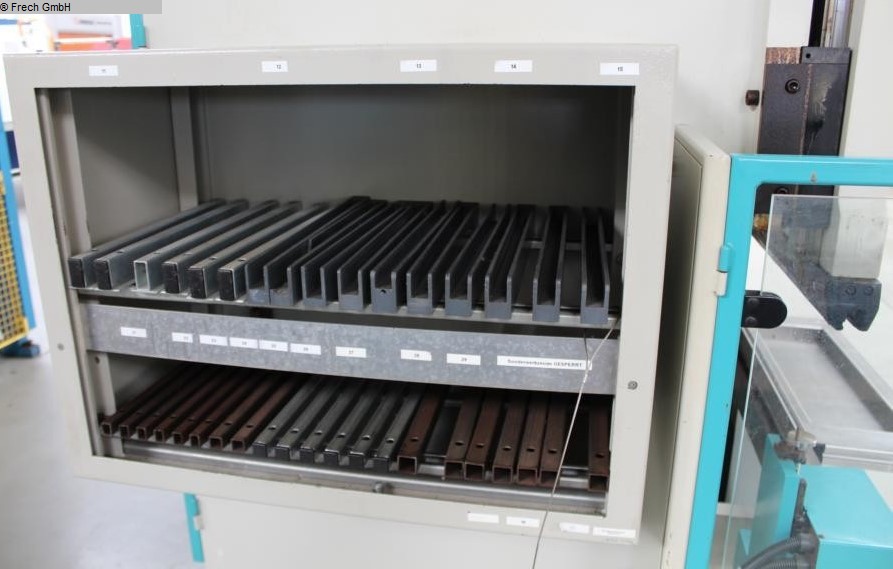

- side sorting system for bending tools

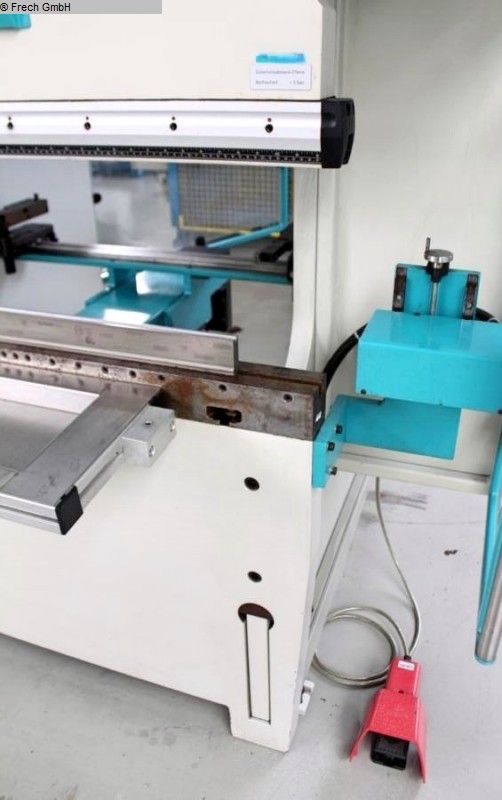

- 1x freely movable foot control
- original operating instructions including circuit and hydraulic diagram
Documents
no documents available
