Machine-data
| Stock no. | 1073-96956 |
| Category | Hydr. pressbrake |
| Make | TRUMPF |
| Type | TRUMABEND V 130 |
| Year | 1996 |
| Control | CNC |
| Storage location | EXW- ex works |
| Origin | Austria |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 130 t |
| chamfer lenght | 3060 mm |
| distance between columns | 2690 mm |
| column arm | 410 mm |
| stroke | 215 mm |
| dayligth | 385 mm |
| ajustment speed | 200 mm/sec |
| working feed | 1-10 mm/sec |
| return speed | 135 mm/sec |
| table width | 120 mm |
| table height | 1050 mm |
| tiltable up to | +/- 10 mm |
| Number of working hours | 53.820 h |
| compressed air | 5.0 - 7.0 bar |
| oil volume | 250 l |
| operating pressure | 340 bar |
| voltage | 400 V |
| total power requirement | 16.0 KVA |
| weight of the machine ca. | 11250 kg |
| range L-W-H | 3640 x 2210 x 2375 mm |
Equipment:
- CNC electro-hydraulic press brake

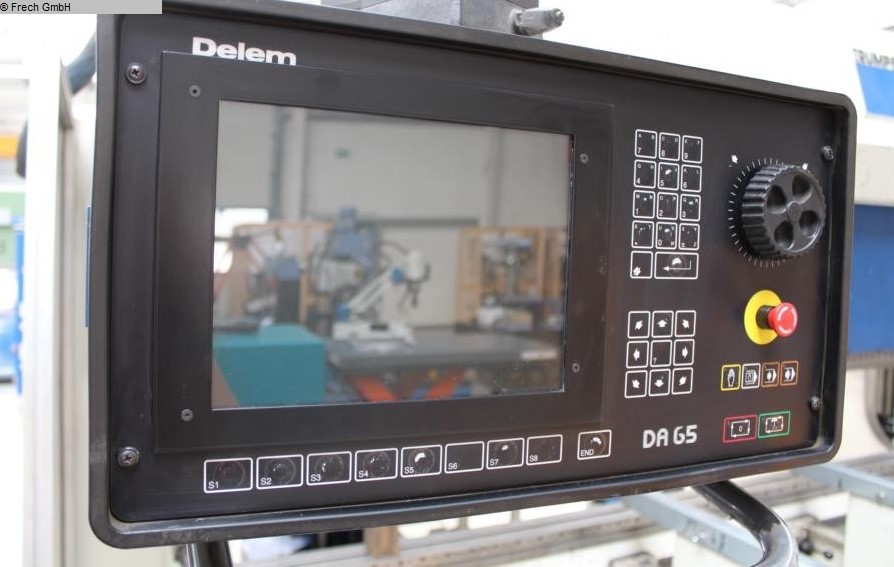

- including DELEM CNC control model DA 65

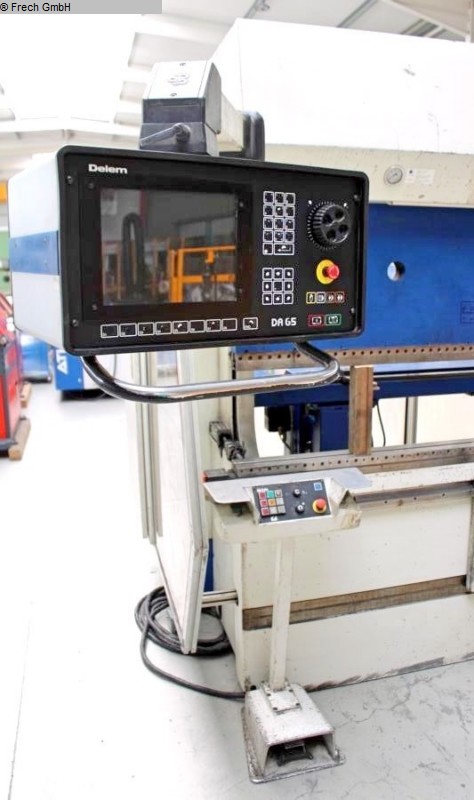

* swiveling control panel, front left
* 2D graphic programming & product display
* tool & program library
- CNC controlled axes:
* Y1 + Y2 / X / R / Z1 + Z2 / I axis

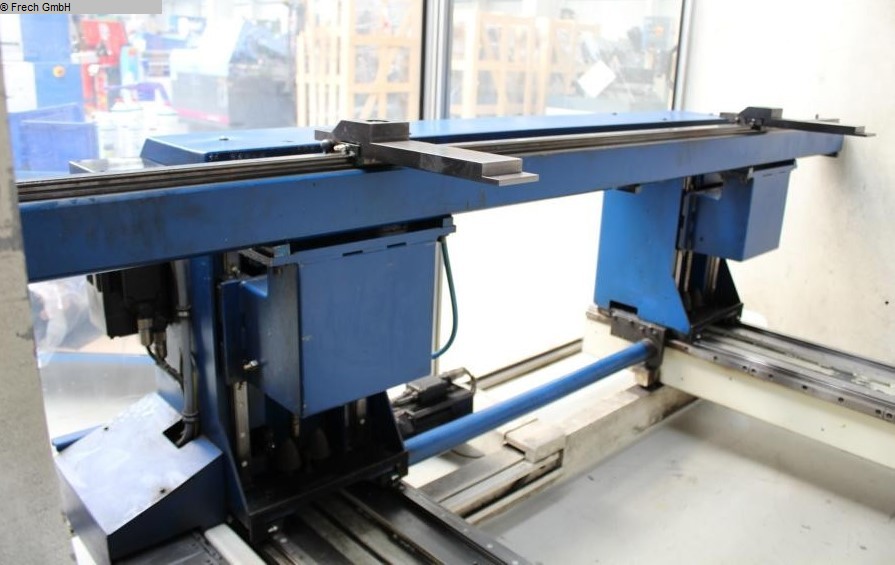

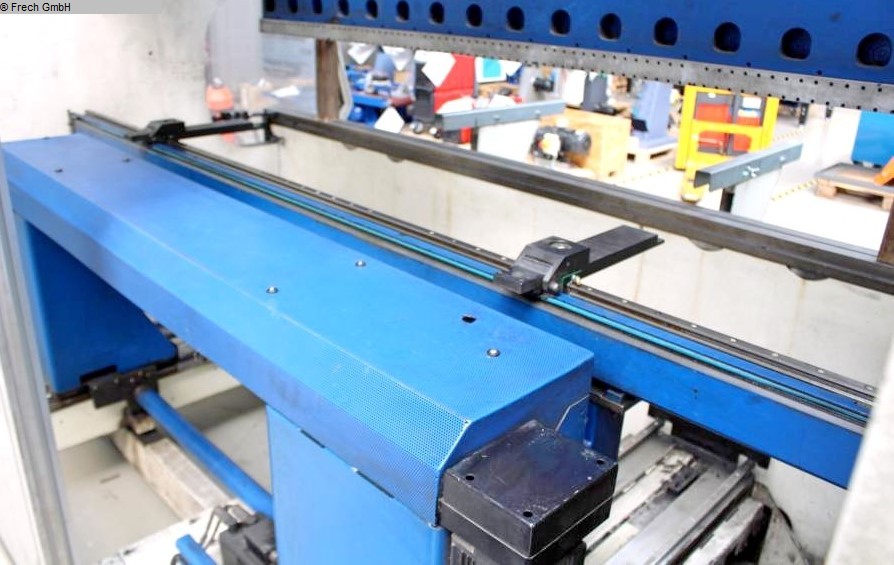

- CNC controlled back stop (X axis)
- CNC controlled height adjustment of the back stop (R axis)
- CNC controlled adjustment of the stop fingers (Z1 + Z2 axis)
- CNC controlled, pneumatic die displacement (I axis)

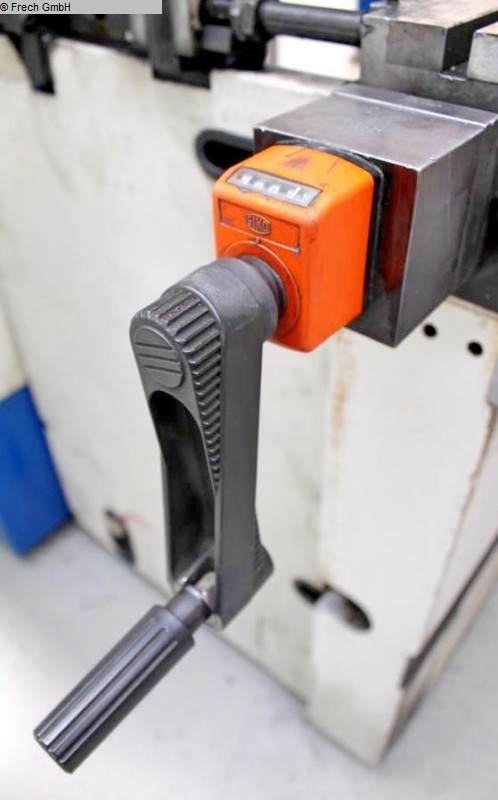

- WILA manual table crowning, including analogue value display
- TRUMPF hydraulic upper tool clamp
- TRUMPF manual lower tool clamp
- 1x freely movable 2-hand / foot control
- Safety device at the rear (sliding door)
- Safety device at the side (swivel door)
- original operating instructions + CE declaration + Circuit diagram
