Machine-data
| Stock no. | 1073-96944 |
| Category | Hydr. pressbrake |
| Make | EHT |
| Type | VARIOPRESS 225-30 |
| Year | 1997 |
| Control | CNC |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 225 t |
| chamfer lenght | 3050 mm |
| distance between columns | 2550 mm |
| column arm | 300 mm |
| ajustment speed | 110 mm/sec |
| work speed | 9.0 mm/sec |
| return speed | 130 mm/sec |
| work stroke | 240 mm |
| dayligth | 320 - 560 mm |
| table height | 1000 mm |
| table width | 200 mm |
| oil volume | 350 ltr. |
| operating pressure | max. 296 bar |
| air pressure | 4.5 - 6.0 bar |
| voltage | 400 Volt |
| total power requirement | 18.5 kW |
| weight | 14900 kg |
| range L-W-H | 5180 x 2400 x 3100 mm |
Furnishing:

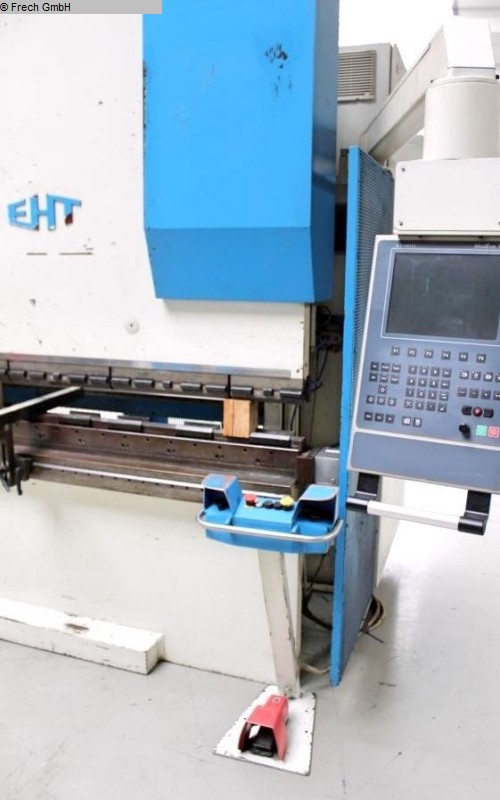

- electro-hydraulic CNC die bending/press brake

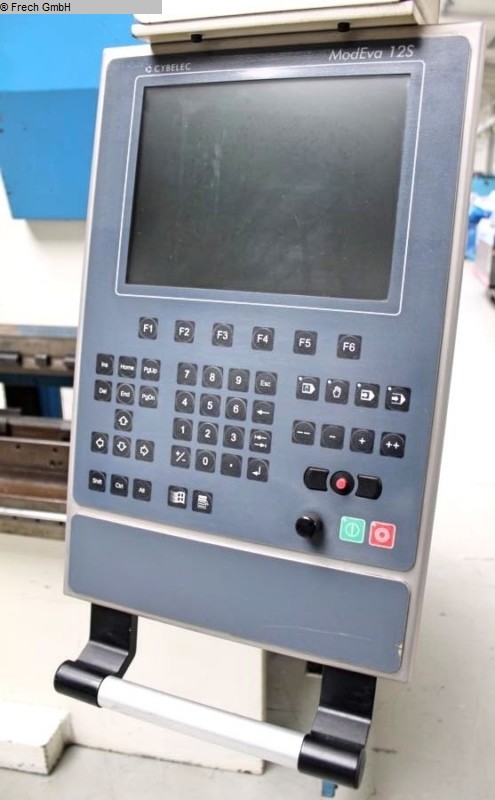

- CYBELEC CNC control "ModEva 12S", swiveling at the front right
* High-resolution graphic color screen 14 inches
* Representation as a line, area or volume drawing of the product
* Clear, concise menus in the operator's language
* Large tools and products library
- CNC-controlled back gauge adjustment (X-axis)
* Stop range X axis of bending line .. 5.0 - 1.000 mm
* Adjustment speed .. max. 250 mm/sec.
- CNC-controlled vertical adjustment of the stop fingers (R axis)
* Adjustment range of table surface .. 115 - 265 mm
* Adjustment speed .. max. 100 mm/sec.
* Adjustment via SERVO motors
- CNC-controlled adjustment of the stop fingers left-right (Z1+Z2 axis)
* Adjustment range Z1 .. 405 - 2565 mm
* Adjustment range Z2 .. 485 - 2645 mm
* Adjustment speed .. max. 1000 mm/sec.
- WILA CNC-controlled electric table crowning
- pneumatic EHT upper tool clamping
- manual lower tool clamping
- 1x freely movable 2 hand/foot control

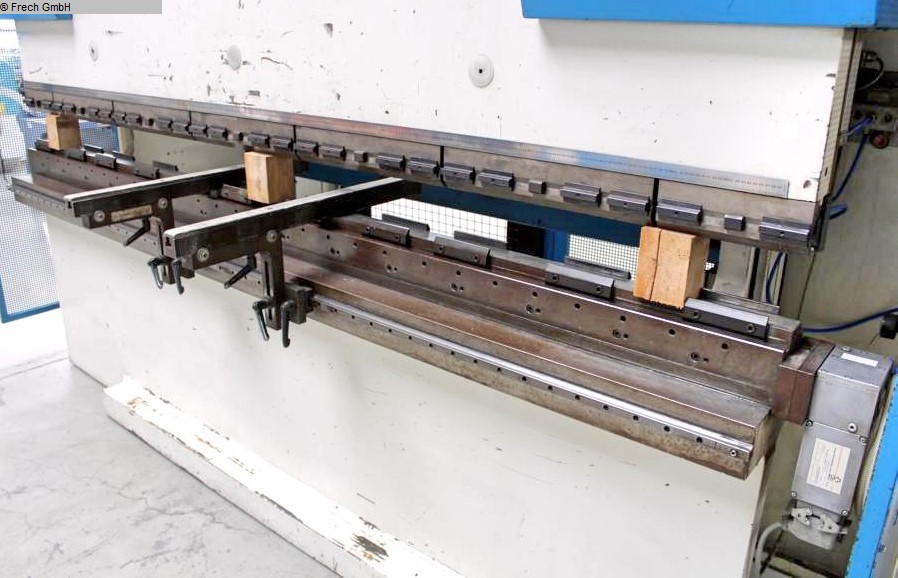

- 2x front, movable support arms

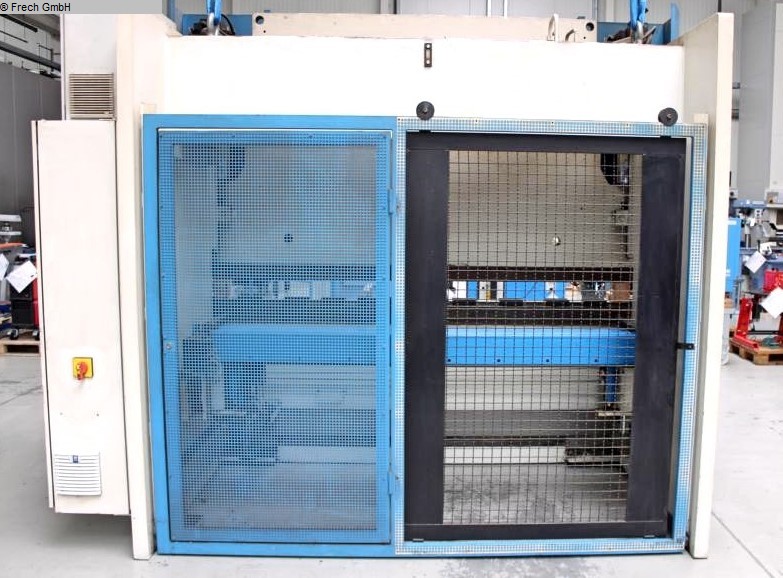

- rear protective device (sliding protective grille)
- side protection device (pivoting protective grille)

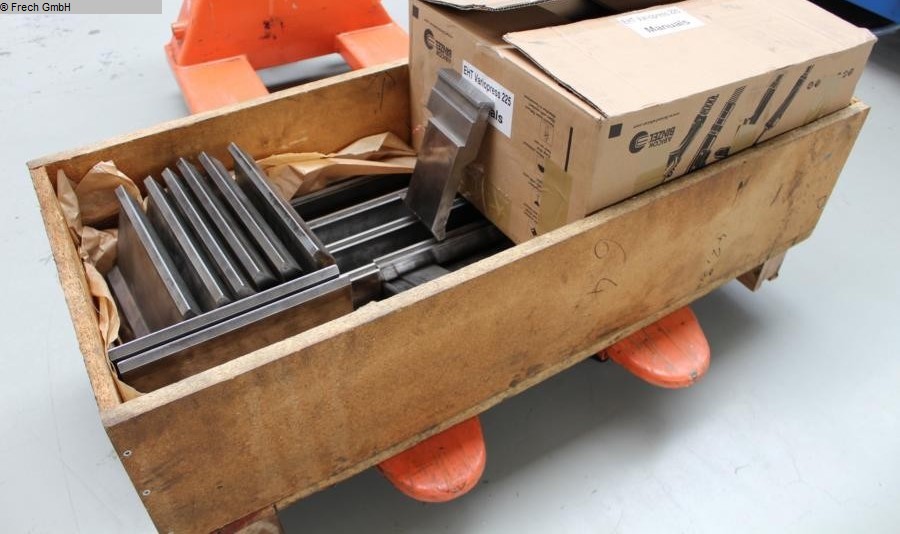

- 1x set of EHT deer foot upper tool - split (3.000 mm)
- 1x set of EHT lower tools - split (3.000 mm)
- original operating instructions (machine + control)
Documents
no documents available
