Machine-data
| Stock no. | 1073-94301 |
| Category | Plate Shear - Hydraulic |
| Make | DURMA |
| Type | ES 3006 |
| Year | 2006 |
| Control | NC |
| Storage location | EXW- ex works |
| Origin | Turkey |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 3100 mm |
| plate thickness | 6,00 mm |
| thickness at "Niro-steel" | 4,00 mm |
| distance between columns | 3120 mm |
| down holder | 14 Stück |
| cutting angle | 1°5 |
| no. of strokes | 14 Hub/min |
| control | ENC 100 |
| table width | 500 mm |
| work height max. | 880 mm |
| oil volume | 170 ltr. |
| total power requirement | 11.0 KW |
| weight | 5550 kg |
| range L-W-H | 3750 x 1950 x 1650 mm |
** Machine was used for ALU processing
** no "heavy" sheet metal processing
** good condition (!)
** new price ~ 32.000 Euro
----------------------------------------------------
Swing cut guillotine shear with fixed cutting angle

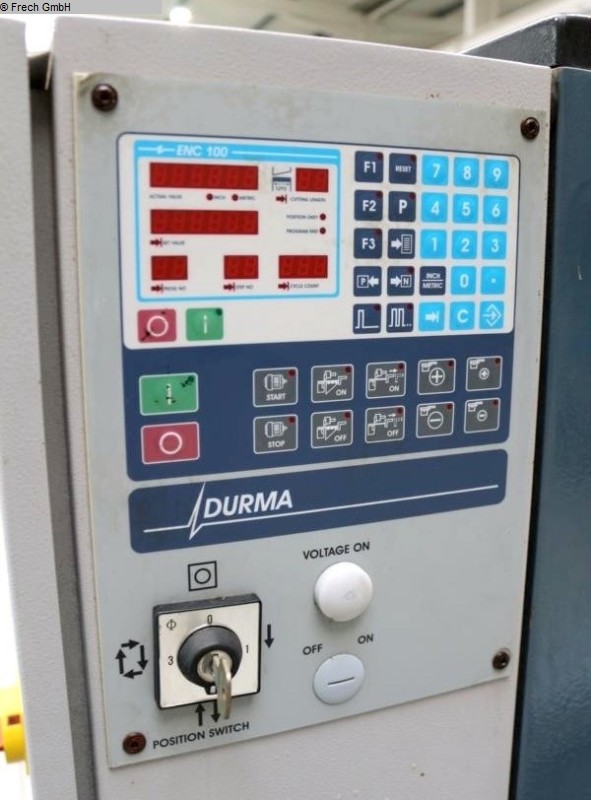

* with DURMA ENC 100 NC control unit
* manual cutting gap adjustment from the front
----------------------------------------------------
Equipment:
- electro-hydraulic guillotine shears "swing cut"
- with DURMA "ENC 100 NC" control unit
* Backgauge preselection - X axis
* Number of pieces (in automatic mode)
* Control panel, front left
* Retraction from backgauge on/off
* Input of target/actual value procedure with button
- NC electro-motorized backgauge (X axis)
* on recirculating ball screws
* Traversing speed 120 mm/sec.
- Manual cutting gap adjustment, from the front
- hydraulically acting hold-down device

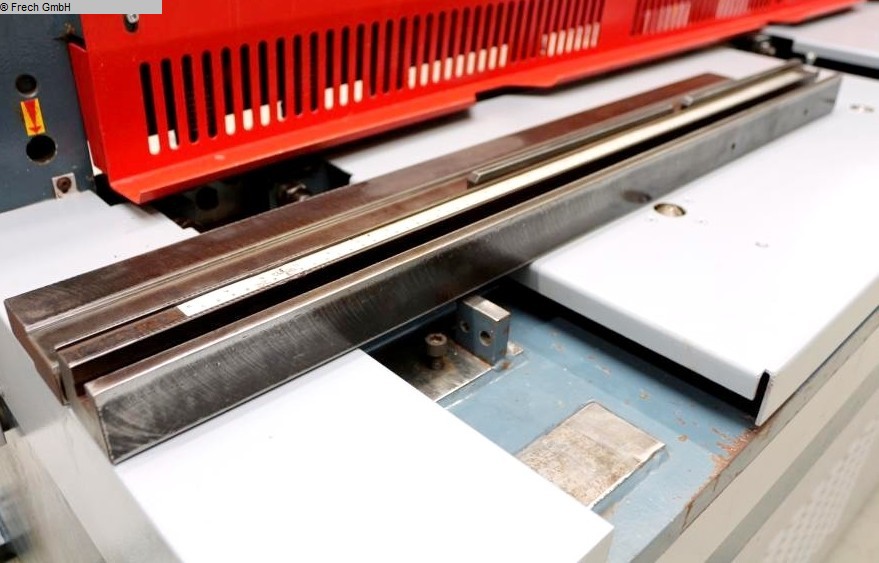

- 1x side stop 1,000 mm

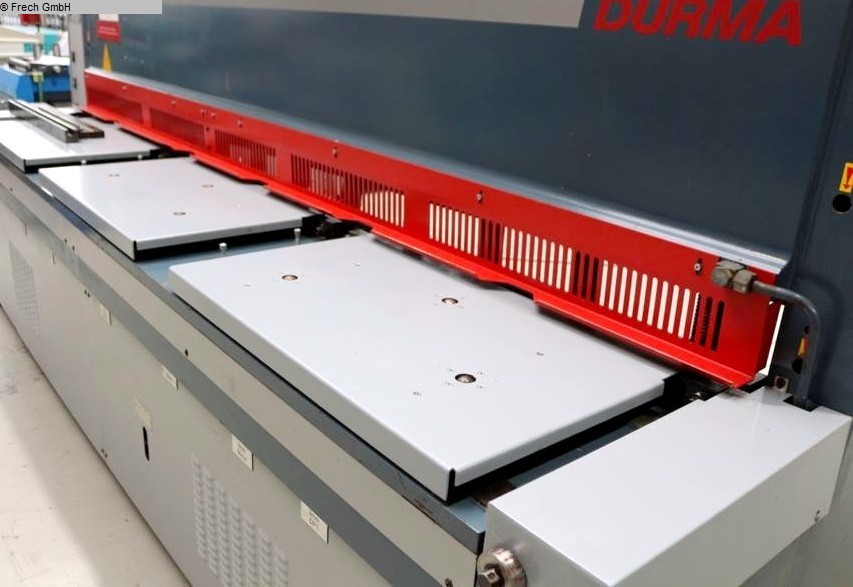

- 2x front support arms
- Ball rollers in the front support table
- Light barrier behind the machine (safety device)
- 1x free-moving foot switch

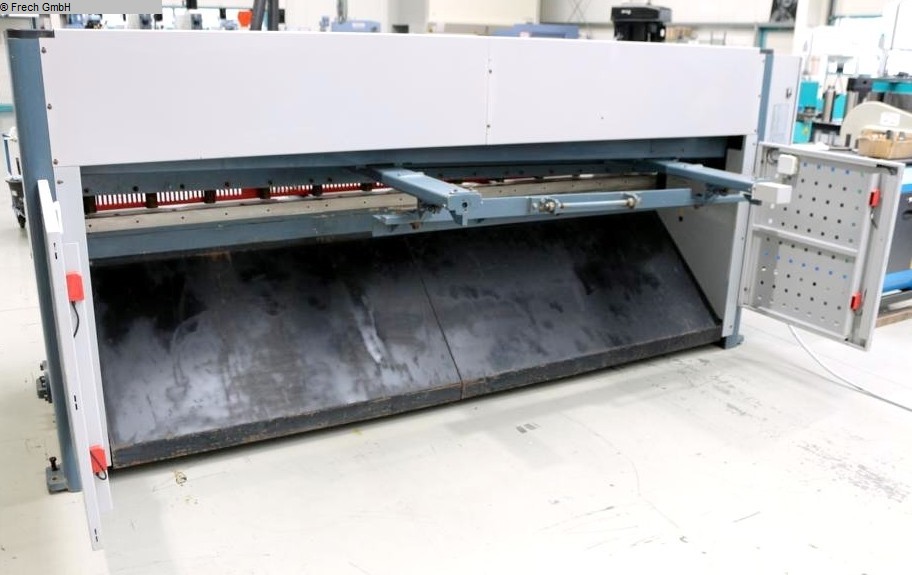

- Rear sheet metal chute
- Operating instructions
Documents
no documents available
