Machine-data
| Stock no. | 1073-94300 |
| Category | Plate Shear - Hydraulic |
| Make | DURMA |
| Type | DHGM 3013 |
| Year | 2000 |
| Control | conventional |
| Storage location | EXW- ex works |
| Origin | Turkey |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 3100 mm |
| plate thickness | 13,00 mm |
| thickness at "Niro-steel" | 8,00 mm |
| down holder | 14 Stück |
| no. of strokes | max. 11 Hub/min |
| cutting angle | 1°15 |
| work height max. | 770 mm |
| column arm | ? mm |
| oil volume | 300 ltr. |
| control | konv. |
| total power requirement | 15.0 kW |
| weight | 11800 kg |
| range L-W-H | 4255 x 2250 x 2400 mm |
Features:
- Robust electro-hydraulic swing pruning shears
- Operation, swivels to the front left

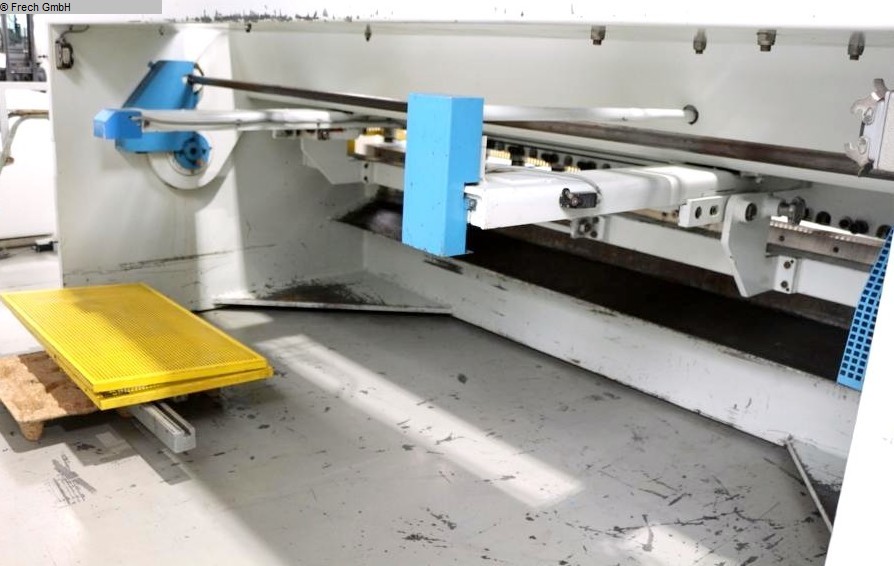

- Electro-motorized backgauge
* on recirculating ball screws

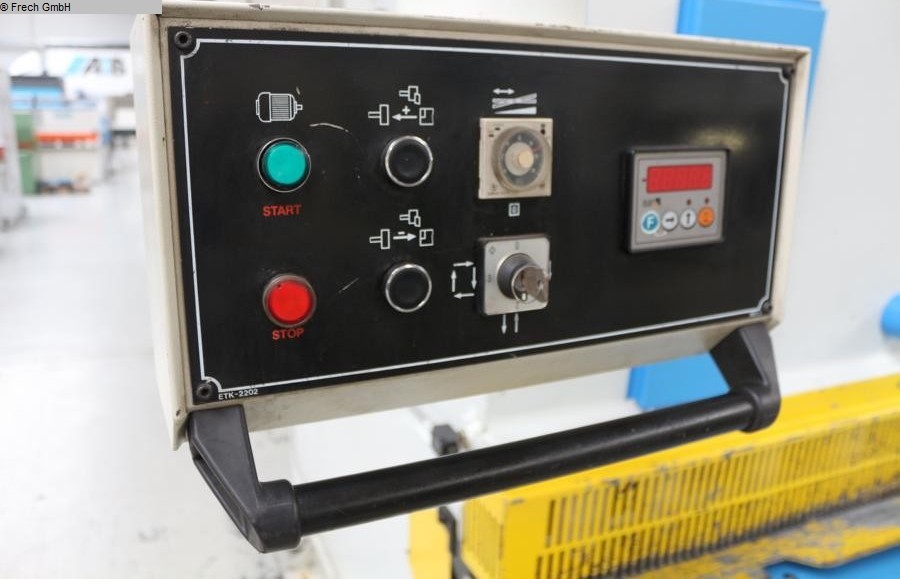

* Movement by push-button (forwards backwards)
* including ELGO digital position indicator

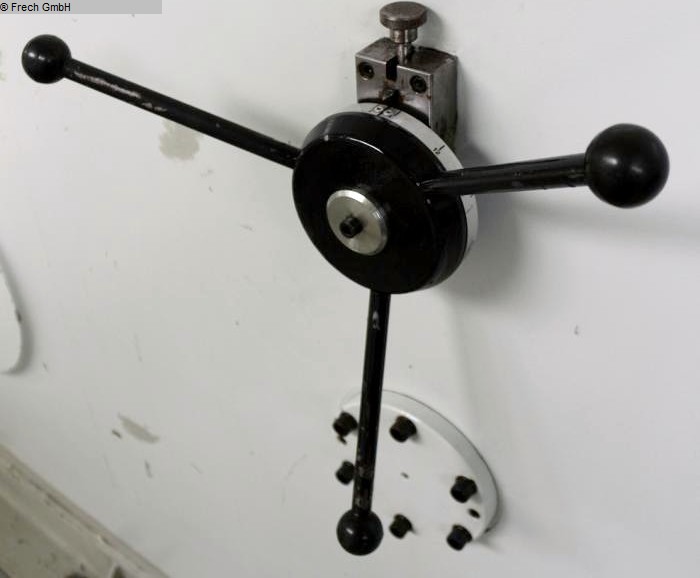

- Manual quick cutting gap adjustment
* by eccentric (right side stand)
- Machine stand with overhang
- 1x long side stop, with mm scale
- 2x front support arms, with mm scale
- Ball rollers in the front support table

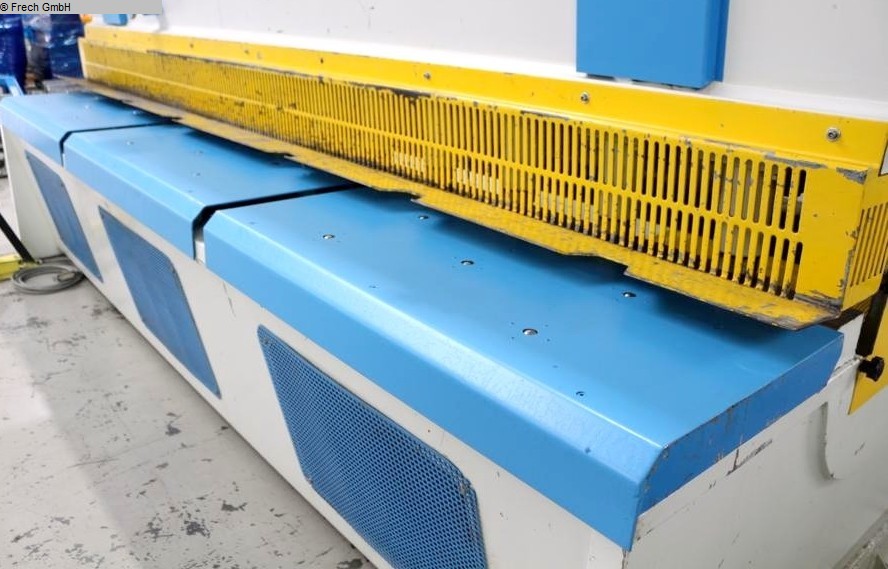

- Hinged front finger guard
- 1x free-moving foot switch
- Rear safety device (protective grille)
- 2x front emergency stop button
- Operating instructions (PDF)
Documents
no documents available
