Machine-data
| Stock no. | 1073-94293 |
| Category | Plate Shear - Hydraulic |

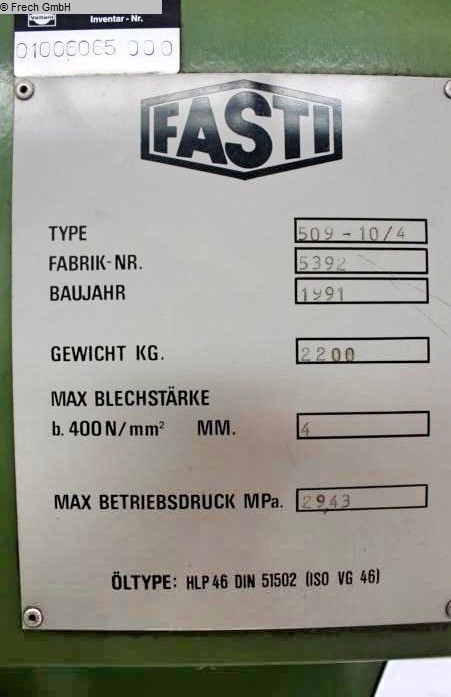

| Make | FASTI |
| Type | 509-10/4 |
| Year | 1991 |
| Control | NC |
| Storage location | 48683 Ahaus |
| Origin | Germany |
| Delivery time | available // CHECKED |
| Quotation | ex works 48683 // free loading |
| Price | |
Technical details
| sheet width - max. | 1010 mm |
| plate thickness | 4,00 mm ST |
| plate thickness | 2,50 mm VA |
| plate thickness | 6,00 mm ALU |
| number of strokes - loaded | max. 20 Hübe/min |
| cutting angle | 1.5 ° |
| work height max. | 900 mm |
| Control | ELGO |
| total power requirement | 5.5 kW |
| weight of the machine ca. | 2200 kg. |
| range L-W-H | 1500 x 2155 x 1606 mm |
** from a maintenance workshop
** good condition (!!)
Equipment:

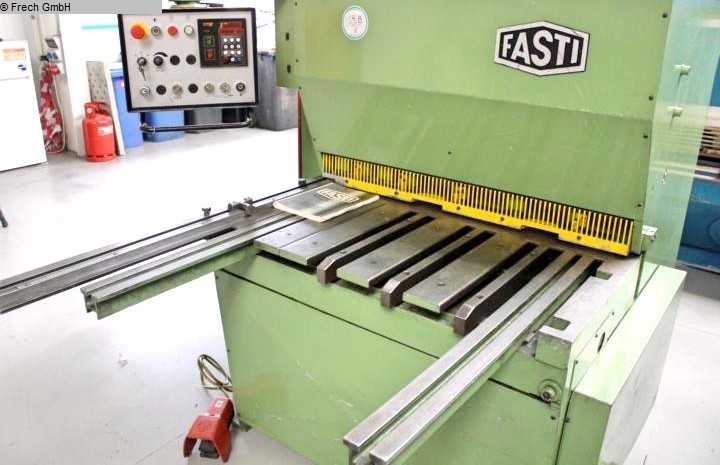

- Robust NC electro-hydraulic guillotine shear
- NC electro-motorized backgauge

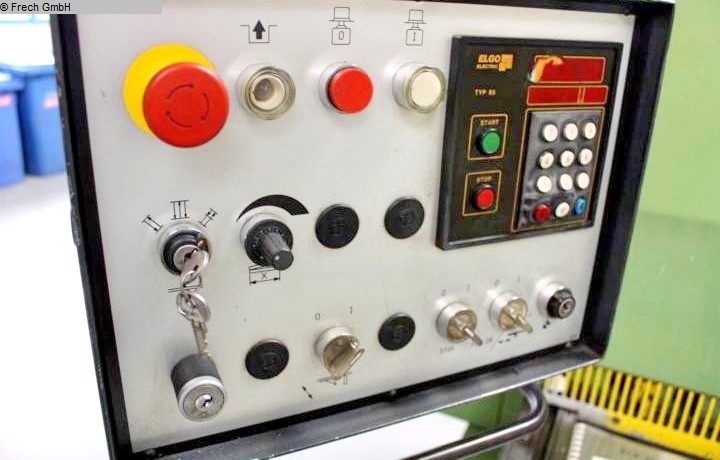

* Includes NC ELGO positioning control "TYP 85"
- Electric cutting length limiter
- Manual cutting gap adjustment

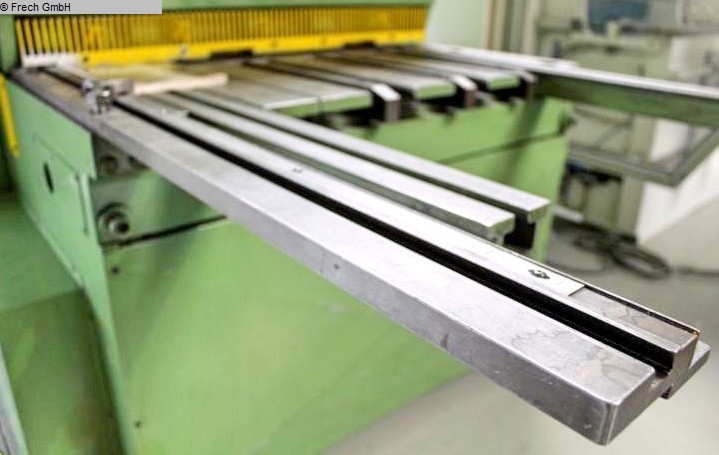

- 1x side stop with scale

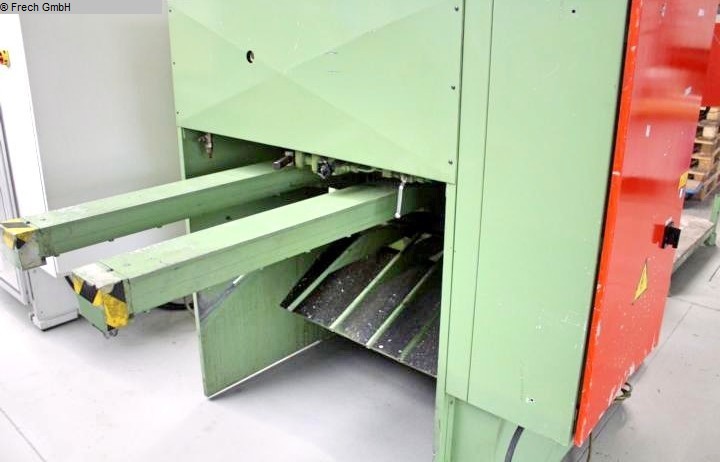

- 2x support arms
- 1x freely movable foot switch
- Original operating instructions
* Special accessories included:
- Pneumatic holding device for thin sheet metal blanks
Documents
no documents available
