Machine-data
| Stock no. | 1073-7845 |
| Category | Decoilers for Coils |
| Make | DIMECO |
| Type | 2370 DFPS |
| Year | 2001 |
| Control | conventional |
| Storage location | EXW- ex works |
| Origin | France |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width - max. | 0410 mm |
| coil weight | 2,0 t |
| coil internal dia. | 380 - 520 mm |
| coil outside - diam. ca. | 1400 mm |
| total power requirement | 2,2 + 1,1 to kW |

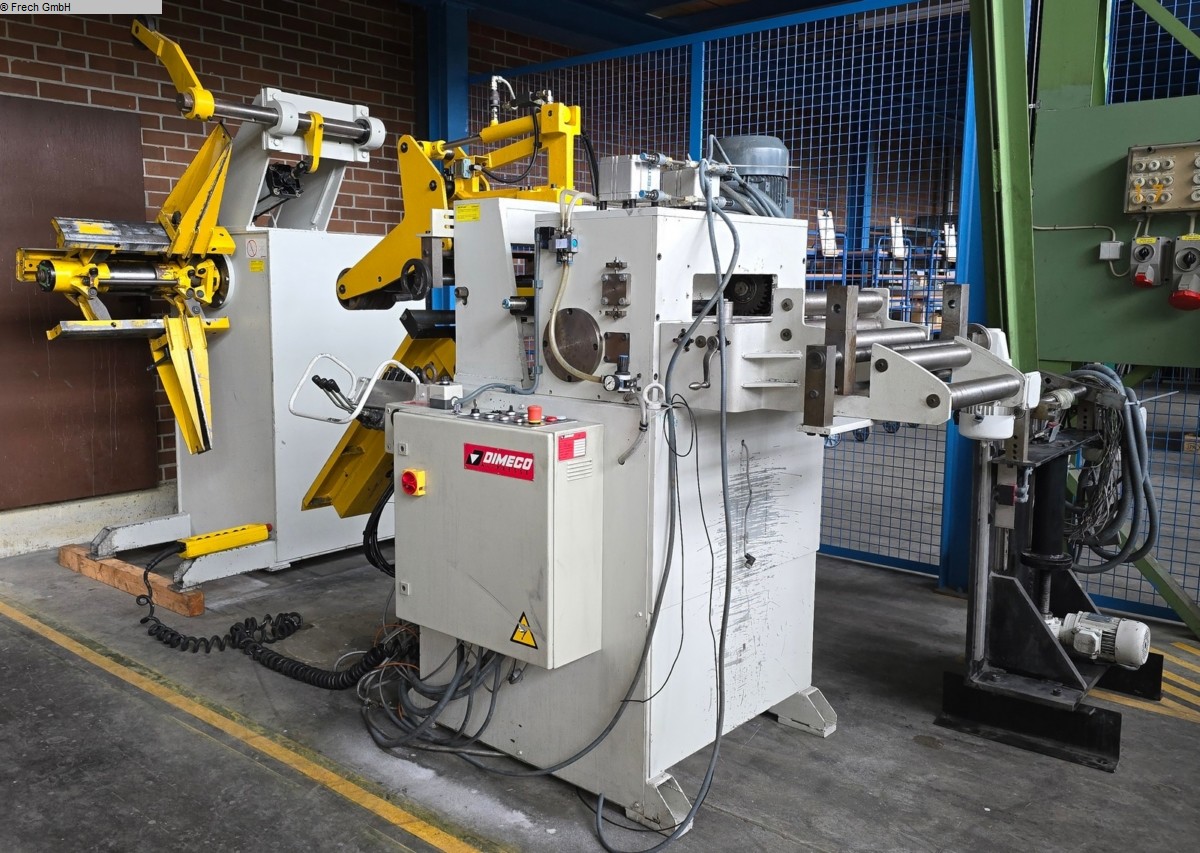

with take-off device
Space requirement reel (W x D x H) 1.40 x 1.60 x 2.20 m
Space requirement complete (W x D x H) 2.60 x 1.20 x 2.30 m

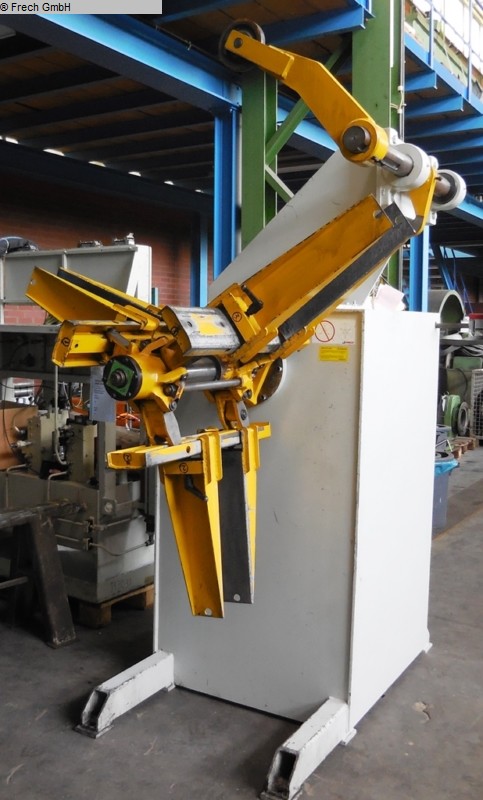

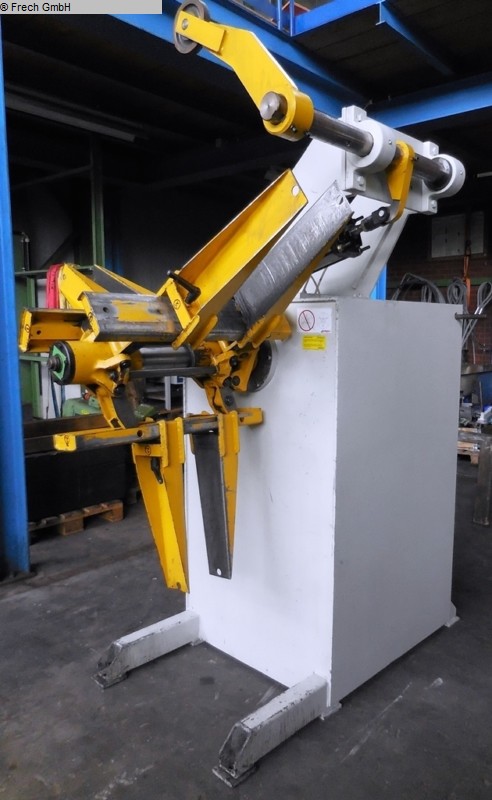

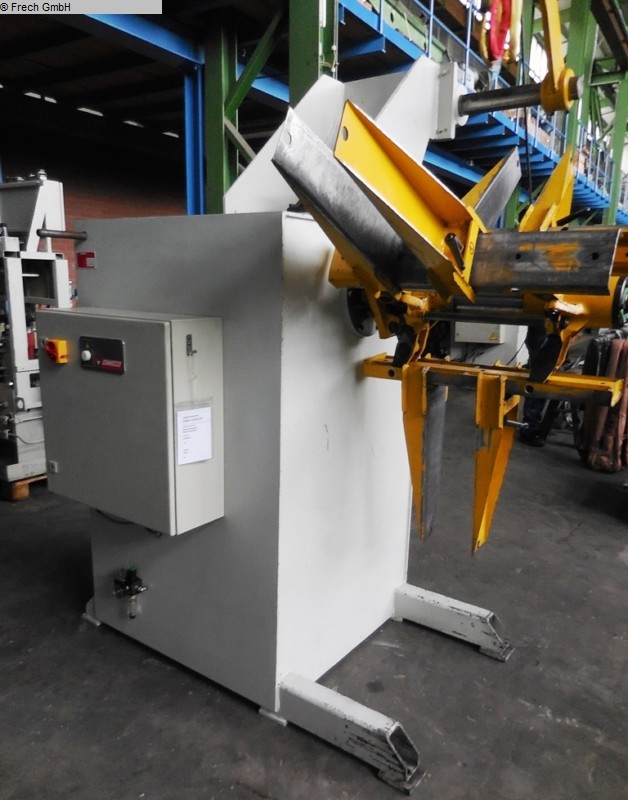

Unwind reel 2370 DFPS
without drive, with pneumatic overrun brake, hydraulic central spreader, pneumatic
pressing device

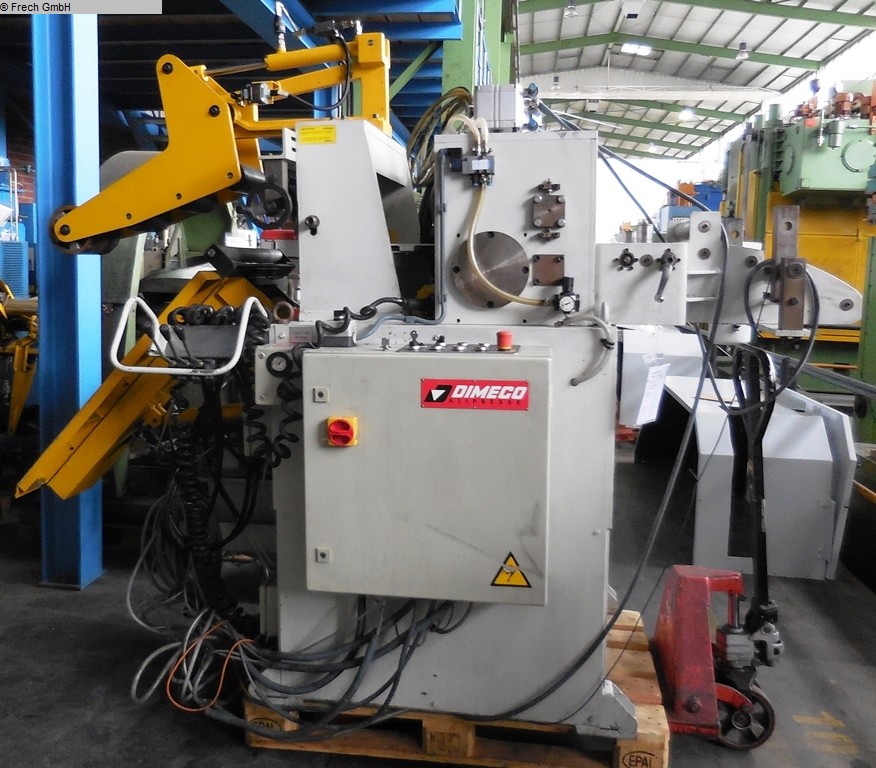

Take-off device / hydraulic threading aid 235 D
with infinitely variable drive,
belt loop control via ultrasound
Material thickness up to approx. 6.0 mm
Take-off roller diameter approx. 160 mm
As it stands and lies, WITHOUT being put into operation,
Design as described in the technical data sheet
Documents
no documents available
