Datenblatt

Machine-data

Stock no.1073-7821
CategoryDecoilers for Coils
MakeNN
Type
Year2024 Check
Controlconventional
Storage locationD-74889 Sinsheim/ Germany
OriginGermany
Delivery timeimmediately
QuotationEXW- ex works (free on Truck)
Price
on demand

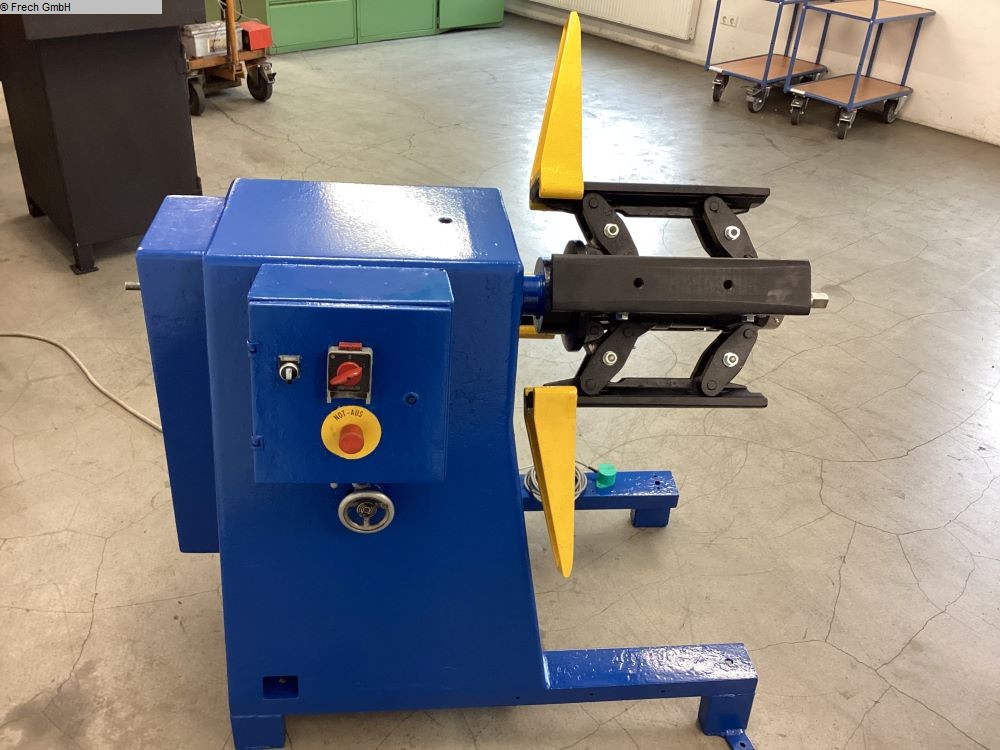

Decoilers for Coils von NN Typ: Gebrauchtmaschinen
Decoilers for Coils von NN Typ: Gebrauchtmaschinen
Decoilers for Coils von NN Typ: Gebrauchtmaschinen

Technical details

material width0380/460 mm
coil weight1,00 t
coil internal dia.340 - 440 mm
coil outside dia.1100 mm
expansionmechanisch
total power requirement1,50 kW
weight of the machine ca.0,500 t
dimensions of the machine ca.1,40 x 1,10 x 1,40 m
with bundle attachment arms at the back, sheet width 380 mm
without bundle attachment arms, sheet width 460 mm
hand crank
3 bundle attachment arms
right-left rotation
tape scanning via proximity switch (start-stop) with time delay
speed control via handwheel 4-22 rpm
mechanical brake
