Machine-data
| Stock no. | 1073-76651 |
| Category | Folding Machine |

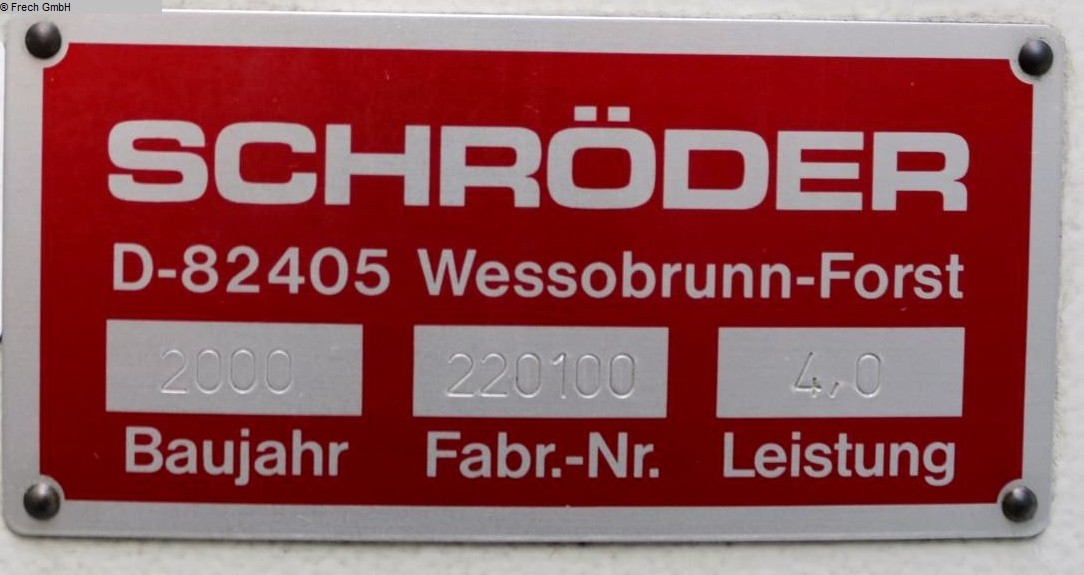

| Make | SCHROEDER |
| Type | MAK 3 2500/4.0 |
| Year | 2000 |
| Control | CNC |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 2520 mm |
| plate thickness | 4,00 mm ST |
| thickness at "Niro-steel" | 2,00 mm |
| upper clamping bar adjustment | 250 mm |
| adjustment speed | 100 mm/sec |
| Adjustment folding beam | 80.0 mm |
| Bending speed | 120 Grad/sec |
| compressed air | 6.0 bar |
| work height max. | 869 mm |
| control | POS 2000 |
| total power requirement | 6.0 kW |
| voltage | 400 V |
| weight | 4100 kg |
| range L-W-H | 4120 x 2400 x 2090 mm |
** current list price ~ 90.000 euro
** from a maintenance workshop
** with excellent equipment (!!)
** new touchscreen installed in 2023
Features:

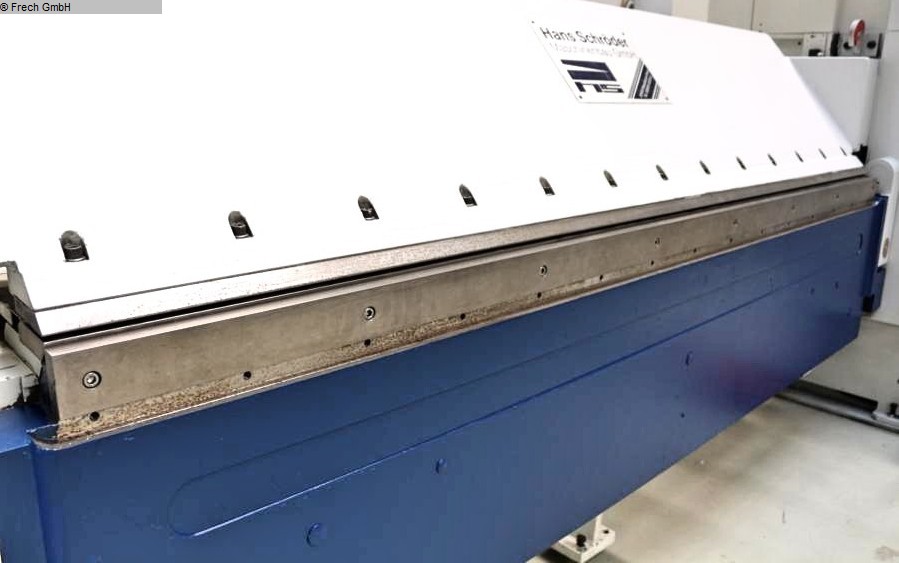

- CNC electro-motorized universal bending machine
* ??High-precision mechanics with modern control technology
* For individual and series production
* Robust high-speed machine with high axis speeds
* Torsion-resistant welded construction

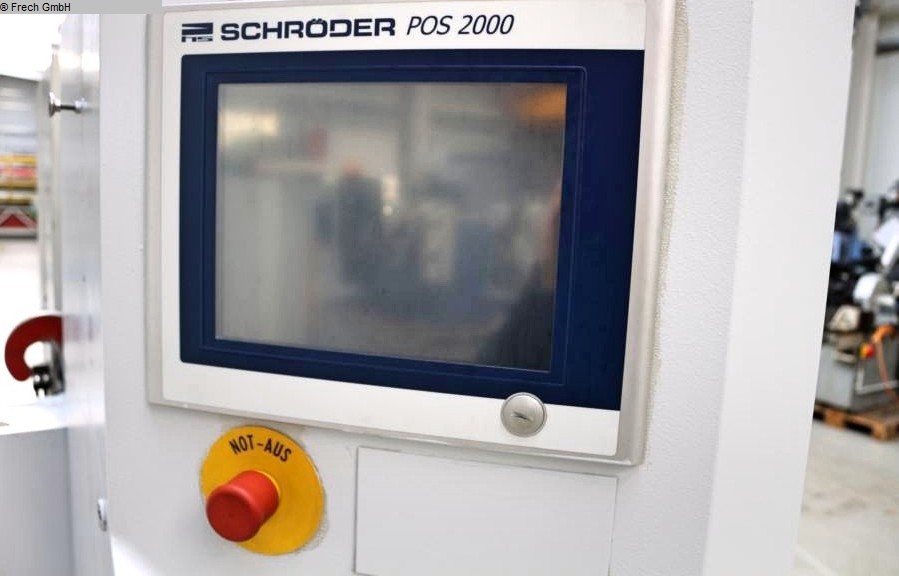

- SCHRÖDER CNC control model POS 2000
* Control panel front right (operable with PC mouse)
* Touchscreen replaced in 2023
* Color display
* USB interface
* Automatic cutting calculation
* Material and tool library
* Dimensionally accurate bending simulation
* Windows XP operating system
* Swiveling control, front right
- Servo inverter-controlled drives
* For bending/upper beam & electric backgauge
- CNC motorized lower beam adjustment
- CNC electro-motorized Backgauge
* Travel speed 300 mm/sec.

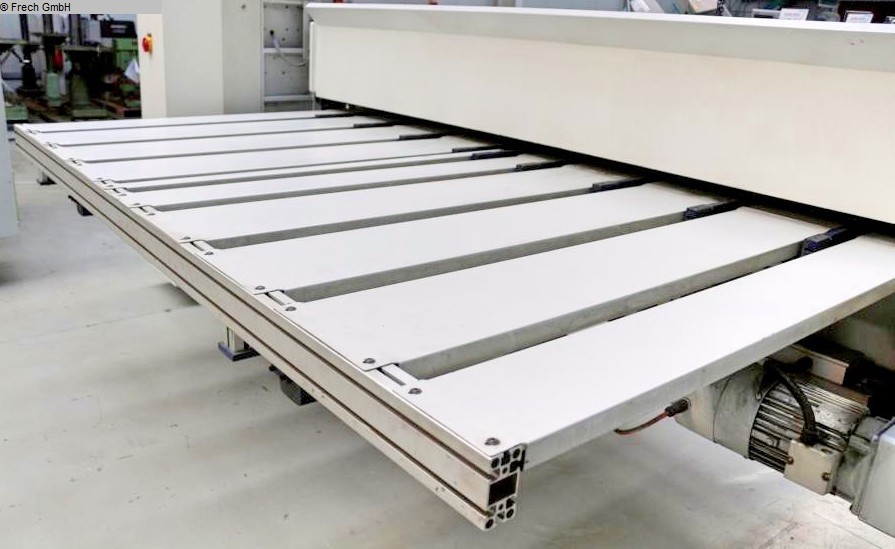

* with rear sheet metal support surface
- 1x freely movable double foot switch
- Operating instructions (PDF)
* Optional accessories included:
- SCHRÖDER split gouge tools - top
