Machine-data
| Stock no. | 1073-76641 |
| Category | Folding Machine |

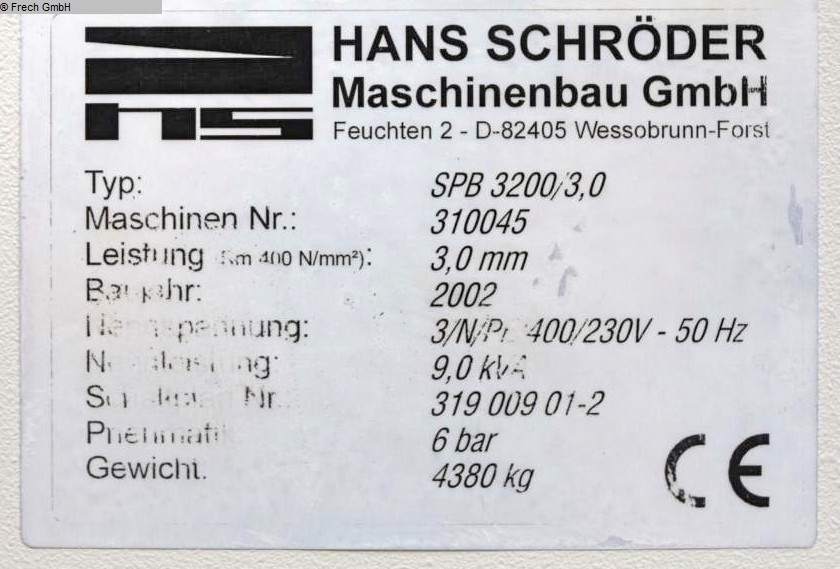

| Make | SCHROEDER |
| Type | SPB 3200/3.0 |
| Year | 2002 |
| Control | CNC |
| Storage location | |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 3220 mm |
| plate thickness | 3.0 mm ST |
| thickness at "Niro-steel" | 2.0 mm |
| upper clamping bar adjustment | 300 mm |
| adjustment speed | 100 mm/sec |
| Bending speed | 120 °/sec |
| work height max. | 869 mm |
| back stop - adjustable | 1.0 - 1.500 mm |
| compressed air | 6.0 bar |
| control | POS 2000 |
| voltage | 400 V |
| total power requirement | ~ 8.8 kW |
| weight | 4380 kg |
| range L-W-H | 4575 x 2450 x 1737 mm |
** New price including accessories approx. 110.000 Euro
** From a maintenance workshop
** In good condition (!!)
Equipment:

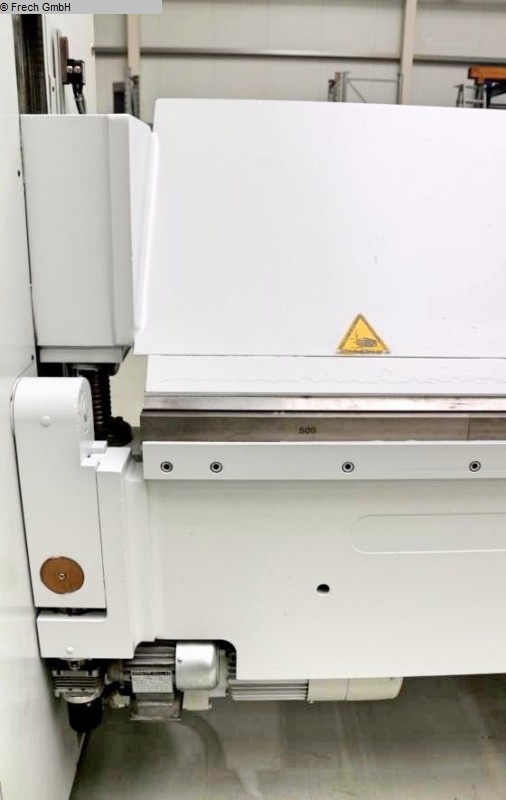

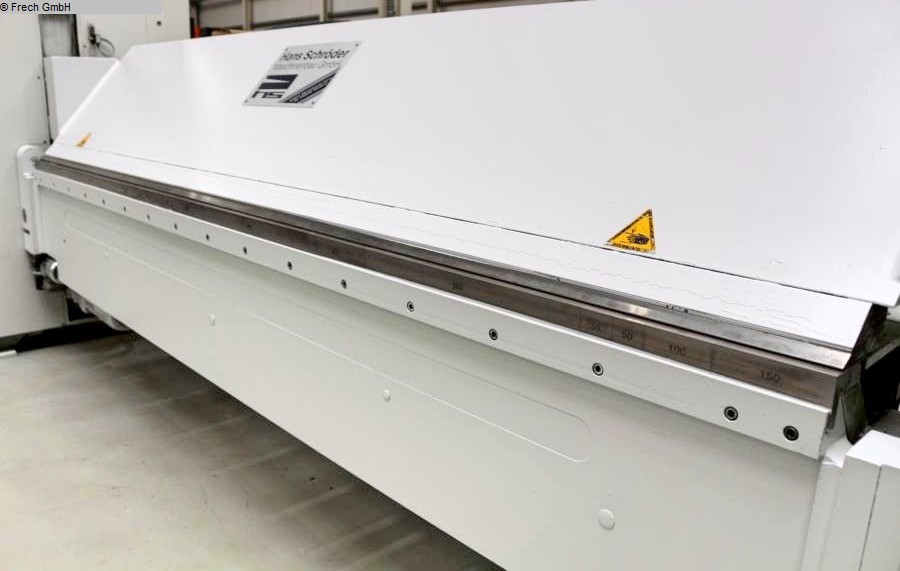

- Motorized universal folding machine "SERVO POWER BEND"
* High-precision mechanics with modern control technology
* For single and series production
* Robust high-speed machine with high axis speeds
* Torsion-free welded construction

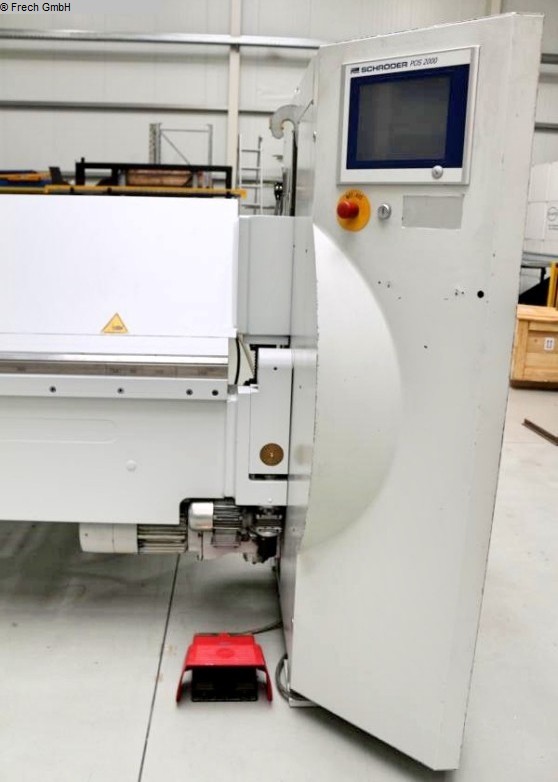

- SCHRÖDER CNC control model "POS 2000"
* With touchscreen control panel
* Color display
* USB interface
* Automatic cutting calculation
* Material and tool library
* Precise bending simulation
* Windows XP operating system
- Servo-converter-controlled drives
* For bending beam/upper beam & electric backgauge
- CNC electric-driven lower beam adjustment
- CNC electric-driven backgauge
* Travel speed 300 mm/sec.

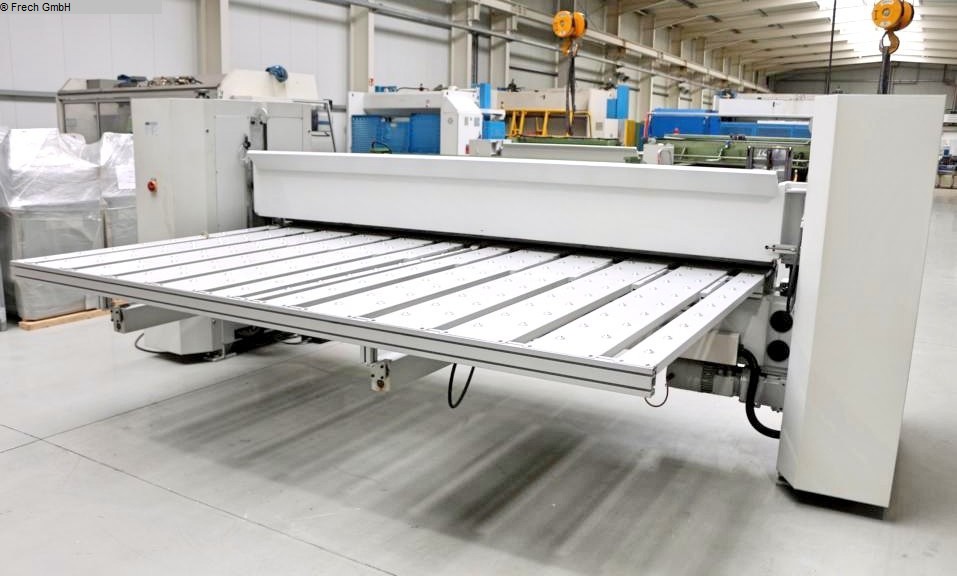

- With rear sheet support surface, including ball transfer units

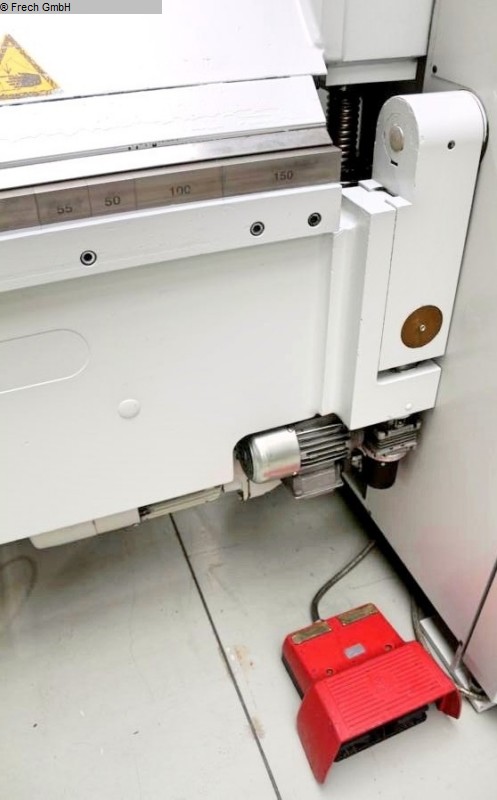

- 1x freely movable double foot switch
- 2x front emergency stop buttons
- Operating instructions (PDF)
* Optional accessories included:
- 1x split set of bending rails - bottom (installed)
- 1x extra bending rail 25.0 mm
- 1x extra bending rail 10.0 mm
- 1x extra bending tool for the top - POINT
- 1x extra split set of bending tools for the top - GOAT'S FOOT
* Tool height 170 mm
