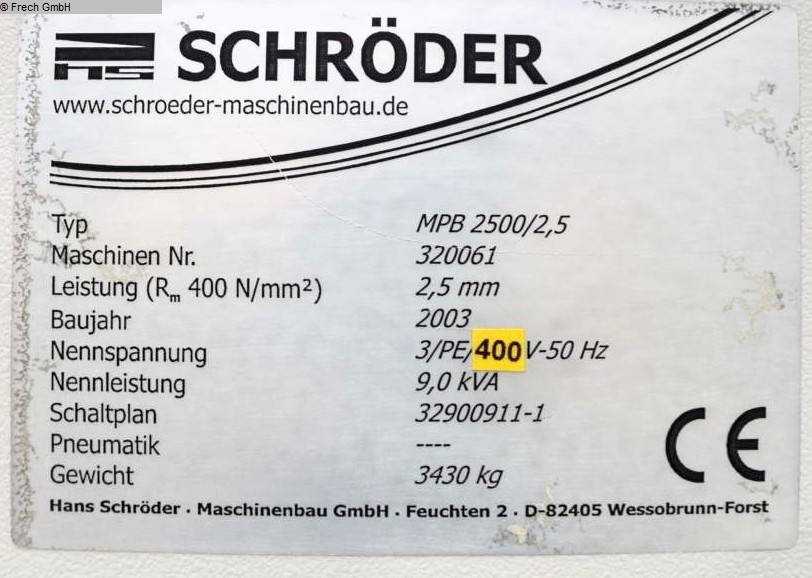

Machine-data
| Stock no. | 1073-76640 |
| Category | Folding Machine |
| Make | SCHROEDER |
| Type | MPB 2500/2.5 |
| Year | 2003 |
| Control | CNC |
| Storage location | |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 2520 mm |
| plate thickness | 2,50 mm ST |
| thickness at "Niro-steel" | 1,50 mm |
| upper clamping bar adjustment | 160 mm |
| speed | OW 100 mm/sec |
| Adjustment folding beam | 80.0 mm |
| speed | BW 120 Grad/sec |
| compressed air | 6.0 bar |
| work height max. | 869 mm |
| control | POS 2000 |
| total power requirement | 7.2 kW |
| voltage | 400 V |
| weight | 3430 kg |
| range L-W-H | 4120 x 2400 x 2090 mm |
** Current new price ~ 100.000 euros
** From a maintenance workshop
** With very good equipment (!!)
Equipment:
- CNC electric motor-driven universal swivel bending machine
* High-precision mechanics with modern control technology
* For individual and series production
* Robust high-speed machine with high axis speeds
* Torsion-free welded construction

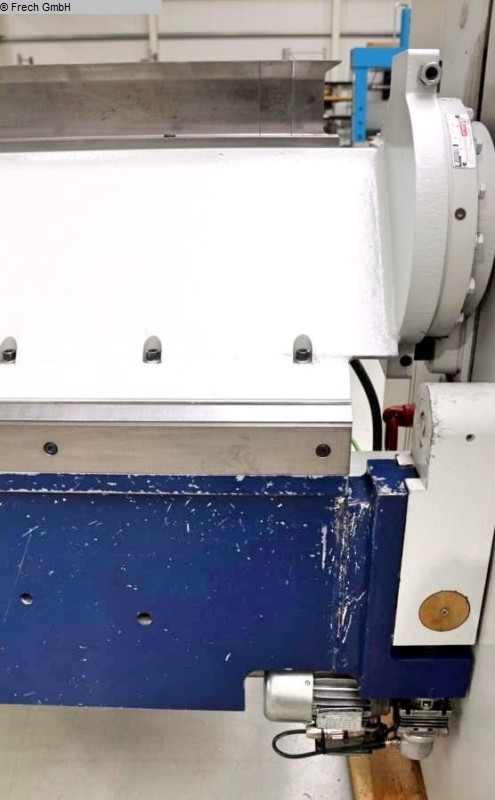

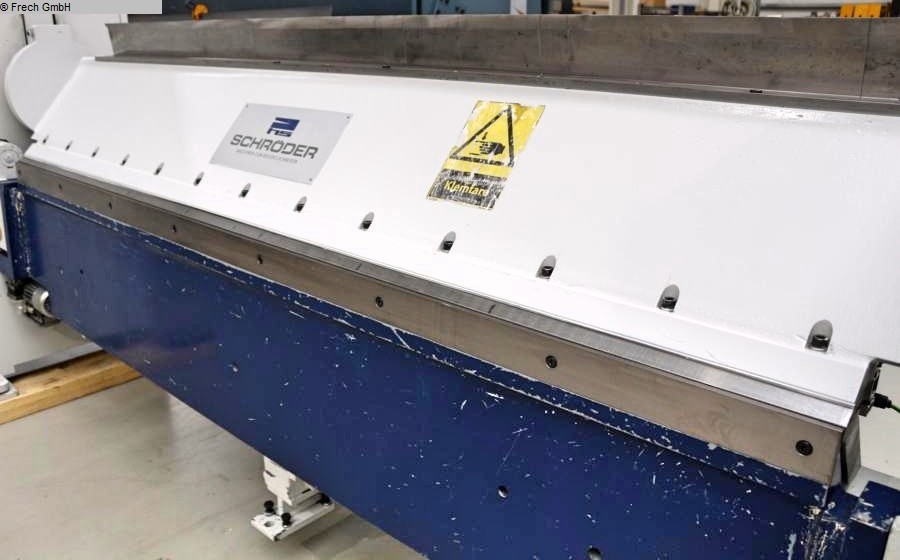

- Rotatable upper beam / as automatic tool change system
* With 2x tool stations (sharp and goose foot bending rail)
* Reduces set-up and idle times
* Eliminates time-consuming tool changes and adjustments

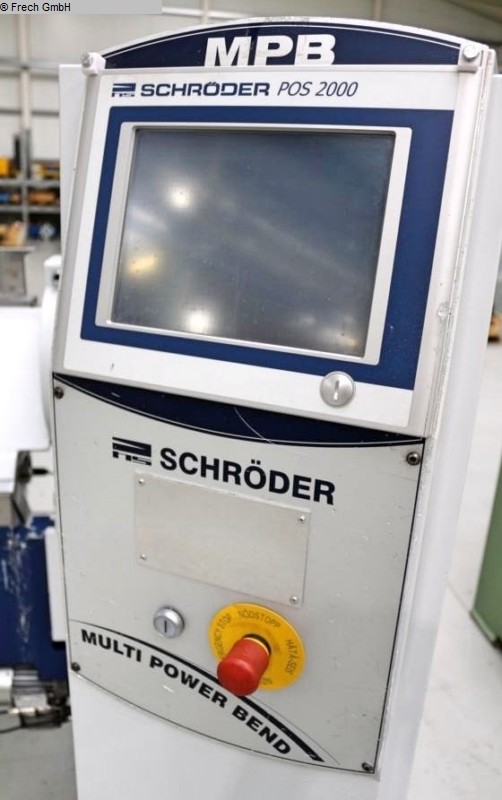

- SCHRÖDER CNC control model POS 2000
* Control panel at front right (operable with PC mouse)
* Color display
* USB interface
* Automatic cutting calculation
* Material and tool library
* Dimensionally accurate bending simulation
* Windows XP operating system
* Swivel control, front right
- Servo converter-controlled drives
* for bending/upper beam & electric backgauge
- CNC motorized lower beam adjustment

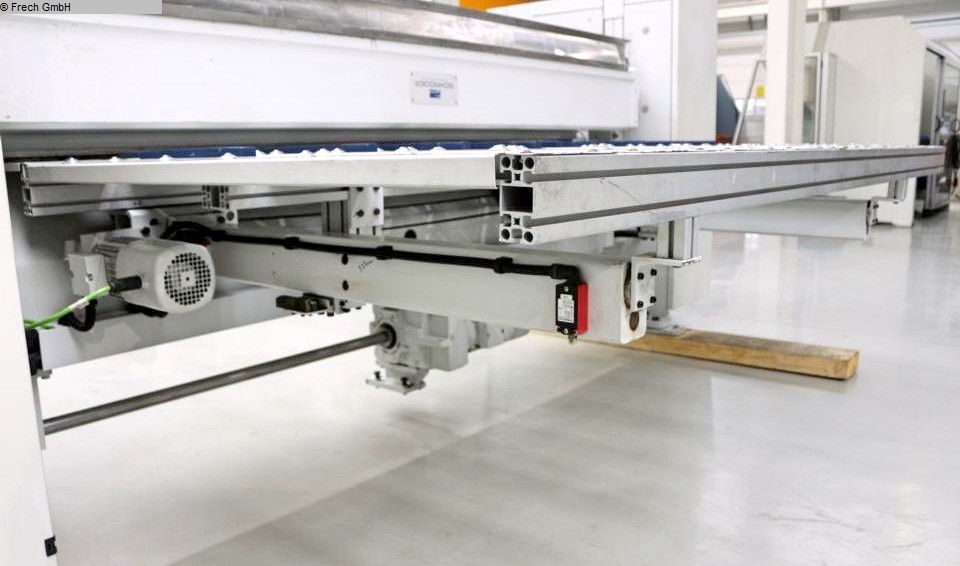

- CNC electric motorized backgauge
* Travel speed 300 mm/sec.

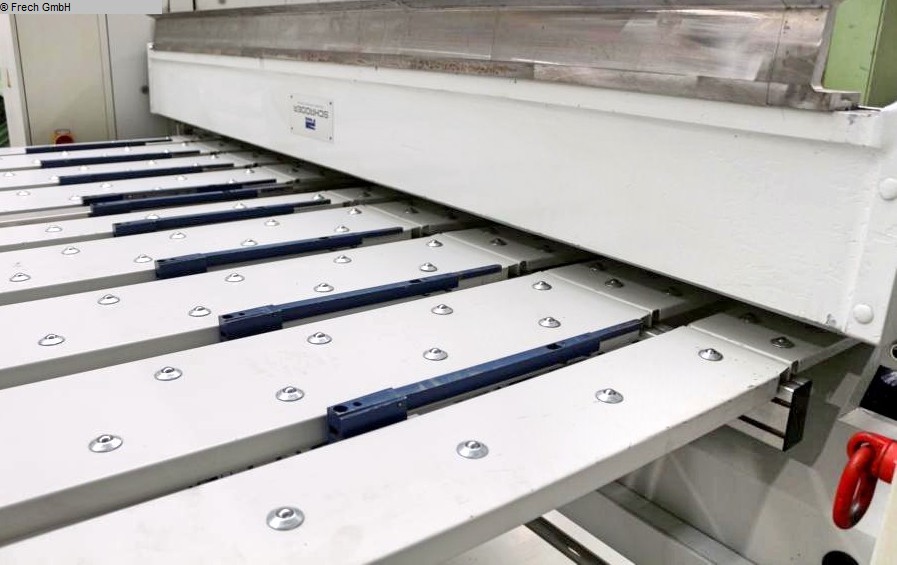

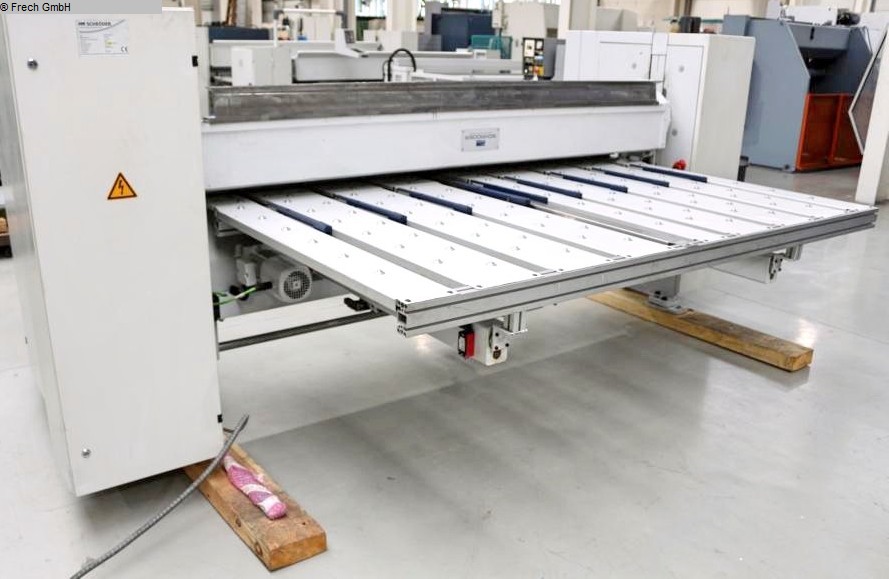

- with rear sheet metal support surface, including ball rollers
- 1x freely movable double foot switch
- Operating instructions (PDF)
