Machine-data
| Stock no. | 1073-76639 |
| Category | Folding Machine |
| Make | HERA |
| Type | SML 3020 x 4.0 |
| Year | 1997 |
| Control | NC |
| Storage location | Ahaus |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 3020 mm |
| plate thickness | 4,00 mm |
| Opening width / upper beam | 350 mm |
| Adjustment folding beam | 100 mm |
| adjustment of lower beam | 80.0 mm |
| bending angle max. | 130 ° |
| work height max. | 900 mm |
| Control | SIEMENS OP 7 |
| voltage | 400 V |
| total power requirement | 9.5 kW |
| weight | 5400 kg |
| range L-W-H | 4300 x 2400 x 1780 mm |
Furnishing:

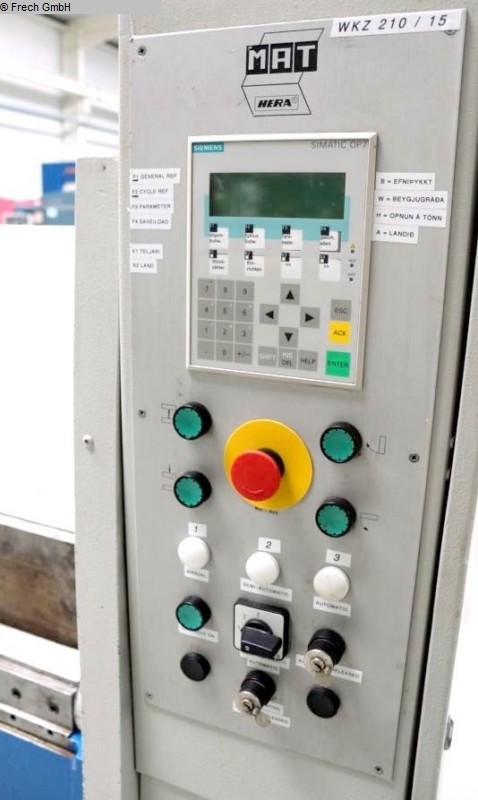

- SIEMENS - PLC control model OP 7
* Bending process as a controlled, fully automatic,
or semi-automatic workflow can be selected
* Bending angle adjustment electronically preselectable 0-135 °

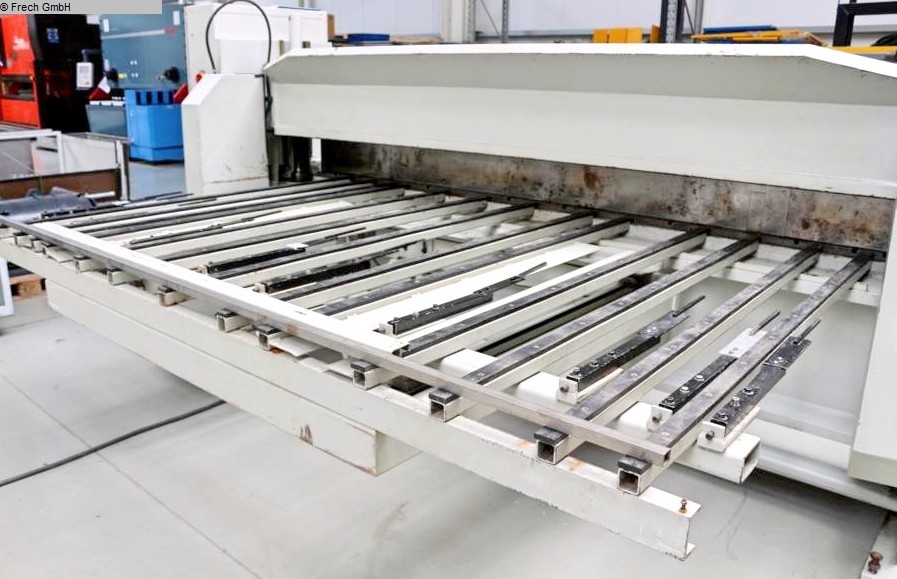

- electr. / controlled backgauge X = 1000 mm
* with large sheet metal support surface
- heavy welded construction

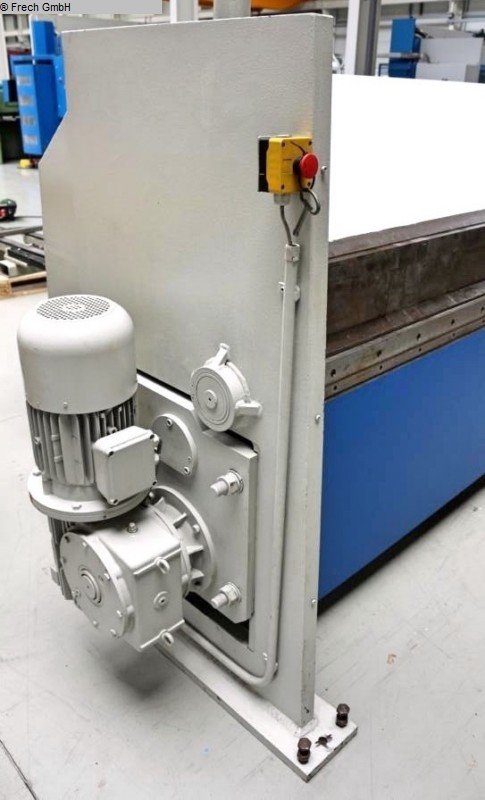

- all drives both. via worm gear
- Motorized adjustment of the bending beam
- large adjustment range of the cheeks
- hydraulic upper tool clamping
- Insert / bending tools
- Operation manual
* Special accessories included:
- separate split goat foot splint H 170 mm
* Machine video:
- https://www.youtube.com/watch?v=C3rwhUDtOKw
