Machine-data
| Stock no. | 1073-76636 |
| Category | Folding Machine |
| Make | FASTI |
| Type | 2095-12-3.5 |
| Year | |
| Control | conventional |
| Storage location | Ahaus |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 1270 mm |
| plate thickness | 3,50 mm |
| Opening width / upper beam | 350 mm |
| back stop - adjustable | max. 750 mm |
| pivoting angle | 135 Grad |
| Lower beam adjustment | 80.0 mm |
| voltage | 400 V |
| total power requirement | 3.7 kW |
| weight | 1250 kg |
| range L-W-H | 2310 x 1070 x 1500 mm |
Features:

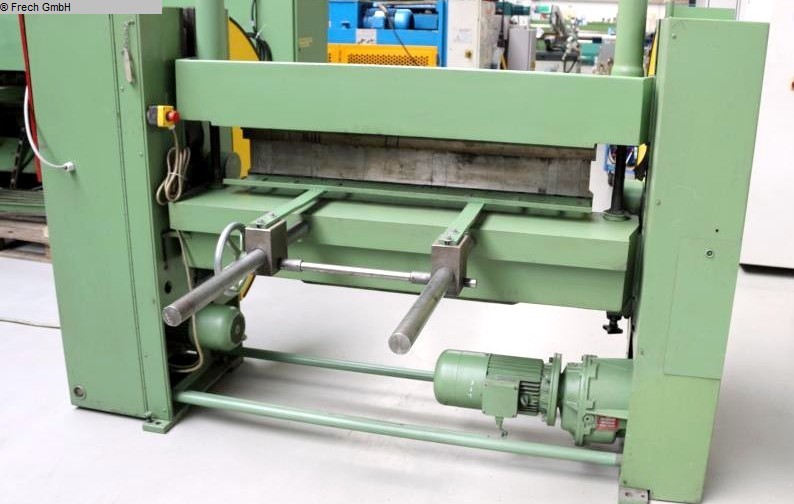

- Robust electric-driven folding machine

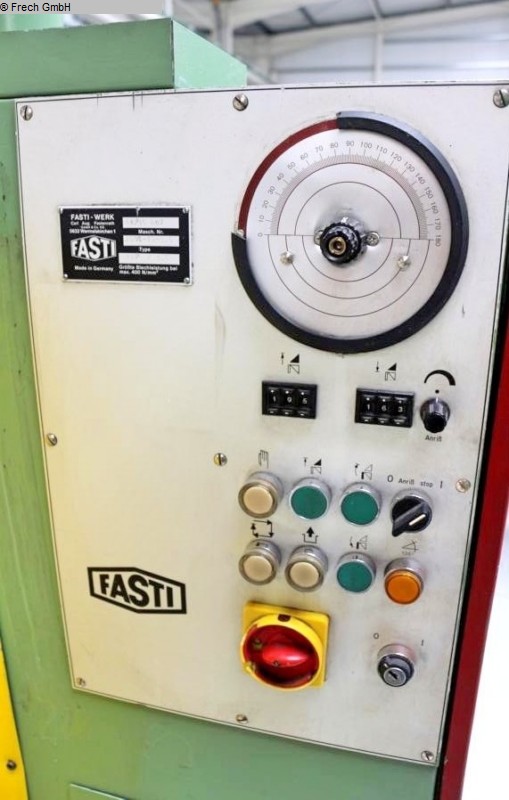

- Bending angle adjustment via electric potentiometer
- Manual material/backgauge
* Adjustment from the rear
* Continuously variable adjustment range
* Travel range up to 700 mm
- Manual/automatic operating mode selectable
- Manual lower beam adjustment
- 1x freely movable double foot pedal
- Operating instructions (PDF)
* Special accessories included:

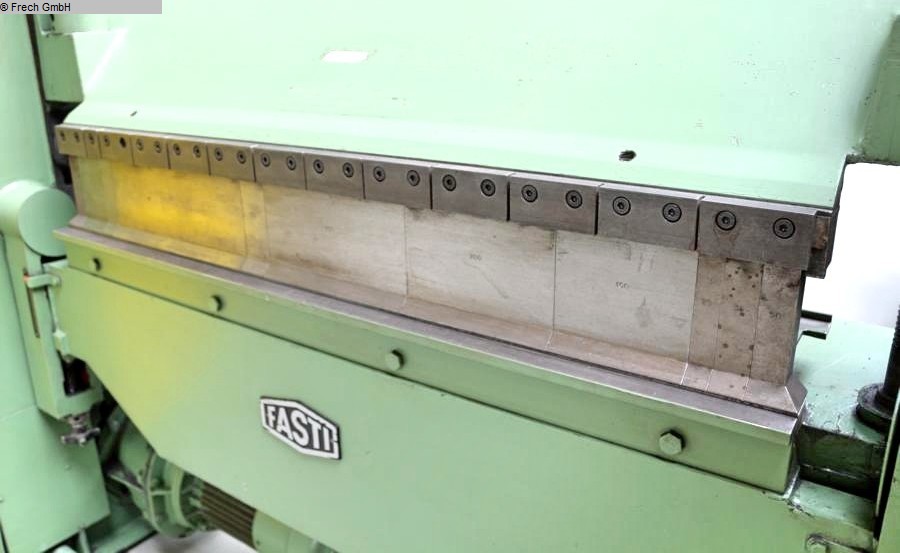

- 1x split set of goat's foot tools (upper tool), height 140 mm
Documents
no documents available
