Machine-data
| Stock no. | 1073-76635 |
| Category | Folding Machine |
| Make | SCHROEDER |
| Type | MAK 3 2500/4.0 |
| Year | 2004 |
| Control | NC |
| Storage location | Ahaus |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 2520 mm |
| plate thickness | 4,00 mm ST |
| thickness at "Niro-steel" | 2,25 mm |
| bending angle max. | 135 ° |
| stroke of upper beam | 250 mm |
| adjustment | 80.0 mm |
| Control | POS |
| voltage | 400 V |
| total power requirement | 6.0 kW |
| weight of the machine ca. | 3720 kg |
| dimensions of the machine ca. | 3685 x 1750 x 1425 mm |
** Original price including accessories approx. 40,000 (!)
** Special price upon request
Equipment:

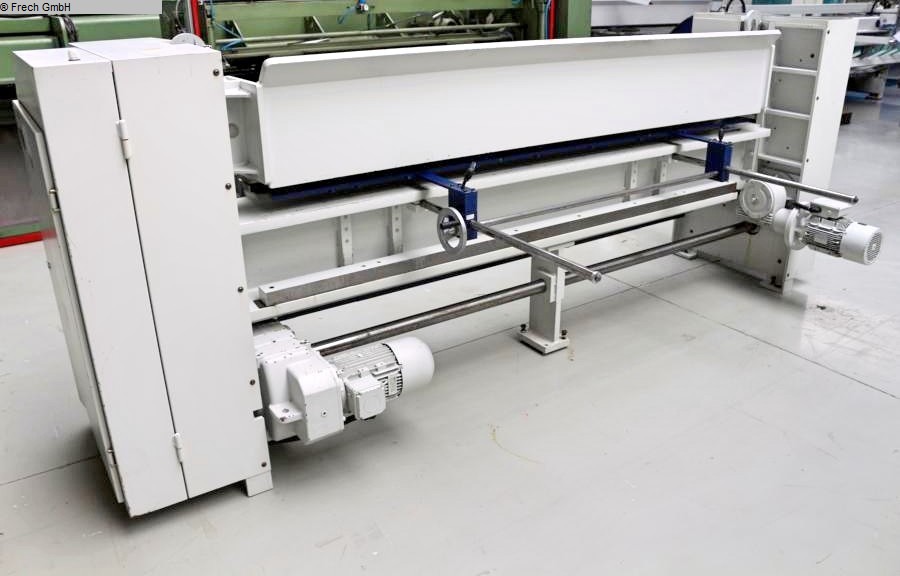

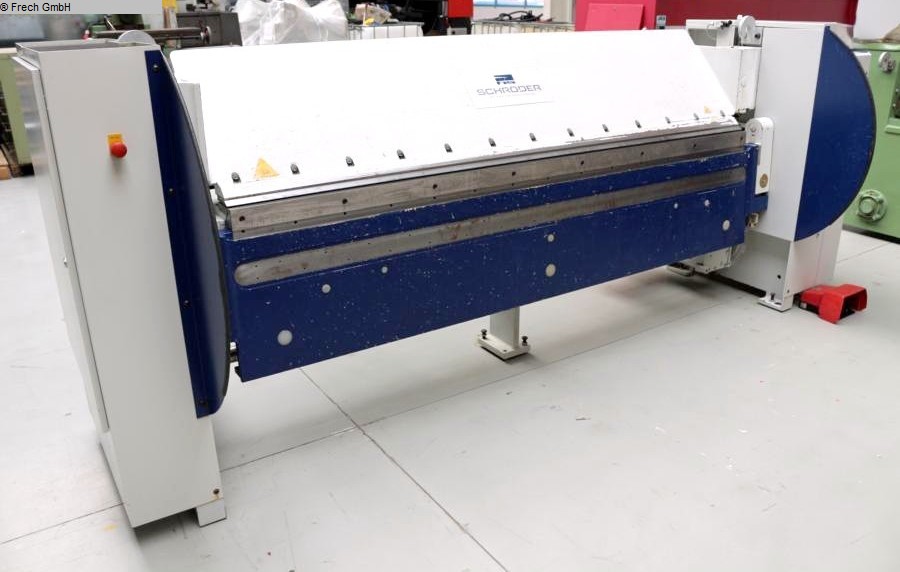

- Robust electric-driven folding machine
- With dynamic, powerful drive motors

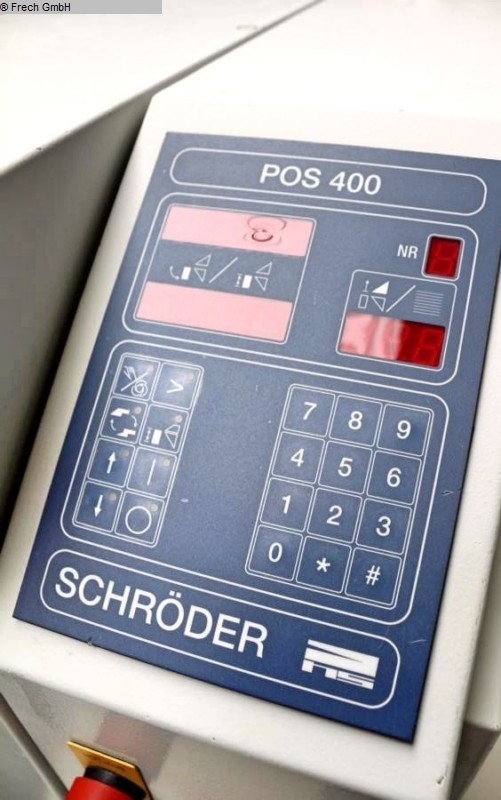

- SCHRÖDER NC control unit "POS 400"
* Bending angle preselection
* Control panel, right front

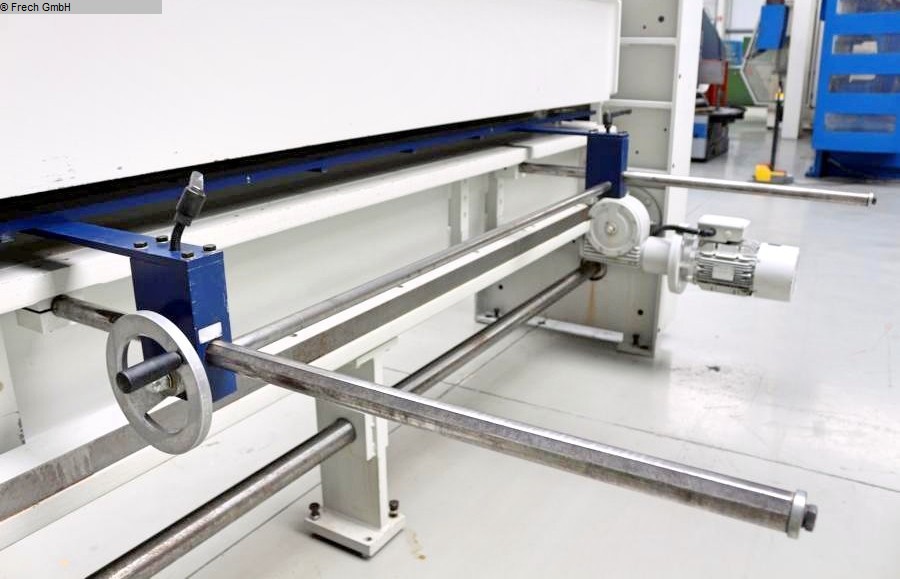

- Manual backgauge, adjustable from the rear
* Adjustment range up to max. 750 mm
- Manual lower beam adjustment
- 1x freely movable double foot switch
- 1x set of bending tools
- Emergency stop button at the front
- Operating instructions (PDF)
Documents
no documents available
