Machine-data
| Stock no. | 1073-76634 |
| Category | Folding Machine |
| Make | SCHROEDER |
| Type | MAK II 2000 x 3.5 |
| Year | 1991 |
| Control | conventional |
| Storage location | Ahaus |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 2050 mm |
| plate thickness | 3,50 mm |
| distance between columns | 2100 mm |
| stroke of upper beam | 250 mm |
| adjustment | UW 80.0 mm |
| work height max. | 920 mm |
| total power requirement | 6.0 kW |
| weight | 2910 kg |
| range L-W-H | 3185 x 875 x 1450 mm |
Features:

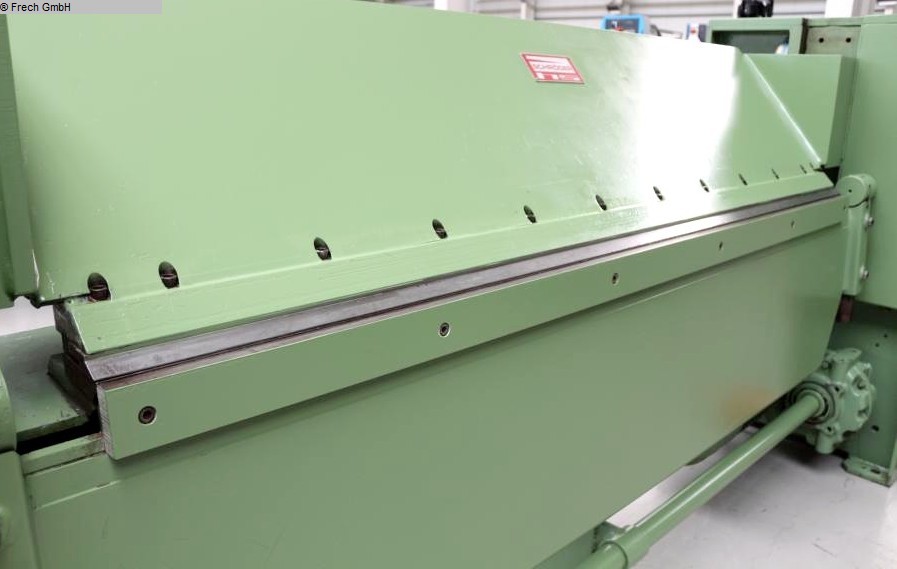

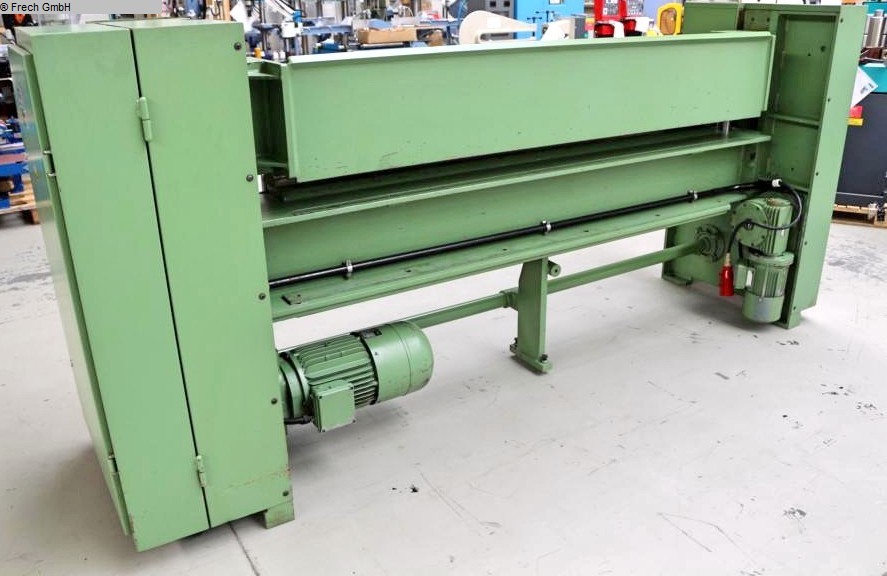

- Robust electric-driven folding machine
- With dynamic, powerful drive motors
- Manual/automatic operation selectable

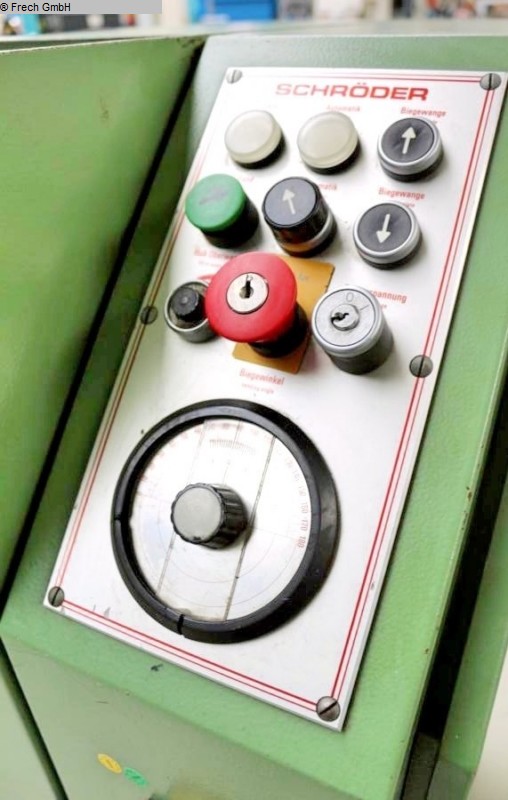

- Control panel, right front
- Bending angle preselection via electric potentiometer
- Manual lower beam adjustment
- 1x used upper tool rail
- 2x used lower tool rails
- 1x freely movable double foot switch
- Original operating instructions
Documents
no documents available
