Machine-data
| Stock no. | 1073-76633 |
| Category | Folding Machine |
| Make | SCHROEDER |

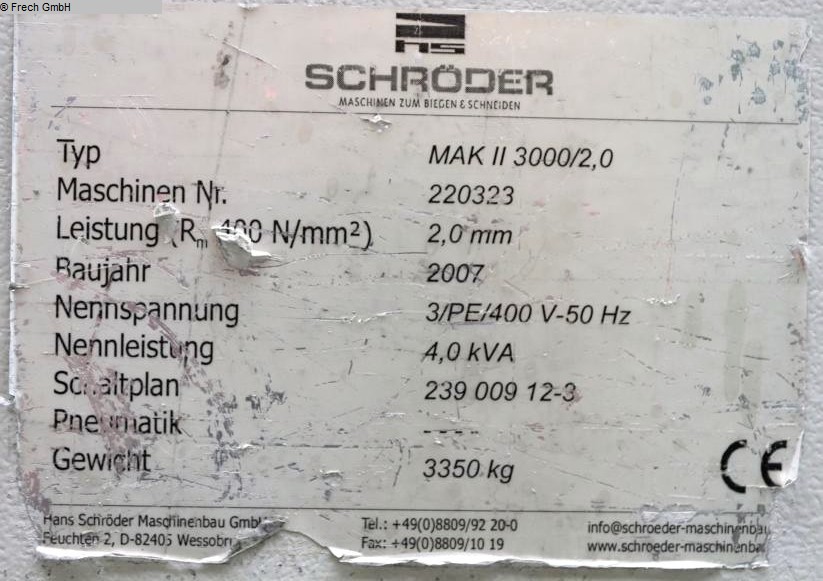

| Type | MAK II / 3020 x 2.0 |
| Year | 2007 |
| Control | NC |
| Storage location | Ahaus |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 3020 mm |
| plate thickness | 2,00 mm |
| bending angle max. | 135 ° |
| stroke of upper beam | 250 mm |
| Adjustment folding beam | 25.0 mm |
| work height max. | 935 mm |
| control | SCHRÖDER NC |
| total power requirement | 6.0 kW |
| weight of the machine ca. | 3350 kg. |
| dimensions of the machine ca. | 4250 x 2300 x 1900 mm |
Features:

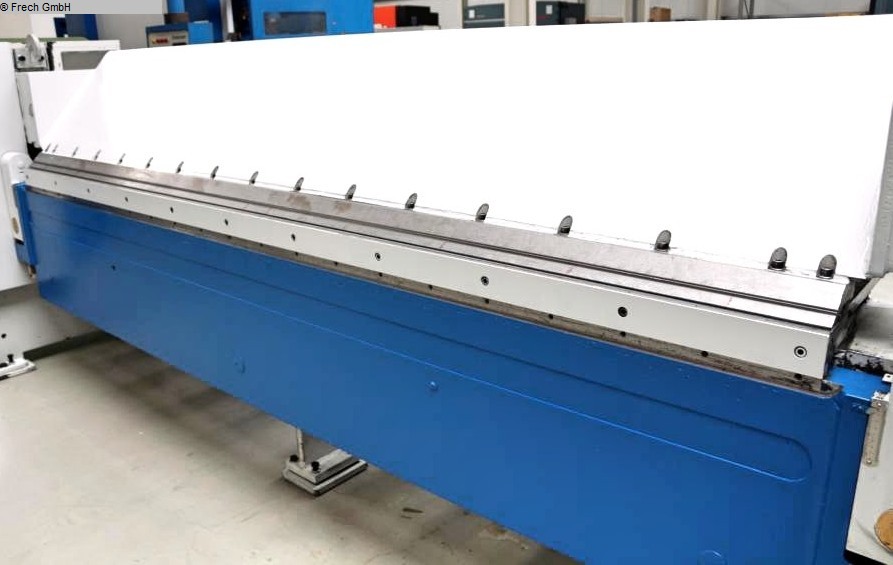

- Dynamic, powerful motorized folding machine

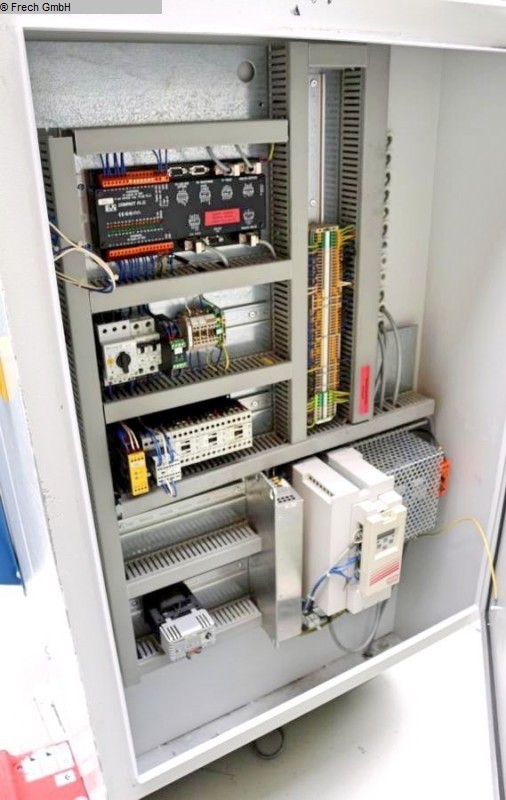

- Used SCHRÖDER NC control unit with LCD display
* Manual, setup, and automatic operation
* Fast programming of individual parts
* Pivoting control panel, right front

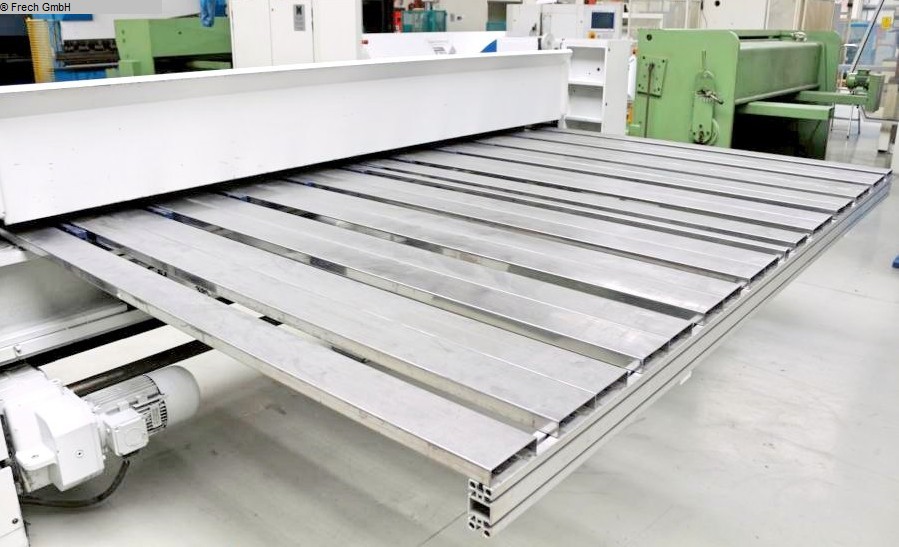

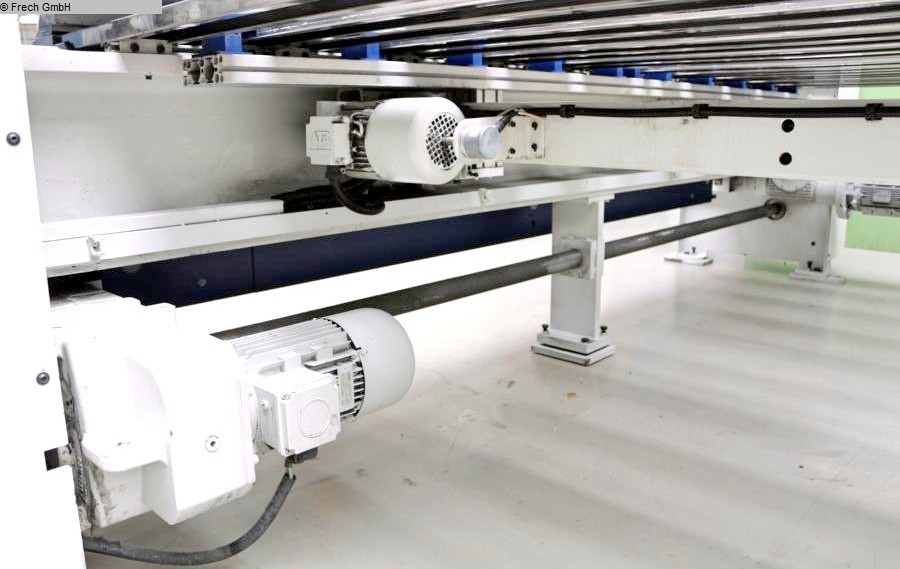

- NC electro-motorized backgauge with rear sheet support surface
- Manual lower beam adjustment
- 1x freely movable double foot switch
- 1x bending tool set
- 2x emergency stop buttons at the front
- Operating instructions (PDF)
