Machine-data
| Stock no. | 1073-76632 |
| Category | Folding Machine |
| Make | EHT |
| Type | MULTISWING 4 - 32 |
| Year | 1999 |
| Control | CNC |
| Storage location | Ahaus |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 3200 mm |
| plate thickness | 4,00 mm ST |
| distance between columns | 3300 mm |
| upper clamping bar adjustment | 400 mm |
| Adjustment folding beam | 80.0 mm |
| pivoting angle | 180 Grad |
| clamping capacity max. | 200 KN |
| rear stop | 10.0 - 1600 mm |
| oil volume | 160 Liter |
| total power requirement | 9.8 kW |
| weight | 8500 kg |
| range L-W-H | ~ 4900 x 2000 x 2300 mm |
** From a maintenance workshop
** Good / well-maintained condition (!!)
Equipment:

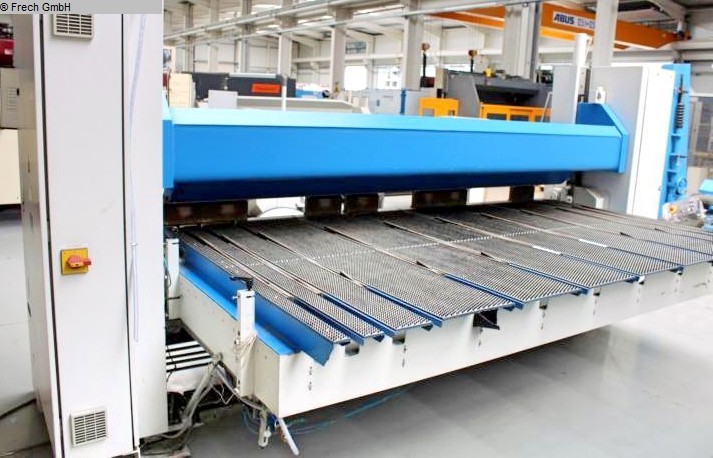

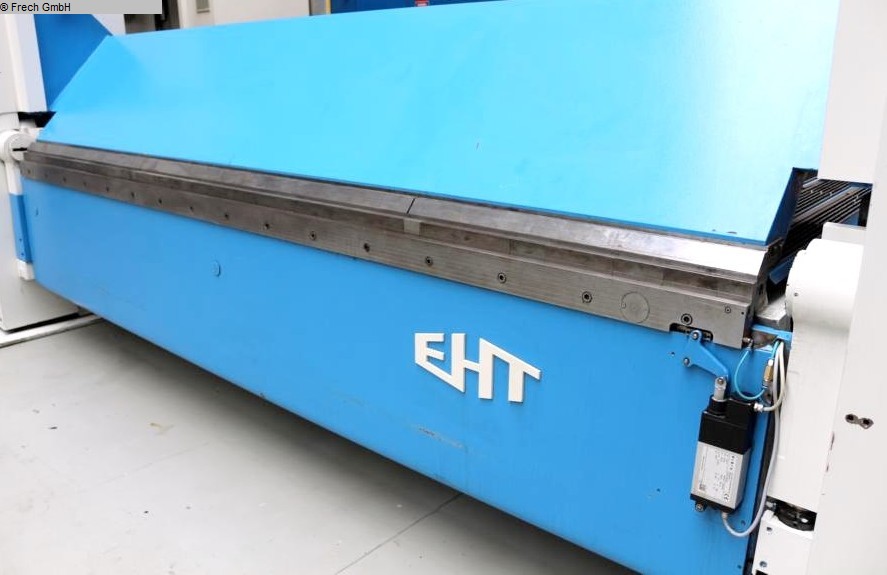

- Robust CNC folding machine

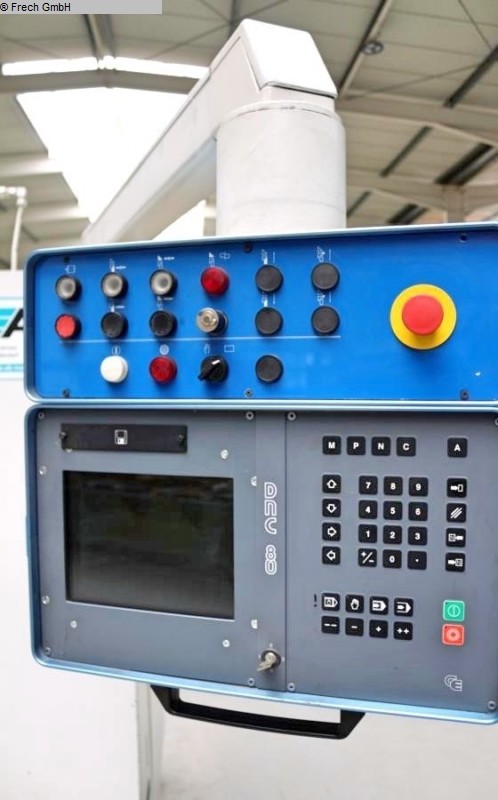

- CNC control unit - CYBELEC "DNC 80 PP"
* Swiveling control panel, front right
* 2D graphic display for display and multiple simulation
* 2D graphic programming
* Easy handling
- CNC electro-motorized backgauge
* Travel range 10.0 - 1,600 mm
* Pneumatic / lowerable stop fingers
* Adjustment speed max. 250 mm/sec.

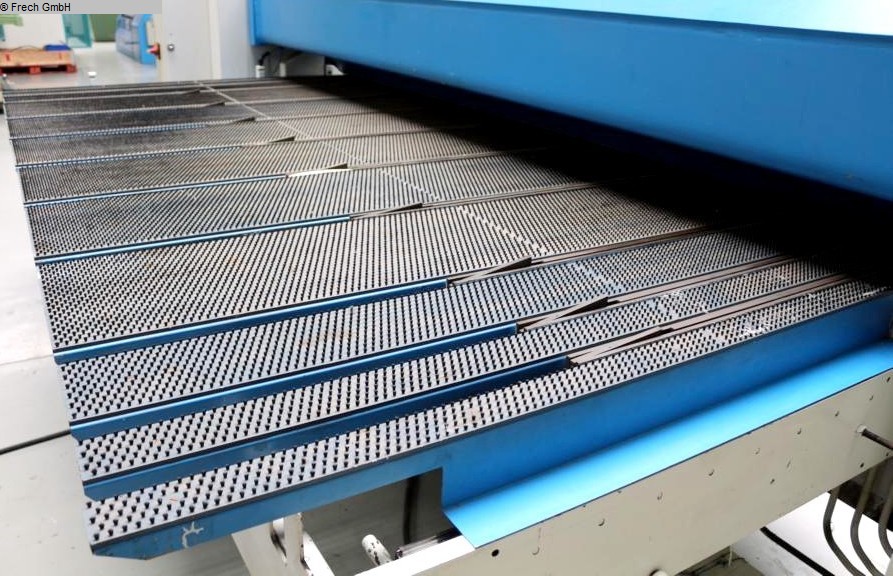

* Rear sheet support table with brushes

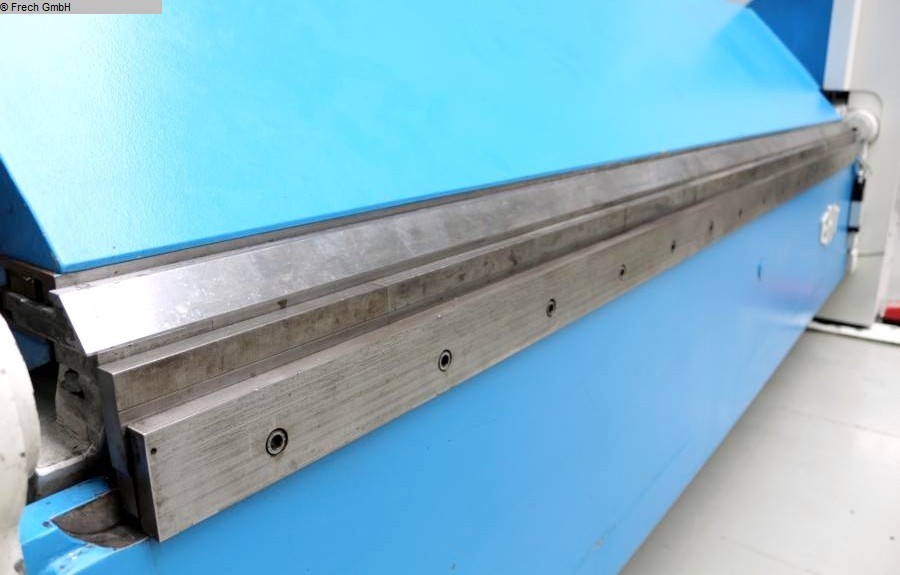

- Electro-motorized lower beam adjustment (S axis)

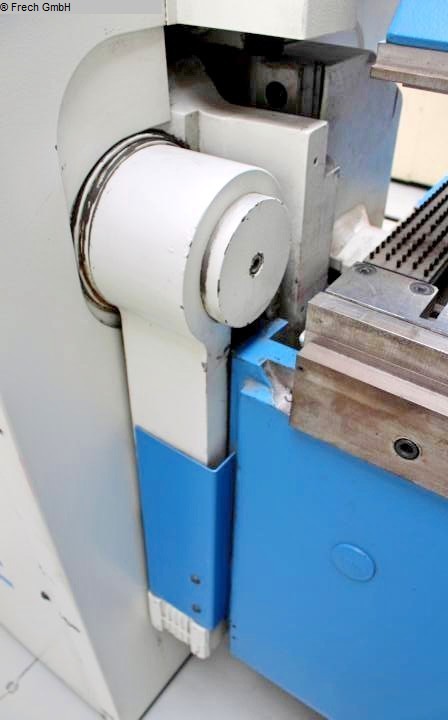

- Electro-hydraulic pivoting movement of the lower beam
- Pneumatic upper tool clamping
- Pneumatic lower tool clamping
- 1x freely movable double foot switch
- Original operating instructions + wiring diagram/hydraulic diagram
** Special accessories included:
- 1x split set of goat's foot upper tools, H = 150 mm (not complete)
- 1x split set of goat's foot upper tools, H = 200 mm (not complete)
- 1x split bending/lower tool
- Rear sheet support with brushes
