Machine-data
| Stock no. | 1073-76625 |
| Category | Folding Machine |
| Make | HERA |
| Type | UM II / 2000 x 2.5 |
| Year | |
| Control | conventional |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 2020 mm |
| plate thickness | 2,50 mm ST |
| upper clamping bar adjustment | 250 mm |
| Lower beam adjustment | 80.0 mm |
| bending speed | 5.5 sec / Hub |
| bending angle max. | 0 - 180 ° |
| Control | konv. |
| work height max. | 930 mm |
| back stop - adjustable | ca. 215 mm |
| engine output | 2.6 kW |
| weight | 1750 kg |
| range L-W-H | 2800 x 1200 x 1450 mm |
Features:
- Robust electric-driven folding machine

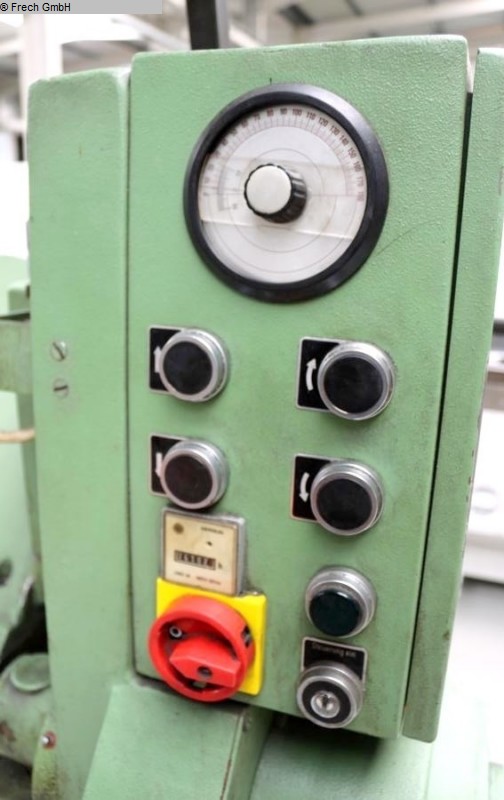

- Bending angle adjustment via electric potentiometer

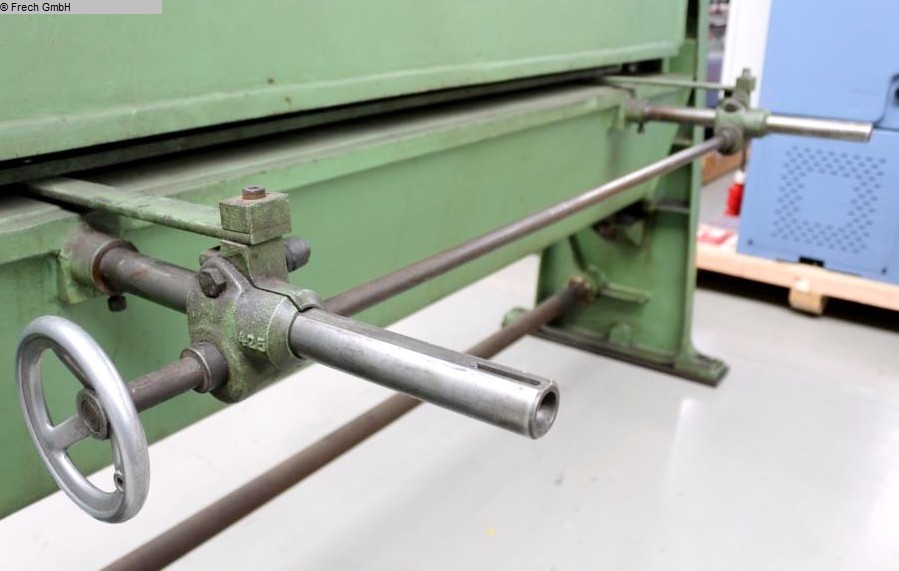

- Manual backgauge
* Adjustment via handwheel from the rear
- Manual lower beam adjustment
- 1x freely movable double foot switch

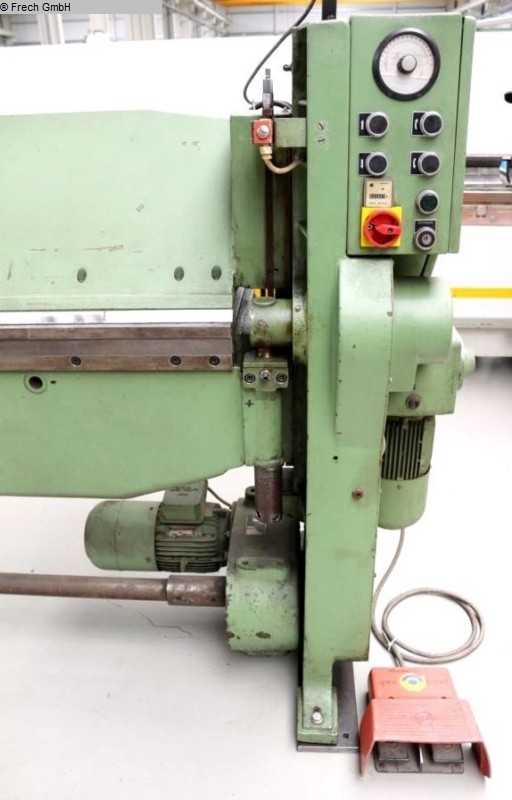

- Main switch at the front
Documents
no documents available
