Machine-data
| Stock no. | 1073-76622 |
| Category | Folding Machine |
| Make | RAS |
| Type | 64.25 |
| Year | |
| Control | NC |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 2540 mm |
| plate thickness | 2,50 mm |
| upper clamping bar adjustment | 200 mm |
| Lower beam adjustment | 30.0 mm |
| bending speed | 5.5 sec / Hub |
| bending angle max. | 0 - 180 ° |
| Control | RAS NC |
| engine output | 2.6 kW |
| weight | 1750 kg |
| range L-W-H | 3150 x 1200 x 1400 mm |
Equipment:

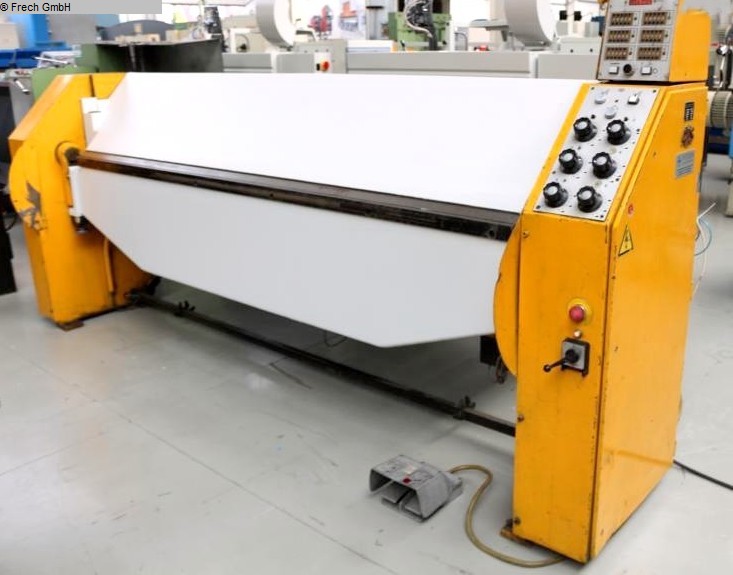

- robust electro-motorized swivel bending machine
- bending angle adjustment via electrical potentiometer
* multiple/subsequent bends are possible
- electro-motorized back stop

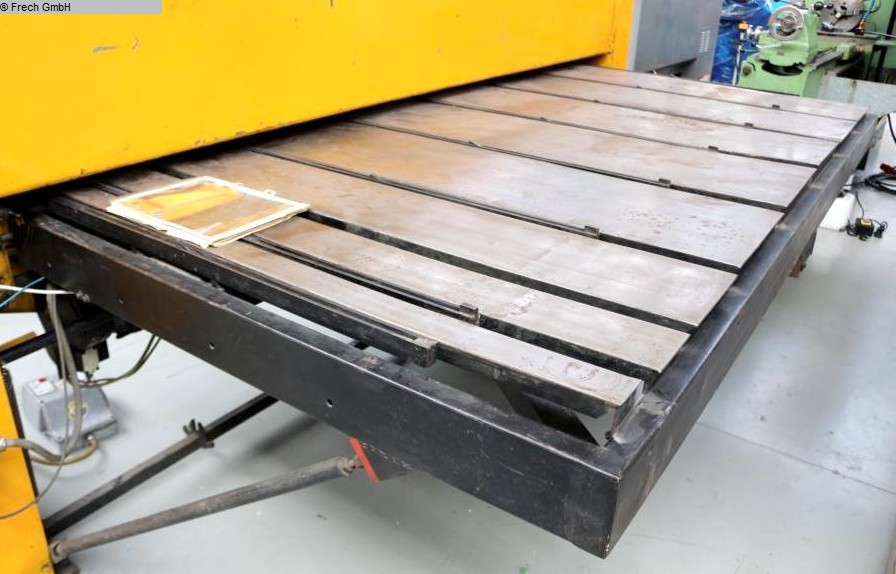

- with rear sheet support surface
- manual lower beam adjustment

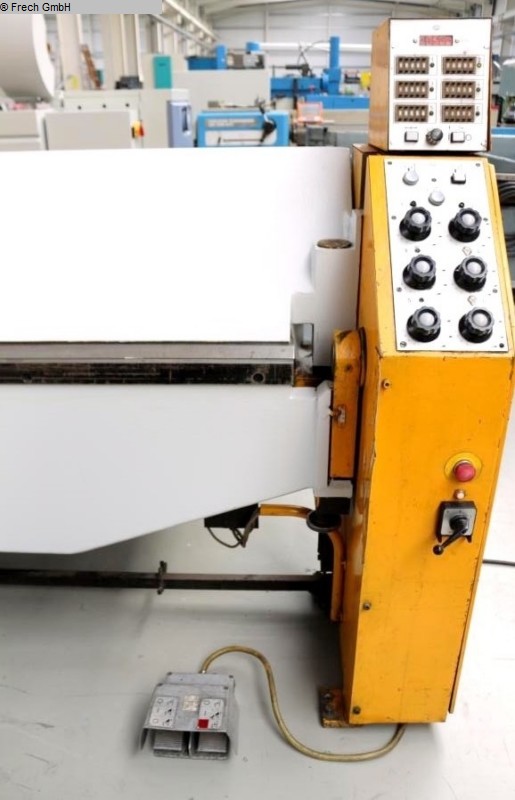

- 1x freely movable double foot switch
- operating instructions (PDF)
Documents
no documents available
