Machine-data
| Stock no. | 1073-60209 |
| Category | Roller leveller |
| Make | HÄMMERLE - GF BRUGG |
| Type | TRM 50/750 |
| Year | |
| Control | conventional |
| Storage location | EXW- ex works |
| Origin | Swiss |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| material width | 0750 mm |
| material thickness | 12,00 mm |

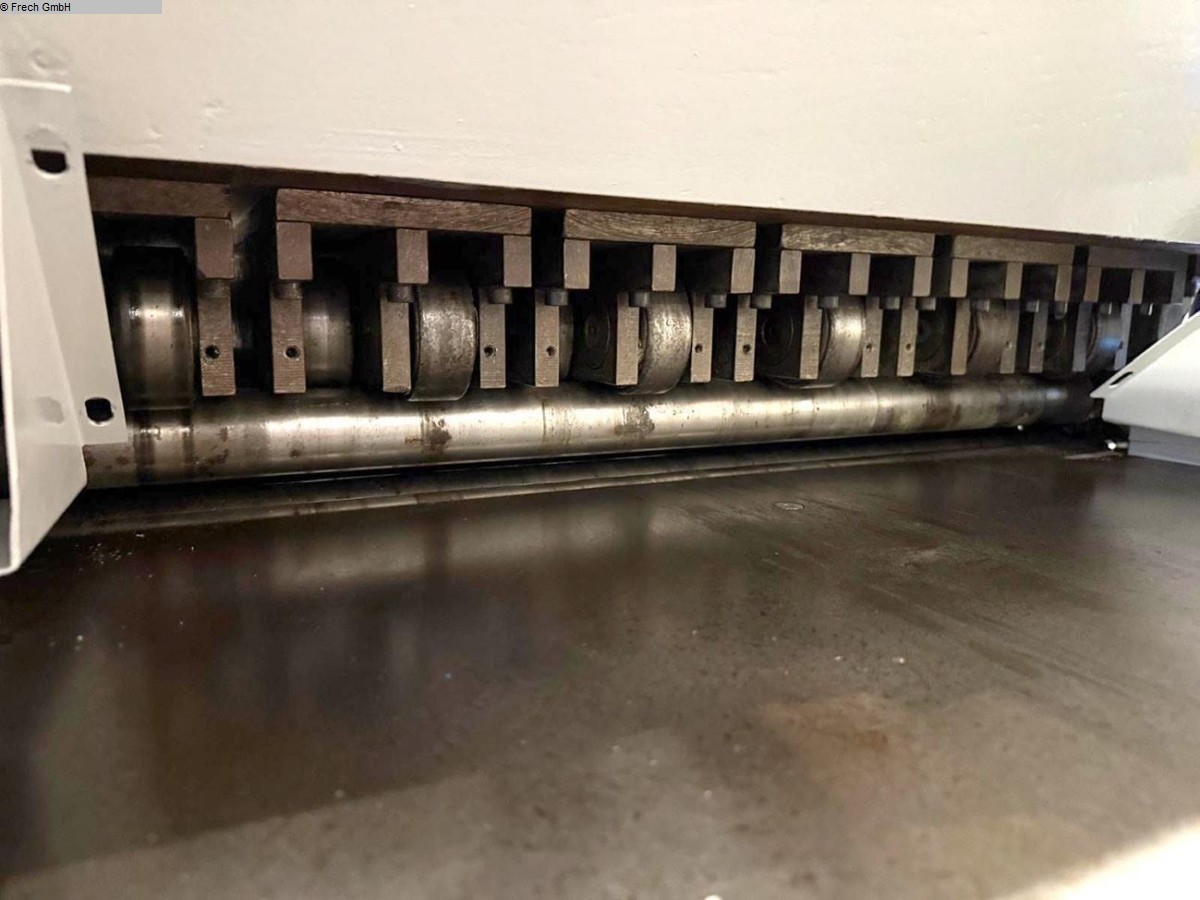

| no. of straightening rolls | 19 |
| diam. of the rolls ca. | 50 mm |
| sheet thickness - min. | 0,50 mm |
| sheet length min. | 80 mm |
| feed speeds | 2 - 20 mm/min |
| run-in height | 900 mm |
| oil volume | 300 l |
| total power requirement | 31 kW |
| weight of the machine ca. | 9,00 t |
| dimensions of the machine ca. | 2,60 x 2,10 x 1,90 m |

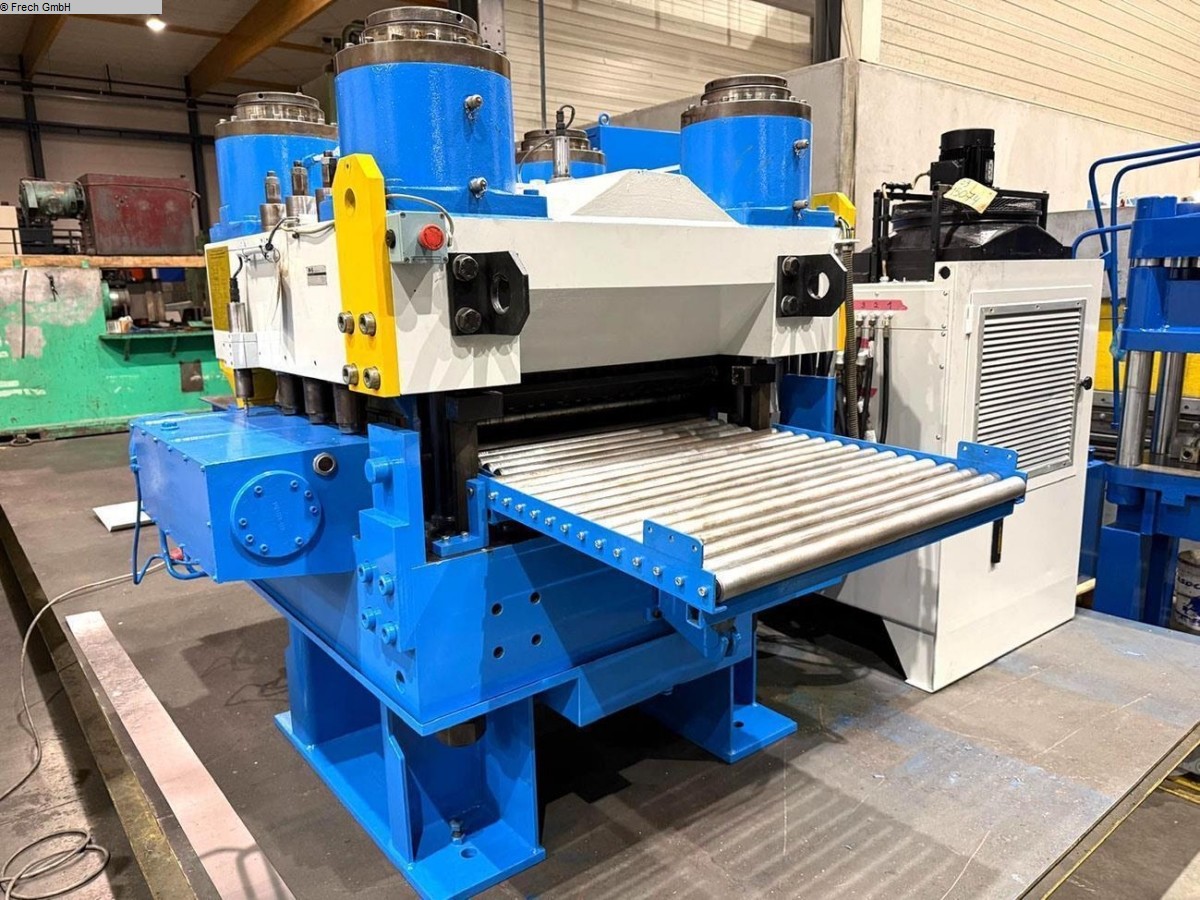

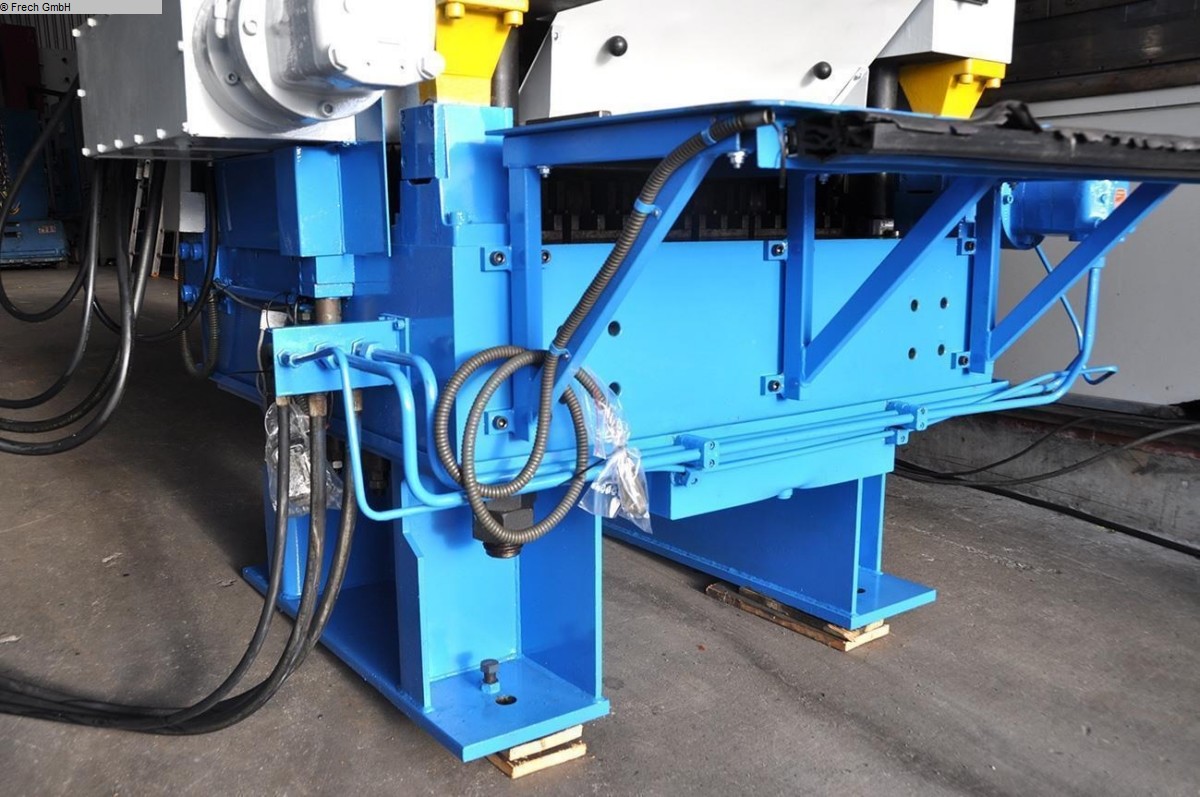

Hydraulic straightening machine HÄMMERLE- GF BRUGG TRM 50/750
- with infeed and outfeed table
Documents
no documents available
