Machine-data
| Stock no. | 1073-60206 |
| Category | Roller leveller |
| Make | ARKU |
| Type | VRM 3020 |
| Year | 1982 |
| Control | conventional |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | after arrangement |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| material width | 0200 mm |
| material thickness | 3,00 mm |
| no. of straightening rolls | 21 |
| sheet thickness - min. | 0,50 mm |
| diam. of the rolls ca. | 30 mm |
| speed | 56 m/min |

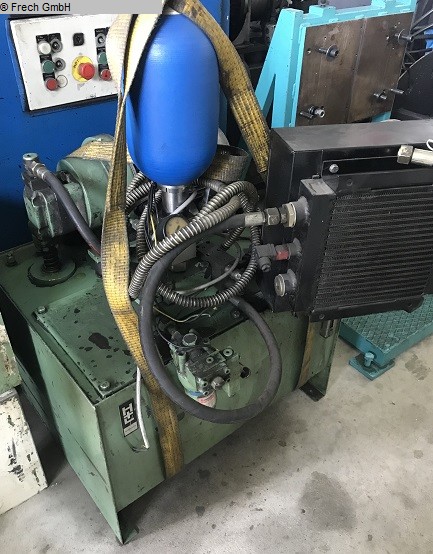

Hydraulic drive
All rollers driven

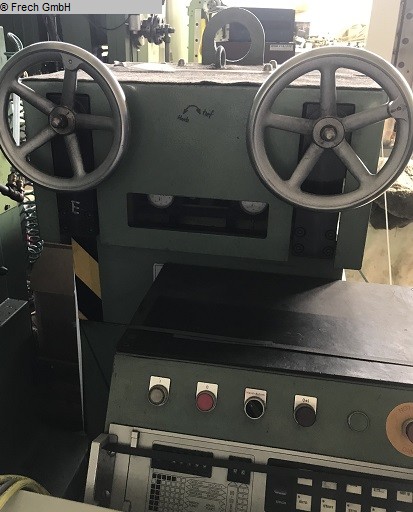

Side belt guide with handwheel

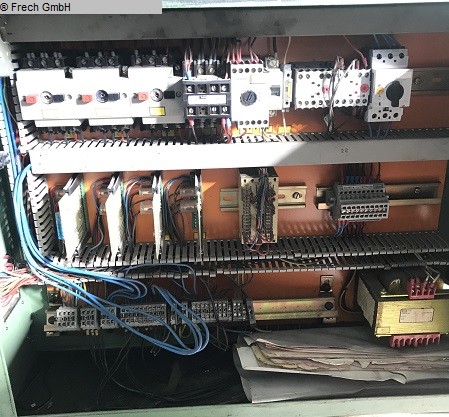

PSS300 control
Documents
no documents available
