Machine-data

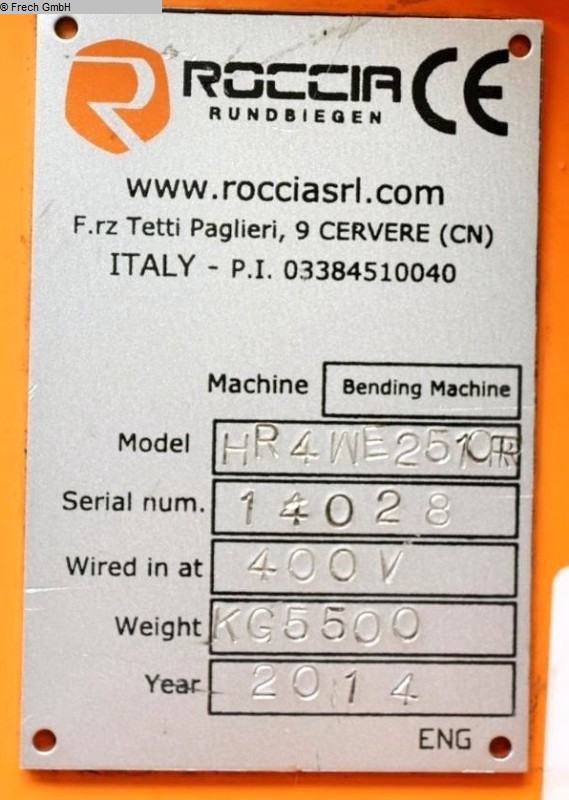

| Stock no. | 1073-55736 |
| Category | Plate Bending Machine - 4 Rolls |
| Make | ROCCIA |
| Type | HR4WE 2510 |
| Year | 2014 |
| Control | conventional |
| Storage location | EXW- ex works |
| Origin | Italy |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 2600 mm |
| plate thickness | 1,00 mm ST |
| pre-bending | 8,00 mm ST |
| diameter of upper rolls | ~ 220 mm |
| side roll diameter | ~ 170 mm |
| diameter of lower rolls | ~ 190 mm |
| Control | konv. |
| oil volume | 80.0 Liter |
| voltage | 380 V |
| total power requirement | 5.5 kW |
| weight | ca. 5000 kg |
| Dimensions (only the machine) | ca. 3500 x 1550 x 1400 mm |
** very good condition (!!)
** current new price incl. accessories approx. 120.000 Euro
** special price on request
Equipment:

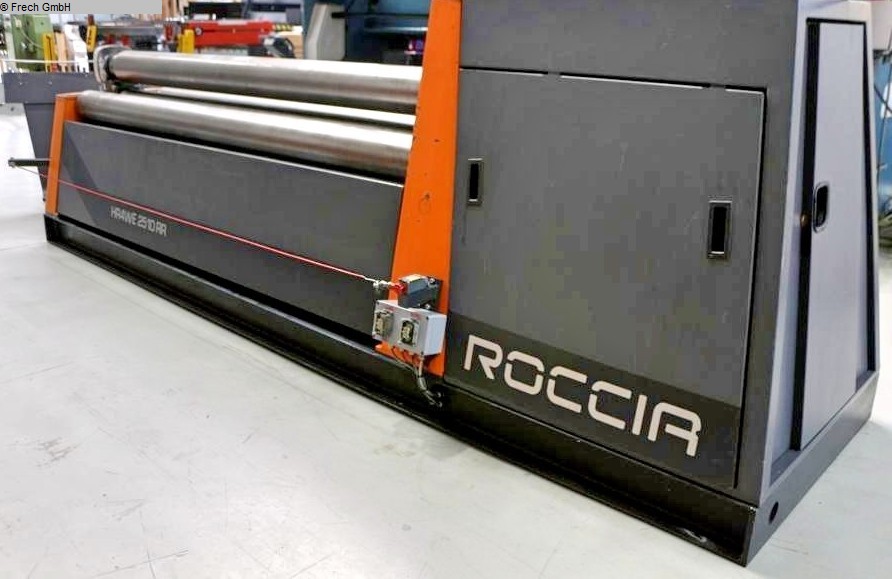

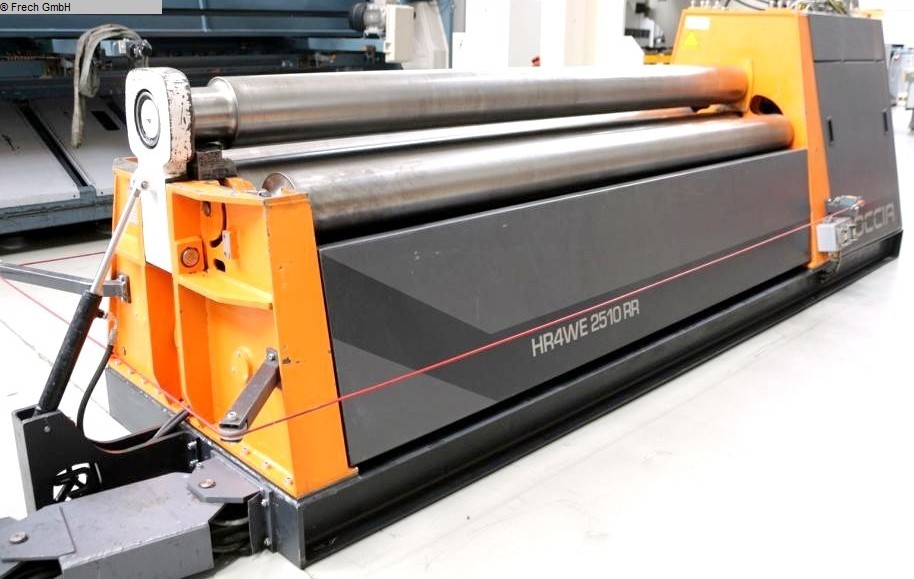

- robust electro-hydraulic 4-roll round bending machine
- 4-roll concept offers a wide range of bending and rounding options

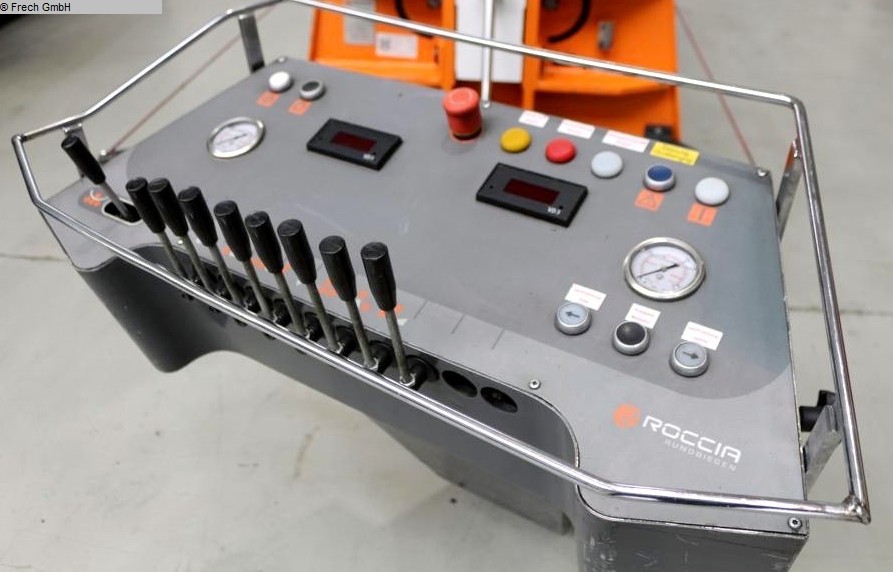

- Swivel-mounted control unit
* Operation - control of all rollers or machine axes
* Digital position display of the side rollers
* Manual operation via JOY sticks
- Two central rollers are driven directly via hydraulic motors
- Conical rolling possible by tilting the rollers
- Parallelism of the side rollers via torsion shafts
- Bending on both sides
- diameters of up to 1.1 times the top roller diameter are possible

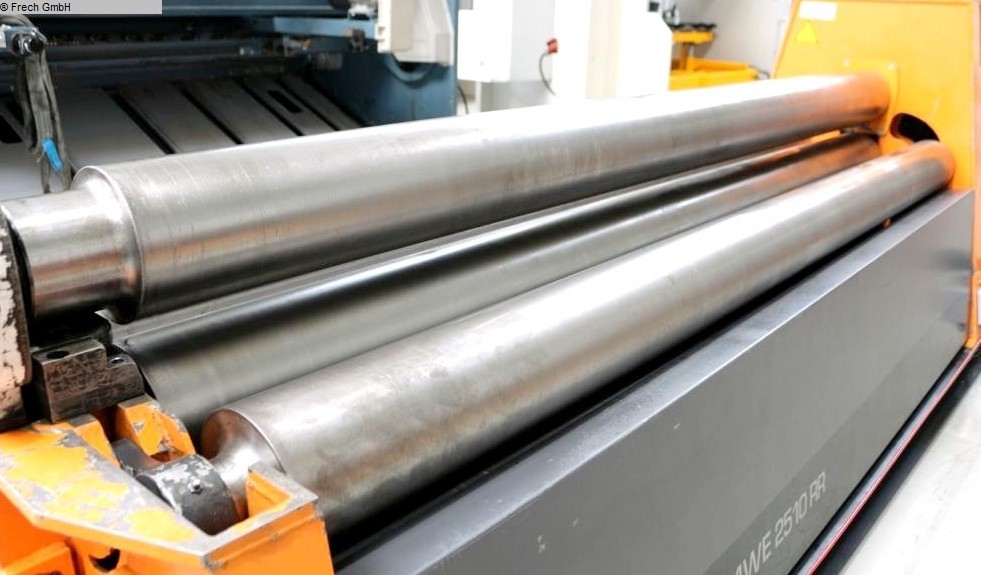

- Forged and hardened rollers with a hardness of 53-55 HRC
- Low-maintenance, stable machine concept
- Permanent lubrication of all bearings
- Sturdy welded steel construction
- electro-hydraulic hinged bearing for easy pipe removal
- pressure gauge / pressure display for the rollers
- Safety device (safety line with switch unit)
- operating instructions
* Special accessories included :

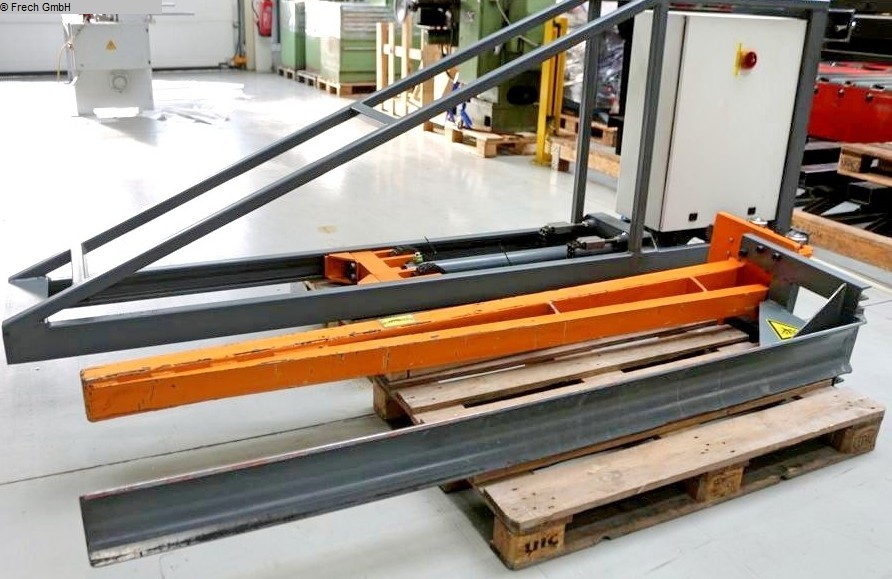

- ROCCI height-adjustable center support
* for large pipe diameters

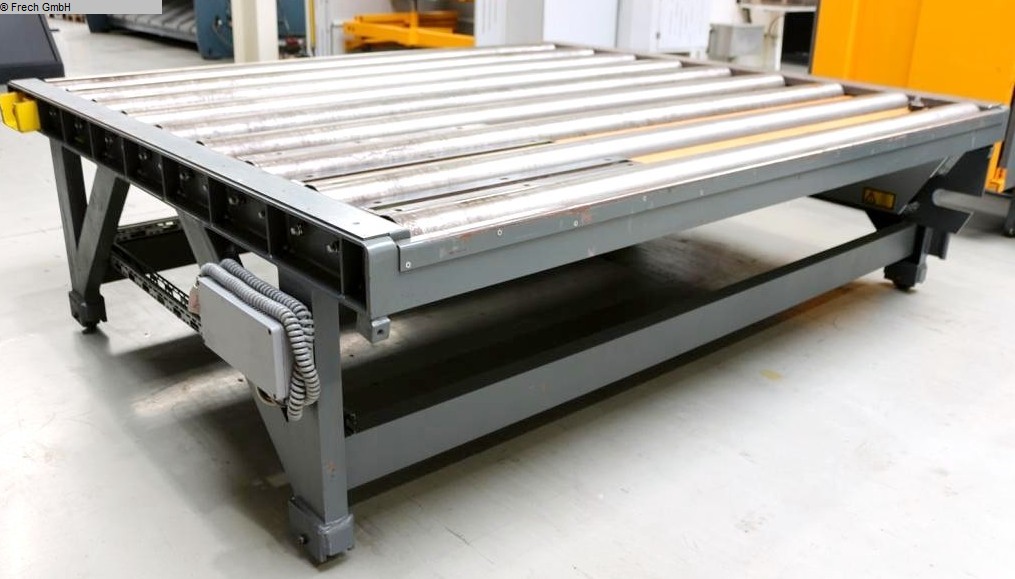

- ROCCI electro-motorized material feed table
* motorized sheet feeding material support surface
