Machine-data
| Stock no. | 1073-34198 |
| Category | Punching Press |
| Make | MUHR & BENDER |

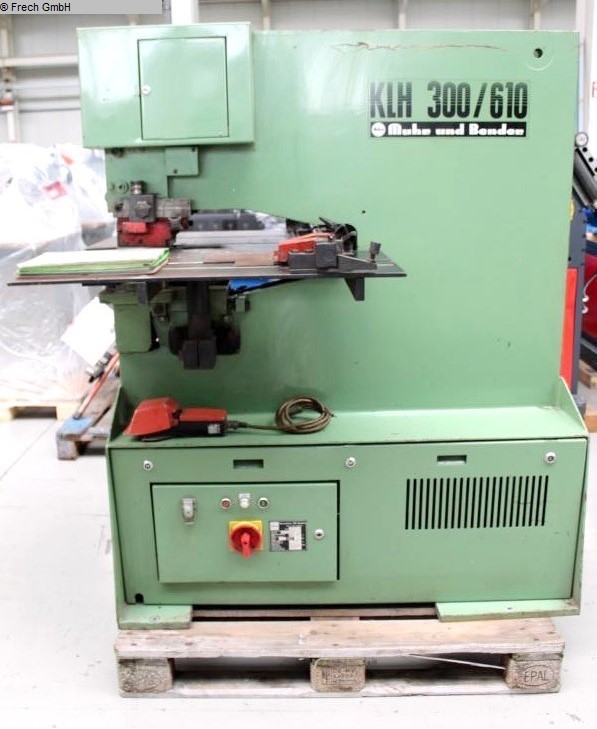

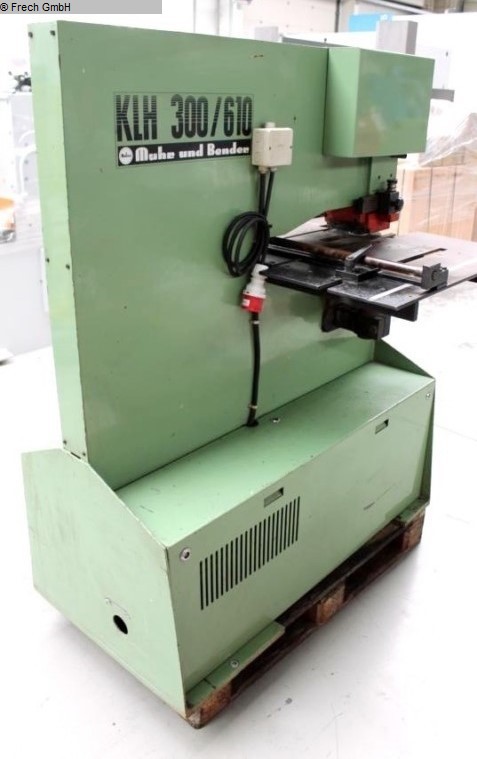

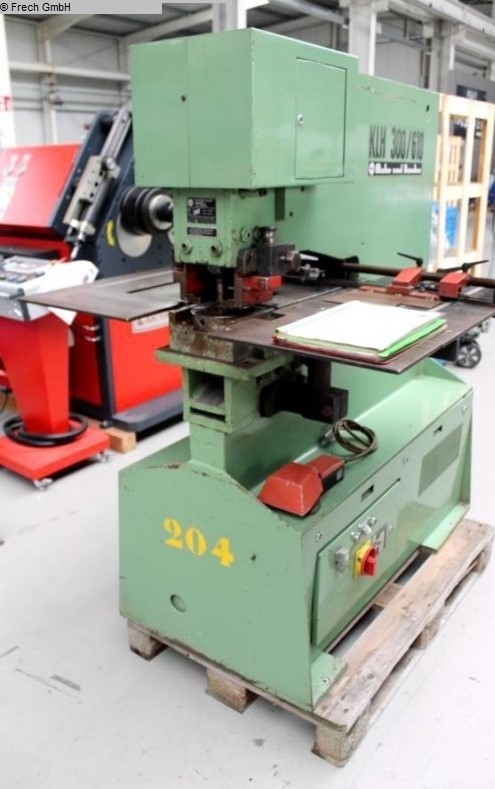

| Type | KLH 300/610 |
| Year | |
| Control | conventional |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details

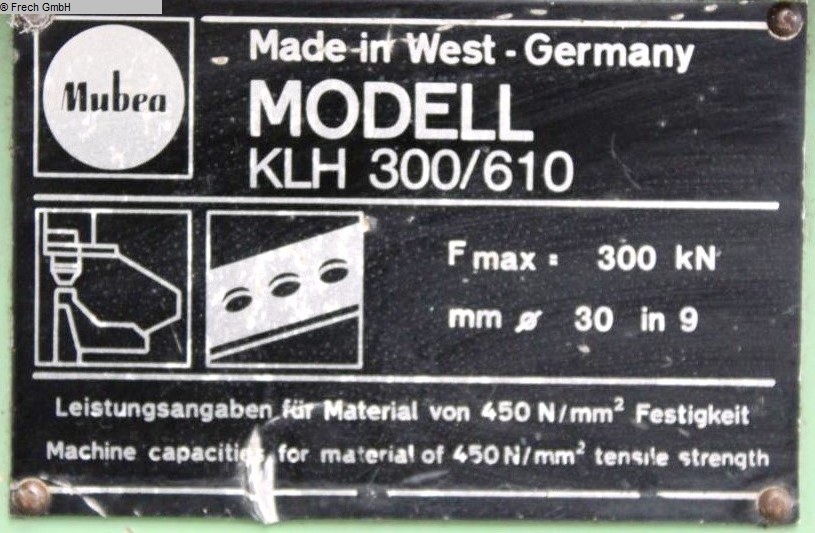

| pressure | 030 t |
| punching cross-cut in cmm | 30.0 in 9.0 mm |
| stroke | ca. 35 Hub/min |
| throat | 610 mm |
| stroke - stepless adjustable | 0 - 28.0 mm |
| oil volume | 35.0 l |
| work height max. | 1010 mm |
| total power requirement | 4.0 kW |
| weight of the machine ca. | 1200 kg. |
| range L-W-H | 1400 x 700 x 1600 mm |
** good condition (!!)
** with a lot of application tools (stamps/dies)
Furnishing:

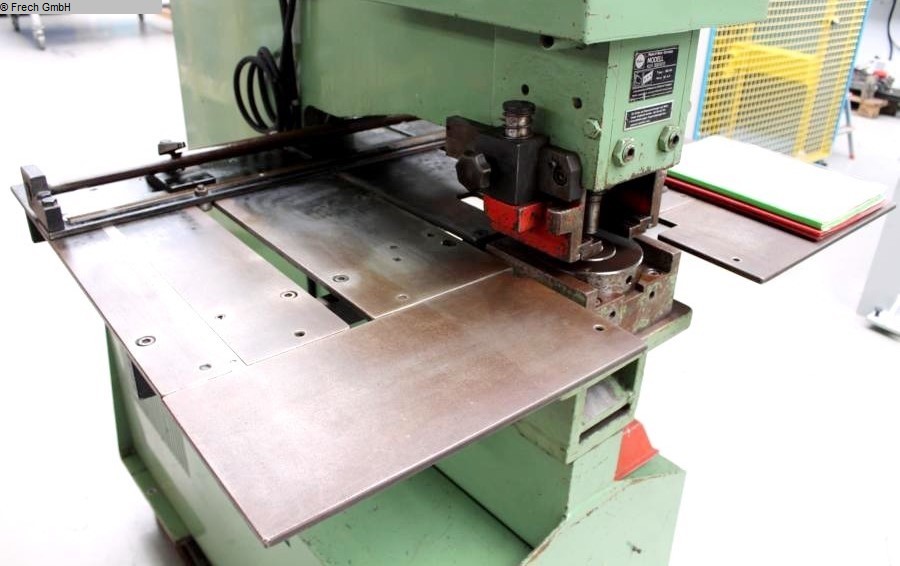

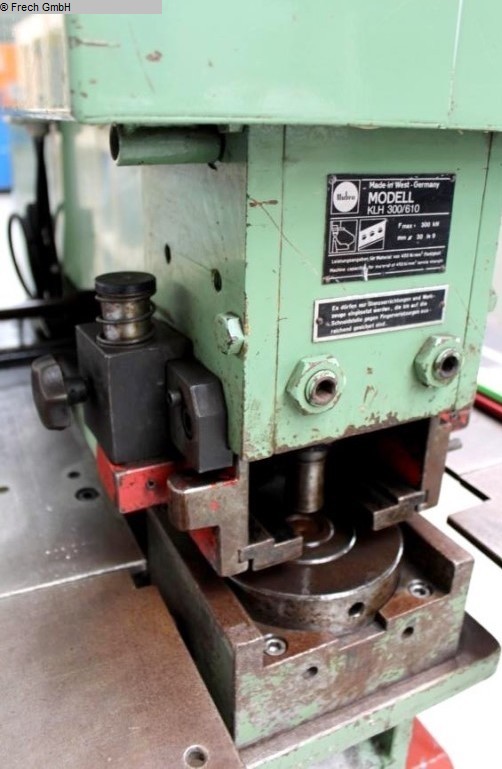

- electro-hydraulic hole punch, with large throat
- Material/sheet metal scrapers including scraper plates
- Large material support table, with adjustable depth stops
- continuous stroke adjustment
- freely movable foot switch including protective cover
- Forklift pockets for easy transport
- side storage area

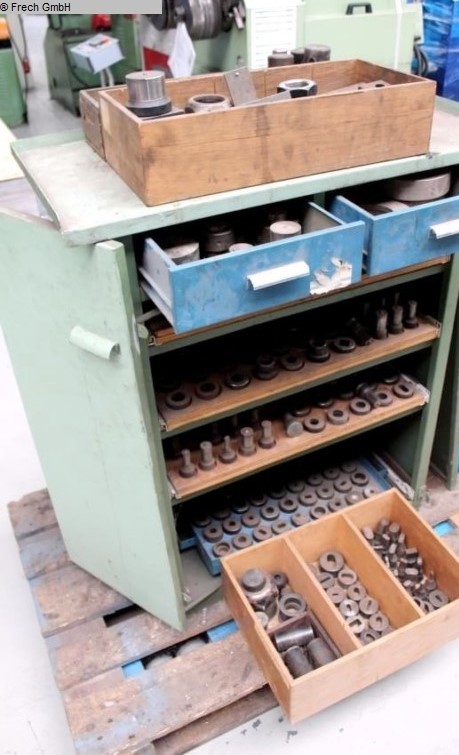

- lots of accessories + tools - including tool cabinet
- Matrix base (for special size matrices)
- Stamp holders (for special size stamps)

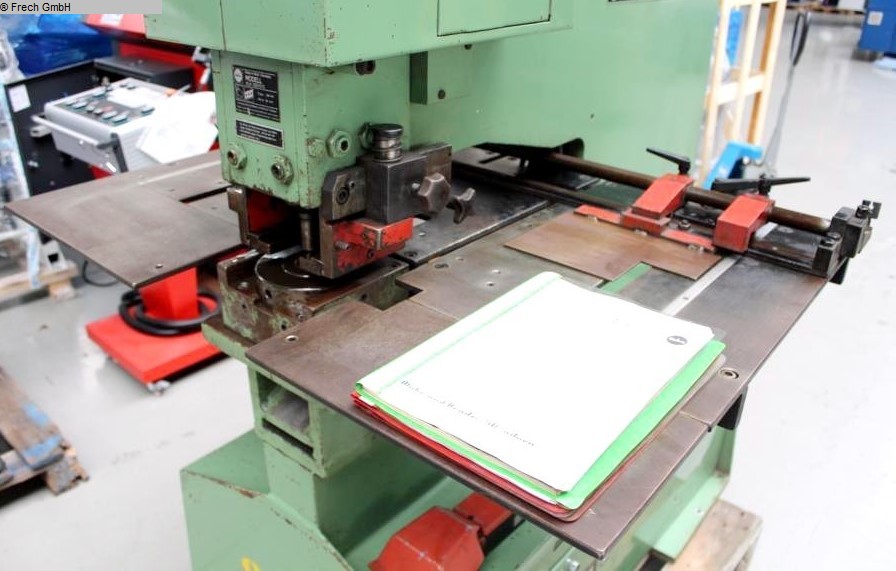

- original user manuel
Documents
no documents available
