Machine-data
| Stock no. | 1073-34196 |
| Category | Punching Press |
| Make | GEKA |
| Type | PUMA 70/E-500 |
| Year | 1991 |
| Control | conventional |
| Storage location | EXW- ex works |
| Origin | Spain |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 070 t |
| punching cross-cut in cmm | 27 in 20 mm |
| punching cross-cut in cmm | 32 in 14 mm |
| work height max. | 1060 mm |
| column arm | 500 mm |
| weight of the machine ca. | 1500 kg. |
| total power requirement | 7.0 kW |
| range L-W-H | 1550 x 1200 x 1950 mm |
** good / well-maintained condition (!!)
** New price approx. 21.000 euros
Equipment:

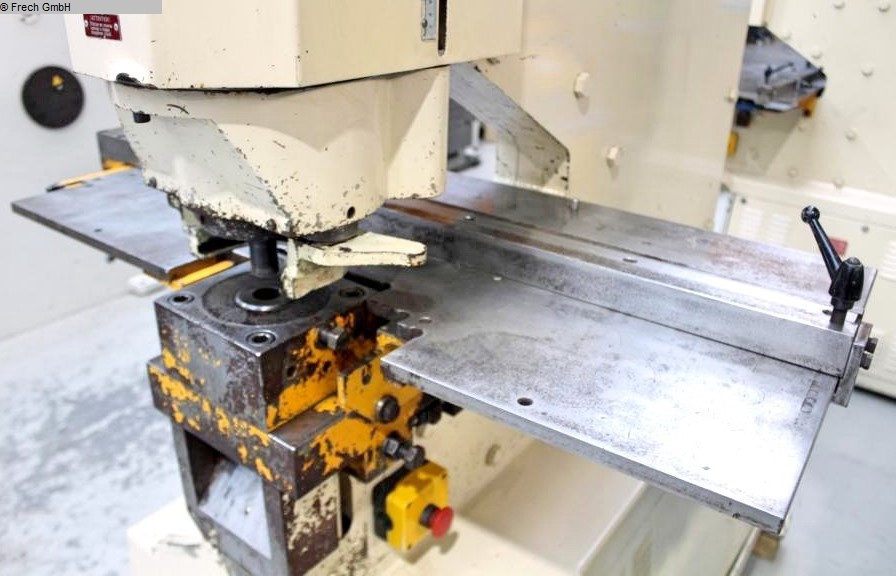

- electro-hydraulic hole punch, with large projection

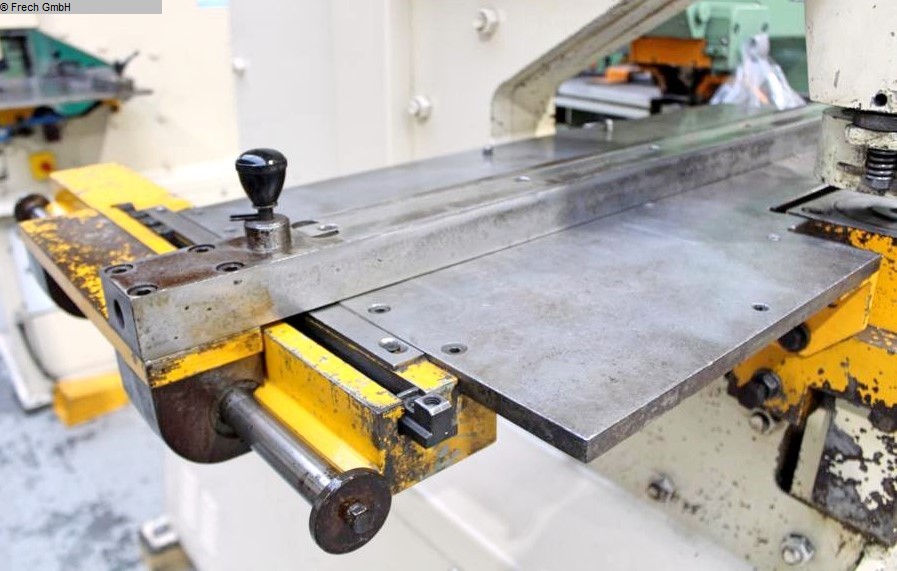

- large GEKA stop table with movable stop system
- sheet metal stripper with stripper plates
- stepless stroke adjustment
- die base
- 1x freely movable foot switch
- operating instructions (PDF)
Documents
no documents available
