Machine-data
| Stock no. | 1073-34185 |
| Category | Punching Press |
| Make | PEDDINGHAUS |
| Type | HYDRAULIC 1001 |
| Year | |
| Control | conventional |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| pressure | 100 t |
| punching cross-cut in cmm | Ø 31 in 25 mm |
| stroke | 10 - 50 mm |
| column arm | 510 mm |
| work height max. | 1100 mm |
| no. of strokes | 14 - 45 Hub/min |
| punch diameter | max. Ø 90.0 mm |
| oil volume | 103 l |
| total power requirement | 7.5 kW |
| weight of the machine ca. | 2400 kg. |
| range L-W-H | 1750 x 1020 x 2050 mm |
** maintained condition (!!)
** New price without accessories approx. 25.000 euros
** Special price on request
Furnishing:

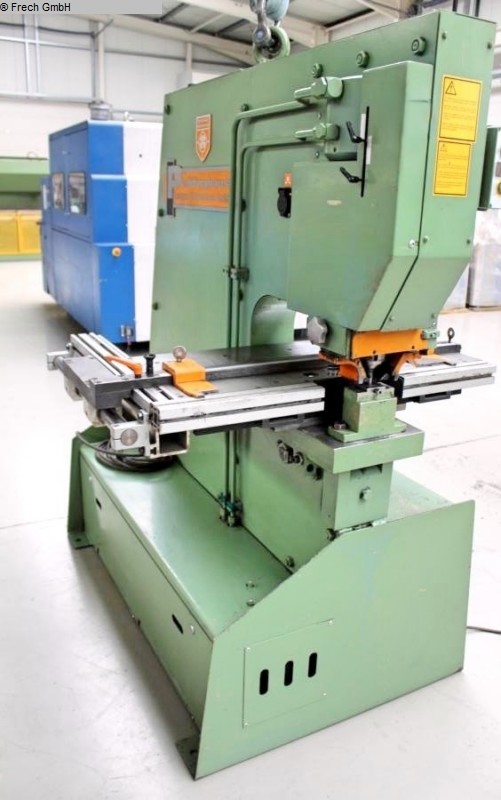

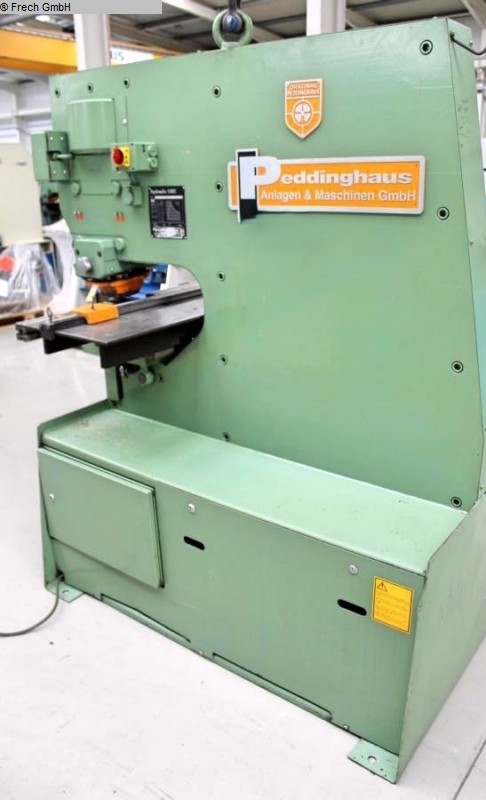

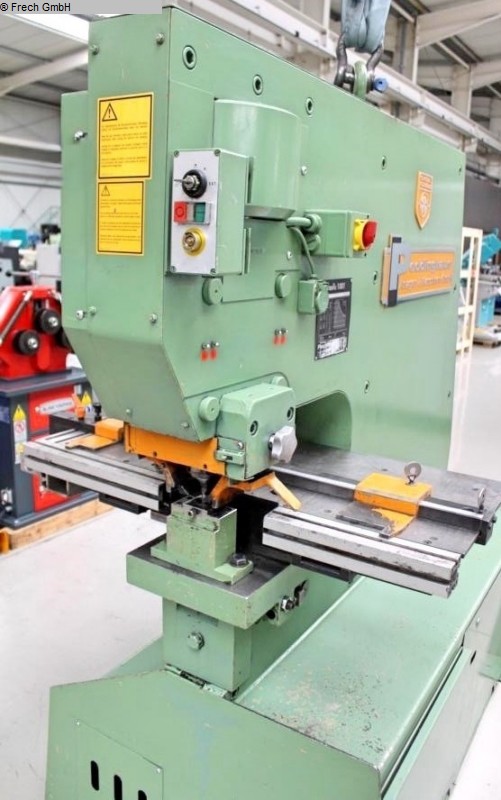

- heavy / robust electro-hydraulic hole punch, with large throat

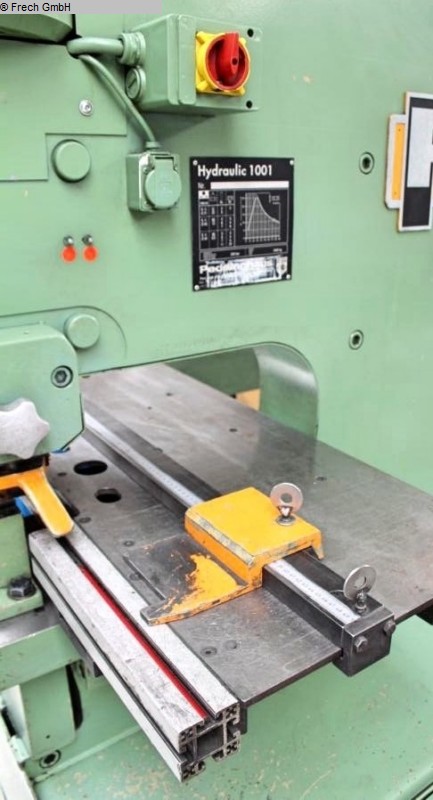

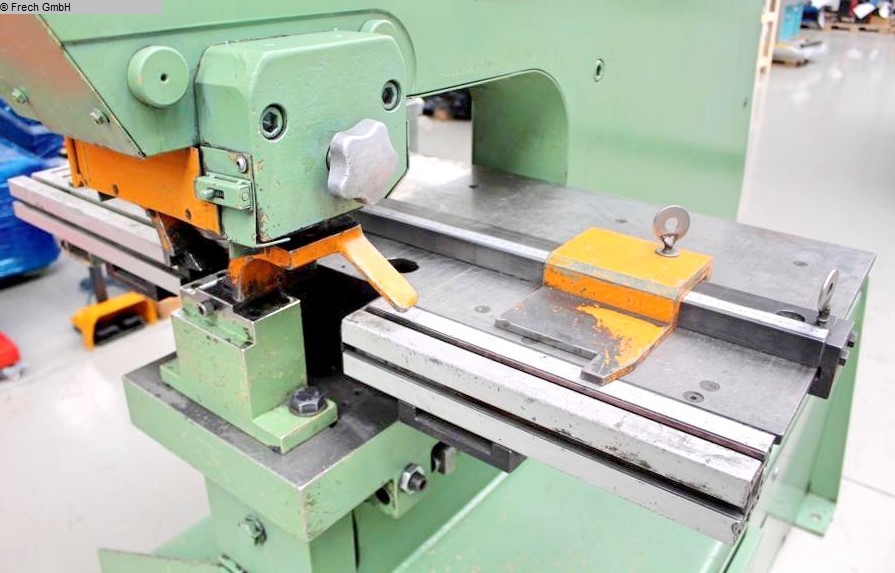

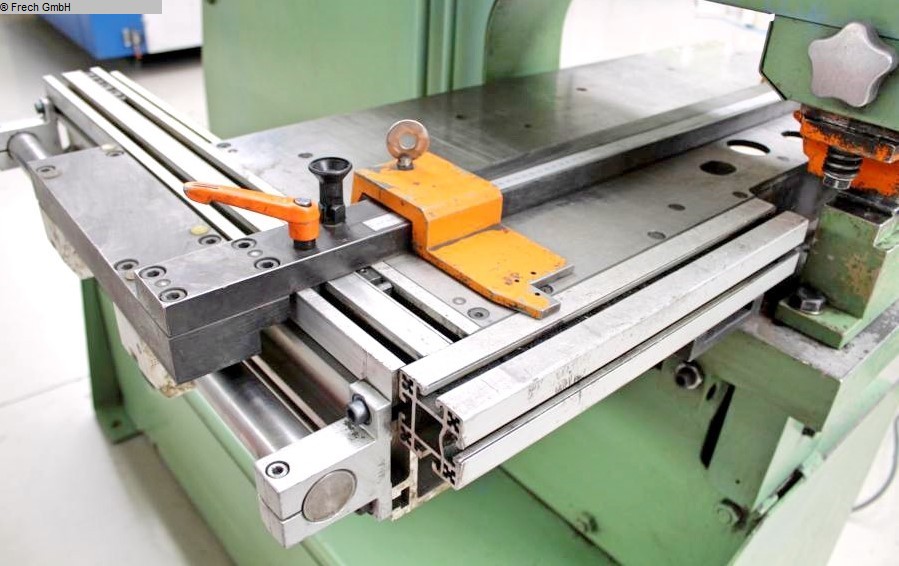

- Punching station with material/sheet metal scraper
- stepless stroke adjustment .. 10-50 mm
- freely movable foot switch including protective cover
- hydraulic low pressure finder for foot switch operation
- Crane hanging eye for easy transport
- side storage area
- Hydraulic unit, integrated
- Three-phase motor, 400 volts, 50 Hz
- original instruction manual
Documents
no documents available
