Machine-data
| Stock no. | 1073-76648 |
| Category | Folding Machine |
| Make | SCHROEDER |

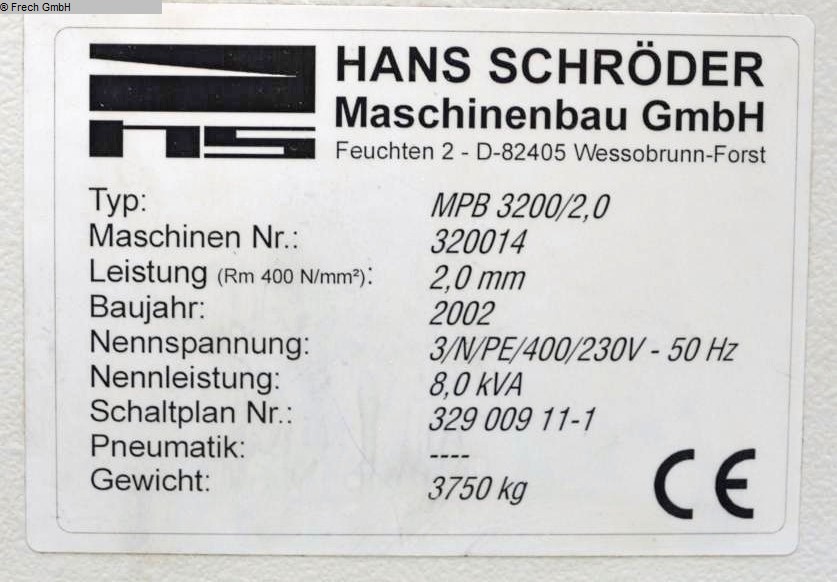

| Type | MPB 3200/2.0 |
| Year | 2002 |
| Control | CNC |
| Storage location | |
| Origin | Germany |
| Delivery time | immediately |
| Quotation | EXW- ex works (free on Truck) |
| Price | |
Technical details
| sheet width | 3220 mm |
| plate thickness | 2,00 mm ST |
| thickness at "Niro-steel" | 1,00 mm |
| upper clamping bar adjustment | 160 mm |
| adjustment speed | 100 mm/sec |
| Adjustment folding beam | 80.0 mm |
| bending speed | 120 Grad/sec |
| back stop - adjustable | 1.0 - 1.500 mm |
| adjustment speed | 300 mm/sec |
| compressed air | 6.0 bar |
| work height max. | 869 mm |
| control | POS 2000 |
| voltage | 400 V |
| total power requirement | 10.4 kW |
| weight | 5950 kg |
| range L-W-H | 4565 x 2950 x 2163 mm |
** current list price ~ 150.000 Euro
** with excellent features (!!)
Features:
- CNC electromotive universal swing bending machine
* High-precision mechanics with modern control technology
* For individual and series production
* Robust high-speed machine with high axis speeds
* Torsion-resistant welded construction

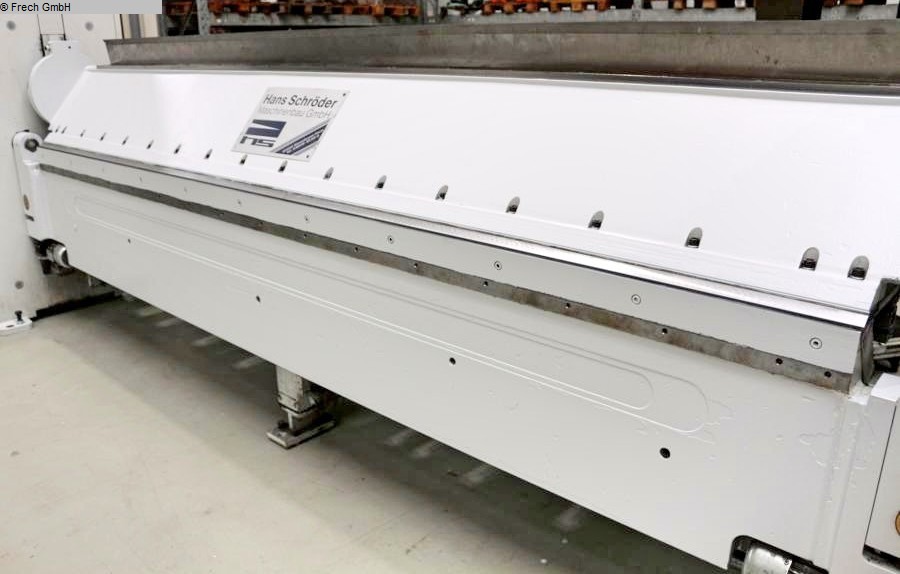

- Rotating upper beam / as an automatic tool changing system
* With 2 tool stations (sharp and goosefoot bending rails)
* Reduces setup and idle times
* Eliminates time-consuming tool changes and adjustments

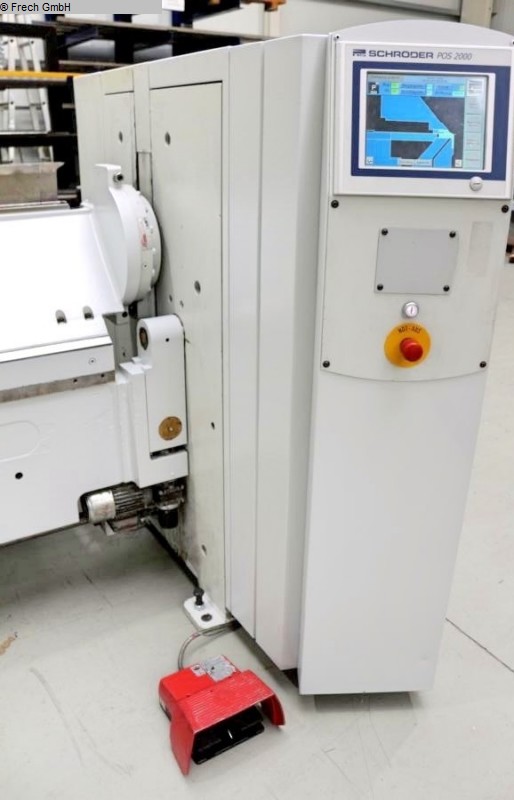

- SCHRÖDER CNC control model "POS 2000"
* Control panel front right (operable with PC mouse)
* Color display
* USB interface
* Automatic cutting calculation
* Material and tool library
* Dimensionally accurate bending simulation
* Windows XP operating system
* Swiveling control panel, front right

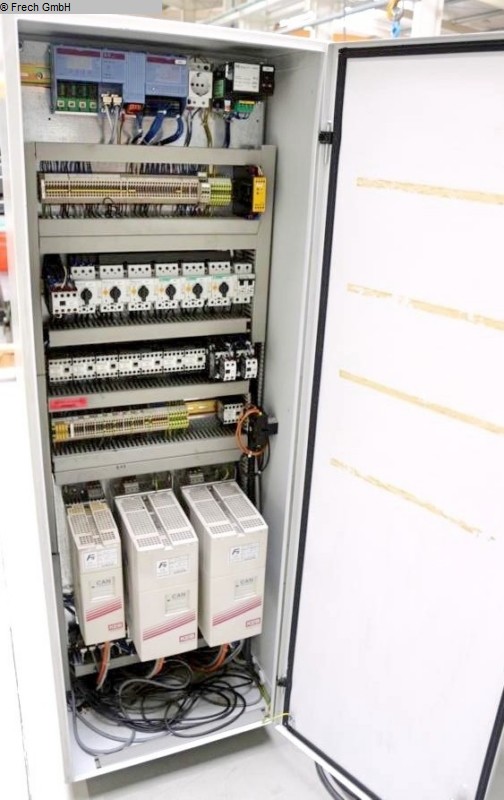

- Servo-inverter-controlled drives
* For bending/upper jaw & electric backgauge
- CNC electro-motorized lower jaw adjustment
- CNC electro-motorized backgauge
* Travel speed 300 mm/sec.

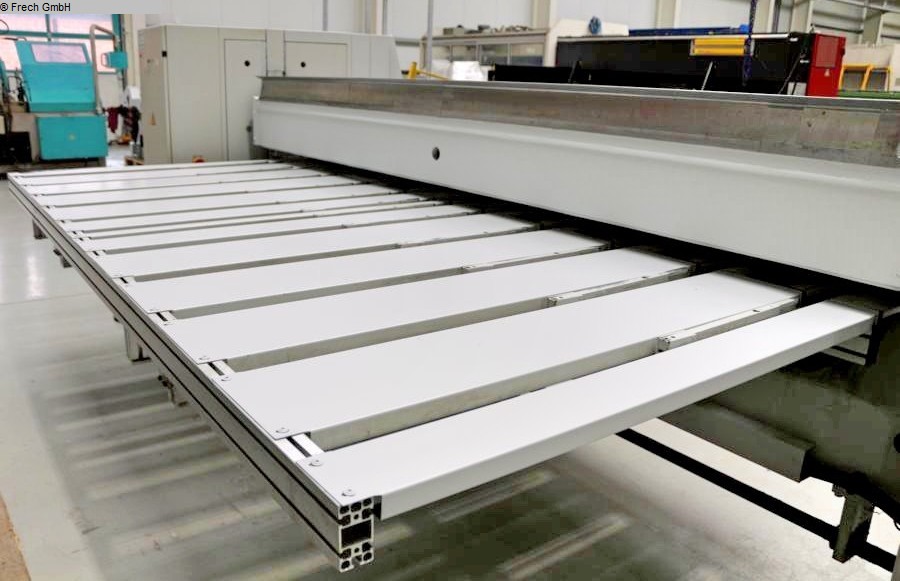

* With rear sheet metal support surface
- 1x freely movable double foot switch
- Operating instructions
** Optional accessories included:
- 1x 30° upper tool sharpening rail
- 1x split set of upper tool gouge rail
- 2x bending rails
