Machine-data
| Stock no. | 1073-2000 |
| Category | Stretch Drawing Punching Press |

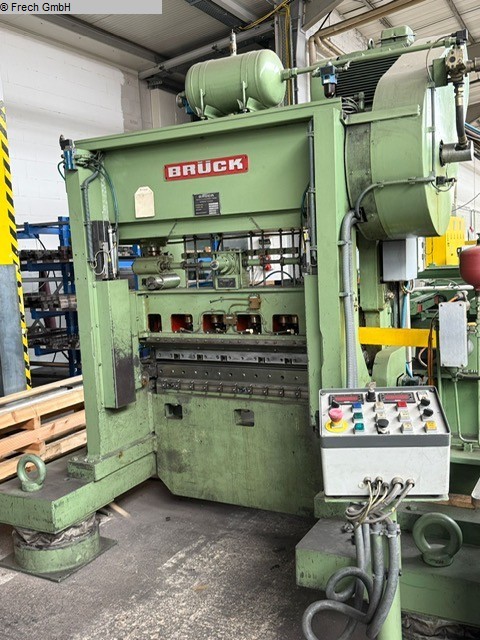

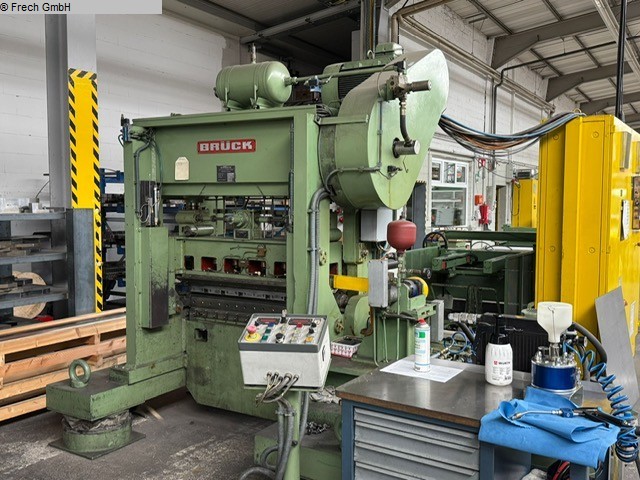

| Make | BRÜCK |
| Type | STM 40-1000 |
| Year | 1994 |

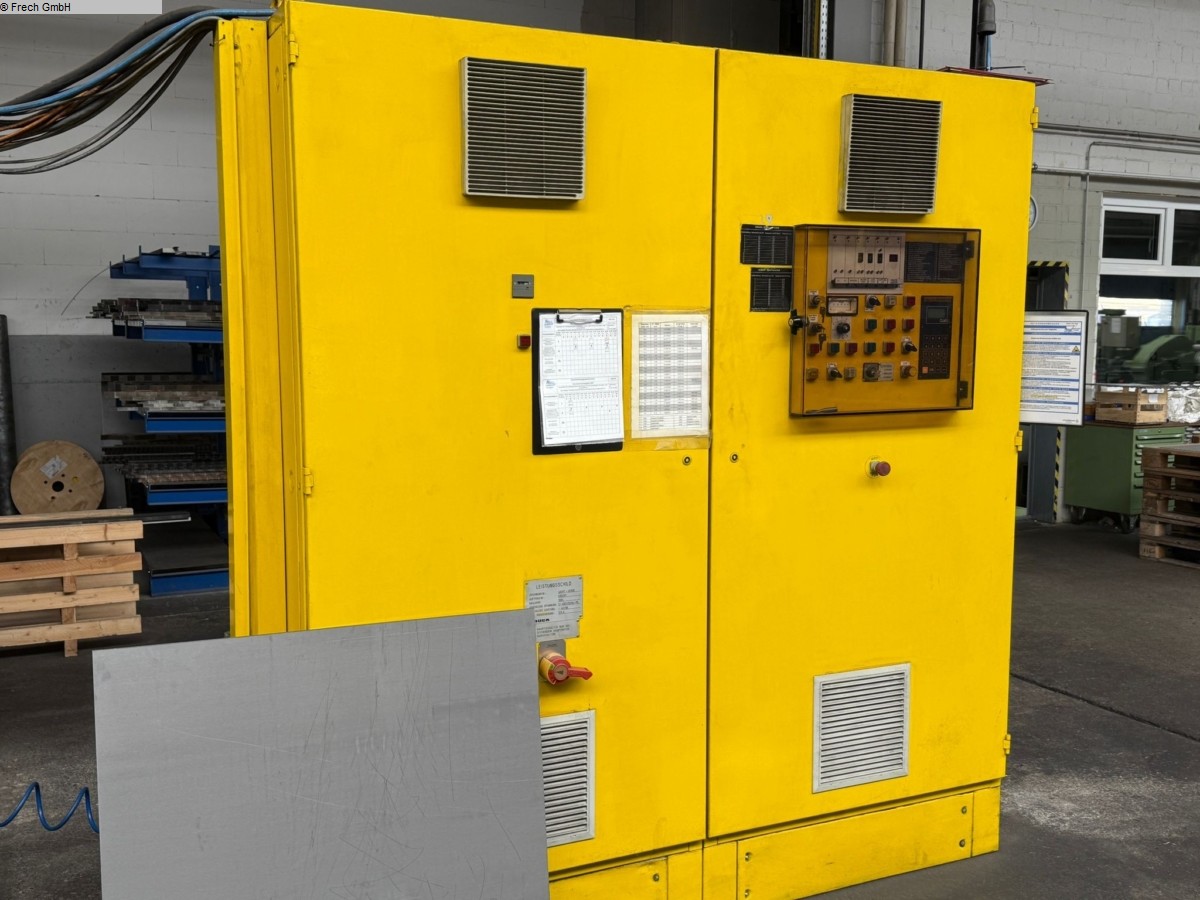

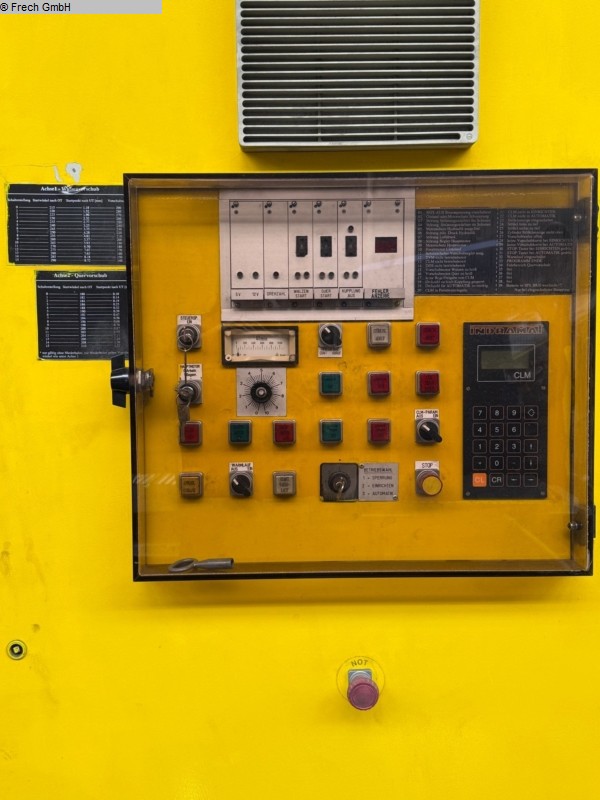

| Control | conventional |
| Storage location | EXW- ex works |
| Origin | Germany |
| Delivery time | after arrangement |
| Quotation | EXW- ex works |
| Price | |
Technical details
| pressure | 040 t |
| distance between columns | 1000 mm |
Working width 1000 mm
Punching force 40 tons
Mesh length min. 2 mm - max. 28 mm
Mesh width min. 1 mm - max. 12 mm
Max. sheet thickness: aluminum 2.0 mm
steel 2.0 mm
stainless steel 1.5 mm
Max. stroke rate 800/min.
Documents
no documents available
